UltraView K43 - Professional and Versatile 43" 4K LED Monitor
K43
Monitor Types:
Standard Aluminum
Front Bezel
NEMA 4 / IP65
Protection
Aluminum
Front Cover
Universal
Open Frame
| Model | Aspect Ratio | Screen Size | Brochure |
|---|---|---|---|
Standard Aluminum Front Bezel | |||
| AP-K55 | 16:9 (4K / 1080p) | 55" |  |
| AP-K43 | 43" | | |
| AP-K32 | 32" | | |
| AP-K23 | 23" | | |
| AP-K17 | 17" | | |
| AP-K15 | 15" | | |
| AP-F21 | 16:9 (1080p) | 21" | |
| AP-F17 | 17" | | |
| AP-F15 | 15" | | |
| AP-X24 | 16:10 (1920x1200) | 24" | |
| AP-X17 | 17" | | |
| AP-W19 | 16:10 (1440x900) | 19" | |
| AP-20 | 4:3 (1600x1200) | 20" | |
| AP-19 | 4:3 (1280x1024) | 19" | |
| AP-17 | 17" | | |
| AP-15 | 4:3 (1024x768) | 15" | |
| AP-12 | 4:3 (800x600) | 12" | |
| AP-10 | 10" | | |
| AP-8 | 8" | | |
| AP-6 | 4:3 (640x480) | 6.5" | |
Standrd Aluminum Front Bezel with | |||
| NAP-K55 | 16:9 (4K / 1080p) | 55" | |
| NAP-K43 | 43" | | |
| NAP-K32 | 32" | | |
| NAP-K23 | 23" | | |
| NAP-K17 | 17" | | |
| NAP-K15 | 17" | | |
| NAP-F21 | 16:9 (1080p) | 21" | |
| NAP-F17 | 17" | | |
| NAP-F15 | 15" | | |
| NAP-X24 | 16:10 (1920x1200) | 24" | |
| NAP-X17 | 17" | | |
| NAP-W19 | 16:10 (1440x900) | 19" | |
| NAP-20 | 4:3 (1600x1200) | 20" | |
| NAP-19 | 4:3 (1280x1024) | 19" | |
| NAP-17 | 17" | | |
| NAP-15 | 4:3 (1024x768) | 15" | |
| NAP-12 | 4:3 (800x600) | 12" | |
| NAP-10 | 10" | | |
| NAP-8 | 8" | | |
| NAP-6 | 4:3 (640x480) | 6.5" | |
Aluminum Front Cover | |||
| DP-K55 | 16:9 (4K / 1080p) | 55" | |
| DP-K43 | 43" | | |
| DP-K32 | 32" | | |
| DP-K23 | 23" | | |
| DP-K17 | 17" | | |
| DP-K15 | 17" | | |
| DP-F21 | 16:9 (1080p) | 21" | |
| DP-F17 | 17" | | |
| DP-F15 | 15" | | |
| DP-X24 | 16:10 (1920x1200) | 24" | |
| DP-X17 | 17" | | |
| DP-W19 | 16:10 (1440x900) | 19" | |
Universal Open Frame | |||
| DP-K55 | 16:9 (4K / 1080p) | 55" | |
| OP-K43 | 43" | | |
| OP-K32 | 32" | | |
| OP-K23 | 23" | | |
| OP-K17 | 17" | | |
| OP-K15 | 17" | | |
| OP-F21 | 16:9 (1080p) | 21" | |
| OP-F17 | 17" | | |
| OP-F15 | 15" | | |
| OP-X24 | 16:10 (1920x1200) | 24" | |
| OP-X17 | 17" | | |
| OP-W19 | 16:10 (1440x900) | 19" | |
UltraView K43 series 43" 4K UHD LED monitor supports 3840 x 2160 resolution, 4 times the resolution of FHD. True 10-bit input enables 1.07 billion colors to be presented, achieving ultimate picture quality. Improved energy efficiency and fan-less architecture provides professional-use durability and around-the-clock operation.
K43 is more than just a standalone monitor. UltraView has a variety of embedded modules including HDMI Decoder, HDMI Extender, HDMI Quad display Extender, Multi-Monitor OSD Controller, SDI Input and Portrait Mode Kit. The embedded modules give you the ability of video remote management and transmission for multiple monitors over network.
As a versatile 4K monitor, K43 is meticulously designed to meet professional and environmental demands including Sunlight readable brightness, IP54 Front protection, Multi-touch, Anti-reflective/Vandal proof glass, DC power input, Brightness dimming and Mounting kit for Overhead tilted wall-mount, Panel-mount, VESA-mount, Universal-mount and Desktop stand.
With over 22 years' production experience, the K43 structure is well-engineered and manufactured by our own CNC facilities and team of experts to ensure its ruggedness, mobility and quality, as well as being suitable for harsh environment applications. The structure can be customized if required to facilitate monitor installation. Our knowledgeable engineers are able to provide frame customization for specific dimensions, color, metal treatment, screen printing, bezel and mounting.
UltraView K43 Features & Benefits
- 43" LED, 3840 x 2160 native UHD resolution
- 1920 x 1080 & 1920 x 1200 resolution support
- 1.07 billion colors ( 10-bit ) / 350 cd/m2 brightness ( option for 1500 cd/m2 )
- PIP Sub-screen & PBP Dual-screen viewing efficiency
- Display port 1.2 + HDMI 1.4 + HDMI 2.0 video input
- Video decoding capability up to 1080p ( option )
- Rugged structure ensures high mobility
- IP65 front protection ( NAP option )
- 1500 cd/m2 sunlight readable panel available ( option )
- Professional-use durability & around-the-clock operation
- 2-year standard warranty ( upgradable up to 5 years )

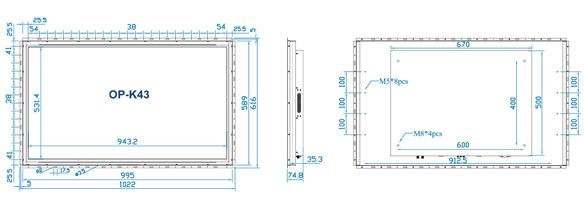

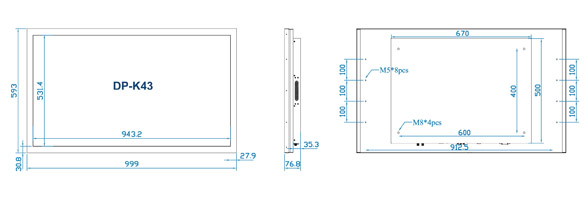

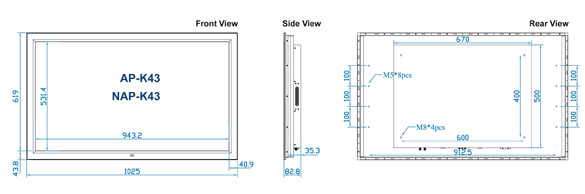

UltraView K43 Layout
UltraView K43 Models
Standard Brightness (350 cd/m2)
8mm aluminum front bezel
AP-K43
8mm aluminum front bezel
NEMA 4 / IP65 front protection
NAP-K43
Aluminum front cover
DP-K43
Universal open frame
OP-K43
MP-K43
Industrial Display Kit
- 4K 43" LED
- LCD controller
- AC power
Sunlight Readable Brightness (1,500 cd/m2)
8mm aluminum front bezel
HAP-K43
8mm aluminum front bezel
NEMA 4 / IP65 front protection
HNAP-K43
Aluminum front cover
HDP-K43
Universal open frame
HOP-K43
UltraView K43 Options
Video Management & Transmission over Network open_in_browser
- Embedded HDMI Decoder Module 1080p over IP
- Embedded HDMI Extender Module 1080p over network
- Embedded HDMI Quad Display Module 1080p over network
- Embedded HDMI Quad Display Extension Module
- Embedded Multi Monitor OSD Control Module over serial
- Embedded 3G / HD / SD-SDI Input Module
- Embedded Portrait Mode Module
- Embedded Brightness Dimming Module
Bezel & Frame Customization
- Dimension
- Color & Treatment
- Screen Printing
- Stainless Steel Bezel
Touchscreen & Glass Protection open_in_browser
- Infrared 10-point Touch
- Anti-reflective Glass
- Vandal Proof Glass
DC Power open_in_browser
- 24V / 48V / 125V DC ( 150 Watt )
Mounting
- VESA mount, 600 x 400 mm ( bundled )
- Universal mount ( ready for OP model )
- Overhead tilted wall-mount ( option )
- Desktop stand ( option )
UltraView K43 Options - Video Management & Transmission over Network

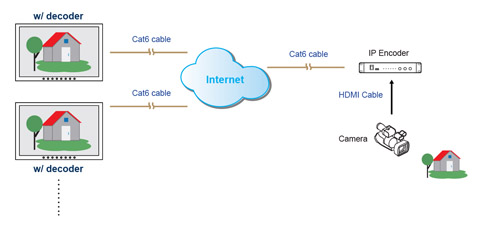

Embedded HDMI Decoder Module 1080p over IP
- Decodes RTSP, RTMP, UDP, HTTP, HLS protocols
- Supports video resolutions up to 1080p / 60Hz
- Unicast and multicast support
- Operates on standard 1000Mb Ethernet networks
- Built-in Web UI for configuration and control
- Excellent image quality with very low delay
Part no.
Embedded HDMI Decoder Module : UV-DE100F
Standalone HDMI Encoder : UV-EN100F

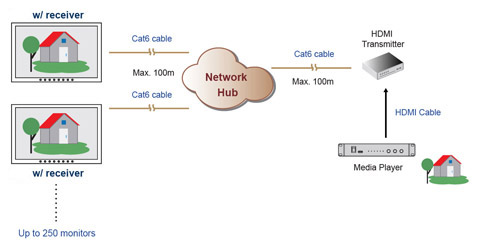

Embedded HDMI Receiver Module 1080p
- Extends the HDMI signal over a single Cat5/6 cable
- Supports video resolutions up to 1080p / 60Hz
- One to one just via Cat5/6 cable
- One to multi via network hub and Cat5/6 cable
- 100m maximum Cat5/6 cable distance
- Supports bi-directional IR communication
- High Speed HDMI 1.3 and HDCP 1.1 compliant
- No software or drivers required
Part no.
Embedded HDMI Receiver Module : UV-R100F
Standalone HDMI Transmitter : UV-T100F

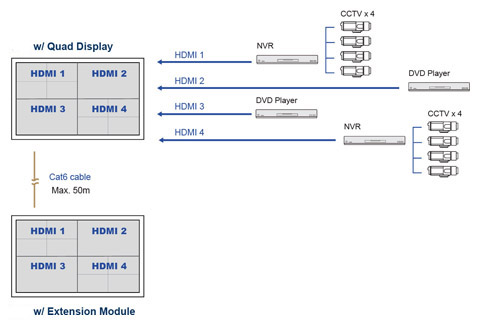

Embedded HDMI Quad Display Module 1080p
- Allows 4 x HDMI inputs to be monitored simultaneously
- Quad split, panel left and full screen monitoring modes
- High speed HDMI 1.3a and HDCP 1.2 compliant
- Supports video resolutions up to 1080p / 60Hz
- Supports Scaler Up and Down function
- Control via local front panel and IR remote
Part no.
Embedded HDMI Quad Display Module : QD-1080
Embedded Quad Display Extension Module : QD-E1080

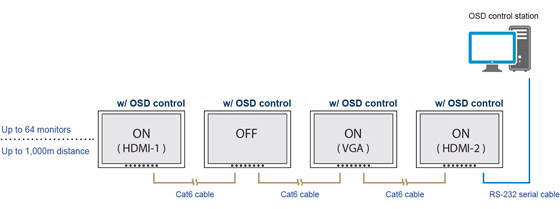

Embedded Multi Monitor OSD Control Module over serial
- Remote control the monitor OSD via RS-232C serial interface
- Daisy chain up to 64 monitors via Cat5/6 cable
- Individual ID for individual monitor OSD settings
- Power ON or OFF monitor
- Adjust brightness & audio
- Switch video sources
Part no.
Embedded Multi Monitor OSD Control Module : MCS

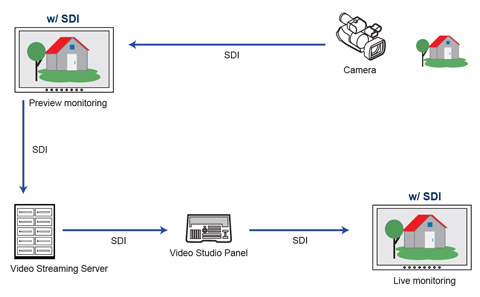

Embedded 3G / HD / SD-SDI Input Module
- Intelligent SDI monitoring with broadcast quality scopes
- Supports multi-rate 3G / HD / SD-SDI format
- Provides input to output loop-through capability
- Auto format sensing & selection
Part no.
Embedded 3G / HD / SD-SDI Input Module : SDI
Embedded Portrait Mode Module
- Provides users with a rotation feature ( 0, 90, 180 & 270 orientation ) without frame delay via OSD
- Allows distortion-free display of content in various orientations
- Creates new application opportunities
Part no.
Embedded Portrait Mode Module : AD4.0-P
Embedded Auto Brightness Dimming Module
- Brightness changes according to its ambient brightness
- Its brightness change causes 10% increase or decrease
Part no.
Embedded Brightness Auto Dimming Module : DA-01
Embedded Manual Brightness Dimming Knob
- Easy-to-use IP54 dimming knob on the front panel
- One click causes 2% brightness increase or decrease
- Brightness adjustment from 0% to 100%
Part no.
Brightness Dimming Knob : DS-01
UltraView K43 Resources & Downloads
K43 Datasheet (PDF)
UltraView K43 Specifications
| LCD Panel | Standard | Sunlight Readable |
|---|---|---|
| Brightness (cd/mē) | 350 | 1,500  |
| Contrast ratio (typ.) | 1000 : 1 | 1100 : 1 |
| MTBF (hrs) | 30,000 | 50,000 |
| Panel size (diagonal) | 43-inch widescreen TFT color LCD | |
| Native resolution | 3840 x 2160 | |
| Colors | 1.07 Billion, 10-bit | |
| Viewing angle (L/R/U/D) | 89/89/89/89 | |
| Response time (ms) | 12 | |
| Dot pitch (mm) | 0.2451 | |
| Display area (mm) | 941.184H x 529.416V | |
| Surface treatment | Anti-glare | |
| Surface hardness | 2H | |
| Backlight type | LED | |
| Video | |
|---|---|
| Digital : Display port HDMI | DP 1.2 / HDCP 1.3 HDMI 2.0 / HDCP 2.2 HDMI 1.4 / HDCP 1.4 |
| Audio | |
|---|---|
| Audio output : Connector Resistance / Power level | 3.5mm stereo jack 30kΩ / 2.8V |
| Speaker Dual stereo speaker | 10W x 2 |
| Power | |||
|---|---|---|---|
| Input | Auto-sensing 100 to 240VAC, 50 / 60Hz | ||
| Consumption : Screen on Power saving mode Power button off | Max. 68W Max. 9W Max. 2W | Max. 220W Max. 9W Max. 2W | |
| Environment | |
|---|---|
| Operating temp. | 0 to 55°C |
| Storage temp. | -20 to 60°C |
| Operating humidity | 20~90%, non-condensing |
| Storage humidity | 5 ~90%, non-condensing |
| Operating altitude | 16,000 ft |
| Non-operating altitude | 40,000 ft |
| Shock | 10G acceleration ( 11ms duration ) |
| Vibration | 10~300Hz 0.5G RMS random vibration |
| Design | AP-K43 | NAP-K43 | DP-K43 | OP-K43 |
|---|---|---|---|---|
| Protection | 8mm front bezel | NEMA 4 / IP65 | front cover | open frame |
| Front panel | Black, RAL 9005 | - | ||
| Rear casing | Black, RAL 9005 | |||
| Mounting | AP-K43 / NAP-K43 | DP-K43 | OP-K43 |
|---|---|---|---|
| VESA mount | 600 x 400 mm | 600 x 400 mm | 600 x 400 mm |
| Universal mount | - | - | ready |
| Overhead tilted wall mount | option | option | - |
| Desktop stand | option | option | - |
| Physical | AP-K43 / NAP-K43 | DP-K43 | OP-K43 | |
|---|---|---|---|---|
| Product (W x D x H) : mm inch | 1025 x 82.8 x 619 40.4 x 3.1 x 24.4 | 999 x 76.8 x 593 39.3 x 3 x 23.3 | 1322 x 74.8 x 616 40.2 x 2.9 x 24.3 | |
| Packing (W x D x H) : mm inch | 1122 x 199 x 712 44.2 x 7.8 x 28 | 1122 x 199 x 712 44.2 x 7.8 x 28 | 1122 x 199 x 712 44.2 x 7.8 x 28 | |
| Net weight | 31.7 kg / 69.7 lb | 35.7 kg / 78.5 lb | 29.0 kg / 63.8 lb | 26.2 kg / 57.6 lb |
| Gross weight | 37.5 kg / 82.5 lb | 41.5 kg / 91.3 lb | 34.8 kg / 76.6 lb | 32.0 kg / 70.4 lb |
| Chassis color | Dark | |||
| Chassis materials | Aluminum | |||
| Compliance | |
|---|---|
| EMC | FCC & CE certified |
| Safety | CE / LVD certified |
| Environment | RoHS2 & REACH compliant |
| Resolution Format | ||
|---|---|---|
| Display port input | PC signal | 3840 x 2160 x 60Hz 1920 x 1080 x 60Hz 1600 x 1200 x 60Hz 1360 x 768 x 60Hz 1280 x 1024 x 60 / 75Hz 1280 x 768 x 60Hz 1024 x 768 x 60 / 70 / 75Hz 800 x 600 x 60 / 72 / 75Hz 720 x 400 x 70Hz 640 x 480 x 60 / 72 / 75Hz |
| Audio signal | 2ch Linear PCM | |
| HDMI input | HDMI 2.0 | 3840 x 2160 x 60Hz |
| HDMI 2.0 / 1.4 | 3840 x 2160 x 30Hz 1920 x 1080 x 50 / 60Hz ( 1080p ) 1920 x 1080 x 25 / 30Hz ( 1080i ) 1280 x 720 x 50 / 60Hz ( 720p ) 720 x 480 x 50 / 60Hz ( 576p / 480p ) | |
| Audio signal | 2ch Linear PCM | |
