UltraView X17 - Professional and Versatile 17" 1920 x 1200 LED Monitor

X17

$1,175.00
Aspect Ratio: 16:10 (1920x1200)
Screen Size: 17 in
FREE Shipping on orders over $100

UltraView X17 series 17" WUXGA LED monitor supports 1920 x 1200 resolution. 16.7 million colors achieve optimal picture quality. Improved energy efficiency and fan-less architecture provides professional-use durability and around-the-clock operation.

X17 is more than just a standalone monitor. UltraView has a variety of embedded modules including Multi-Monitor OSD Controller and SDI Input. The embedded modules give you the ability of video remote management and transmission for multiple monitors over network.

As a versatile 1080p monitor, X17 is meticulously designed to meet professional and environmental demands including IP54 Front protection, Multi-touch, Anti-reflective/Vandal proof glass, DC power input, Brightness dimming and Mounting kit for Panel-mount, VESA-mount, Universal-mount and Desktop stand.

With over 22 years' production experience, the X17 structure is well-engineered and manufactured by our own CNC facilities and team of experts to ensure its ruggedness, mobility and quality, as well as being suitable for harsh environment applications. The structure can be customized if required to facilitate monitor installation. Our knowledgeable engineers are able to provide frame customization for specific dimensions, color, metal treatment, screen printing, bezel and mounting.

UltraView X17

See Detailed KVM Layout

UltraView X17 Features & Benefits

  • 16.2" LED, 1920 x 1200 WUXGA native resolution
  • 16.7 M colors ( 8-bit ) / 300 cd/m2 brightness
  • PIP Sub-screen & PBP Dual-screen viewing efficiency
  • HDMI 1.3 + DVI-D + S-Video + BNC + VGA video input
  • Rugged structure ensures high mobility
  • IP65 front protection ( NAP option )
  • Professional-use durability & around-the-clock operation
  • 2-year standard warranty ( upgradable up to 5 years )

UltraView X17 Models

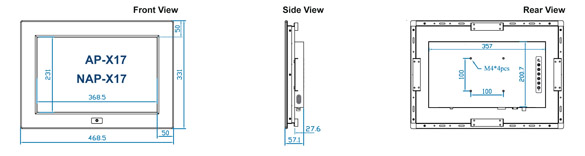

6mm aluminum front bezel

AP-X17
AP-X17

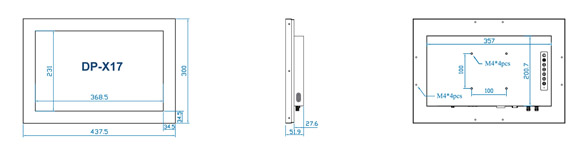

Aluminum front cover

DP-X17
DP-X17

6mm aluminum front bezel NEMA 4 / IP65 front protection

NEMA 4 / IP65 front protection

NAP-X17
NAP-X17

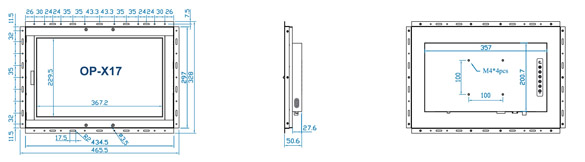

Universal open frame

OP-X17
OP-X17

UltraView X17 Options

Video Management & Transmission over Network open_in_browser

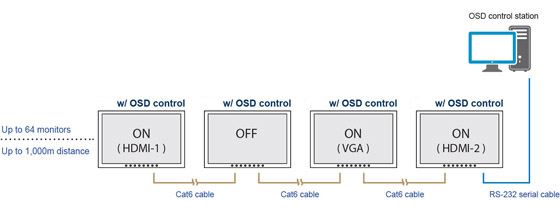

  • Embedded Multi Monitor OSD Control Module over serial

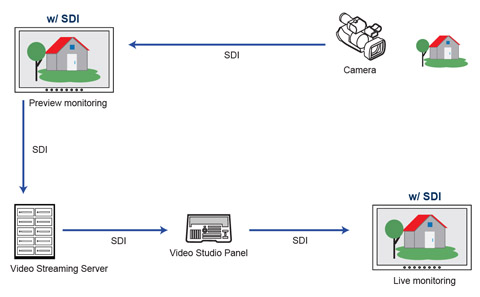

  • Embedded 3G / HD / SD-SDI Input Module
  • Embedded Brightness Dimming Module

Bezel & Frame Customization

  • Dimension
  • Color & Treatment
  • Screen Printing
  • Stainless Steel Bezel

Touchscreen & Glass Protection open_in_browser

  • 5-Wire Resistive 1-point Touch
  • Capacitive 1-point Touch
  • Anti-reflective Glass
  • Vandal Proof Glass

DC Power open_in_browser

  • 12V / 24V / 48V / 125V DC ( 50 Watt )

Mounting

  • VESA mount, 100 x 100 mm ( bundled )
  • Universal mount ( ready for OP model )
  • Desktop stand ( option )
  • Panel mount ( bundled )

UltraView X17 Resources & Downloads

Austin Hughes UltraView X17 Resources X17 Datasheet (PDF)
X17 Manual (PDF)

UltraView X17 Specifications

LCD Panel
Panel size (diagonal) 16.2-inch widescreen TFT color LCD
Native resolution 1920 x 1200
Brightness (cd/mē) 300
Contrast ratio (typ.) 800 : 1
Colors 16.7 M, 8-bit
Viewing angle (L/R/U/D) 89/89/89/89
Response time (ms) 30
Dot pitch (mm) 0.191
Display area (mm) 343.8.2H x 214.9V
Surface treatment Anti-glare, Hard-coating
Surface hardness 3H
Backlight type LED
MTBF (hrs) 20,000
Video
Digital : DVI HDMI
DVI-D single link HDMI 1.3 / HDCP 1.3
Analog : VGA Composite ( BNC ) S-Video ( 4-pin )
Analog 0.7Vp-p NTSC & PAL NTSC & PAL
Audio
Audio input : Connector Impedance / Power level
3.5mm stereo jack 30kΩ / 750mV
Audio output : Connector Resistance / Power level
3.5mm stereo jack 30kΩ / 2.8V
Speaker Dual stereo speaker
2W x 2
*When the audio output is connected, speaker output is OFF
Power
Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption : Screen on Power saving mode Power button off
Max. 34W Max. 4W Max. 1W
Environment
Operating temp. 0 to 55°C
Storage temp. -20 to 60°C
Operating humidity 20~90%, non-condensing
Storage humidity 5 ~90%, non-condensing
Operating altitude 16,000 ft
Non-operating altitude 40,000 ft
Shock 10G acceleration ( 11ms duration )
Vibration 10~300Hz 0.5G RMS random vibration
Design AP-X17 NAP-X17 DP-X17 OP-X17
Protection 6mm front bezel NEMA 4 / IP65 front cover open frame
Front panel Black, RAL 9005 -
Rear casing Black, RAL 9005
Mounting AP-X17 / NAP-X17 DP-X17 OP-X17
VESA mount 100 x 100 mm 100 x 100 mm 100 x 100 mm
Universal mount - - bundled
Desktop stand option option -
Panel mount bundled - -
Physical AP-X17 / NAP-X17 DP-X17 OP-X17
Product (W x D x H) :
mm
inch 		468.5 x 57.1 x 331
18.4 x 2.2 x 13 		437.5 x 51.9 x 300
17.2 x 2 x 11.8 		465.5 x 50.6 x 328
18.3 x 2 x 12.9
Packing (W x D x H) :
mm
inch 		615 x 113 x 523
24.2 x 4.4 x 20.6 		615 x 113 x 523
24.2 x 4.4 x 20.6 		615 x 113 x 523
24.2 x 4.4 x 20.6
Net weight 4.9 kg / 10.8 lb 4.9 kg / 10.8 lb 4.4 kg / 9.7 lb 3.8 kg / 8.4 lb
Gross weight 7.7 kg / 16.9 lb 7.7 kg / 16.9 lb 7.1 kg / 15.6 lb 6.5 kg / 14.3 lb
Chassis color Dark
Chassis materials Aluminum
Compliance
EMC FCC & CE certified
Safety CE / LVD certified
Environment RoHS2 & REACH compliant
Resolution Format
DVI-D / VGA input PC signal 1920 x 1200 x 60Hz
1360 x 768 x 60Hz
1280 x 1024 x 60 / 75Hz
1280 x 960 x 60Hz
1280 x 768 x 60 / 75Hz
1152 x 864 x 75Hz
1024 x 768 x 60 / 70 / 75Hz
848 x 480 x 60Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
640 x 400 x 70Hz
640 x 350 x 70Hz
Audio signal 2ch Linear PCM
HDMI input PC signal Same as VGA
HDMI 1.3 1920 x 1080 x 50 / 60Hz ( 1080p )
1920 x 1080 x 25 / 30Hz ( 1080i )
1280 x 720 x 50 / 60Hz ( 720p )
720 x 480 x 50 / 60Hz ( 576p / 480p )
Audio signal 2ch Linear PCM
