Aten Serial CPU Module for Aten KN & KM Series KVM Switches


Save $16.04
FREE Shipping on orders over $100

The Aten Altusen KA7140 is a Serial KVM Adapter Cable that connected to KVM device allows the control of serial devices through serial ports. This adapter is light and come in compact form factor, ideal for rack-mount or desktop servers.

Aten KA7140 Features:

  • ]Hot pluggable - add or remove computers without having to power down the switch
  • Support VT100
  • Support up to 300m signal transmission
  • Lifetime firmware upgrades
  • CPU module designed with automatic conversion to allow for flexible interface combinations (PS/2, USB) to control all computer types (Serial)
  • Compact size

Package Includes:

  • 1x Serial KVM Adapter Cable (CPU Module)
  • 1x USB Cable (power)
  • 1x Rack Mount Kit
  • 1x Rack Mounting Guide

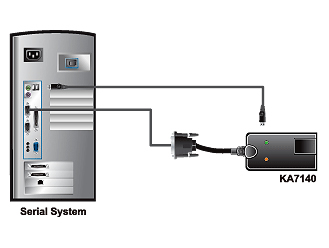

Aten Serial KVM Adapter Cable Application Diagram
Aten Serial KVM Adapter Cable Application Diagram


  • Servers with Serial management console ports
  • Available USB port (power)
  • CAT5/6 Cable
  • KN2124v/KN2140v/KN4124v/KN4140v KVM switch

Aten KA7140 Specifications:

Dimensions3.5 x 1.7 x 0.9 in.
(88.9 x 43.2 x 22.9 mm.)
Weight0.2 lb. (0.1 kg.)
UPC / EAN Barcode icon
UPC 672792400490
EAN 0672792400490
