Aten USB & VGA CPU Module for Aten KN & KM Series KVM Switches


Save $17.34
FREE Shipping on orders over $100

The Aten KA7170 is a USB KVM Adapter Cable that connects the KVM switch to the video and USB ports of the target computer.

Aten KA7170 Features:

  • Auto Signal Compensation (ASC), no DIP switch setting needed for the different distances
  • Keyboard and mouse emulation - keeps your server functioning smoothly when it is disconnected from the switch's KVM port or relocated to different KVM port
  • Lifetime firmware upgrades
  • Superior video quality - supports resolution of up to 1600 x 1200 within the distance of up to 50m
  • Built in ASIC for greater reliability and compatibility
  • CPU module designed with automatic conversion to allow for flexible interface combinations (PS/2, USB) to control all computer types (PC, Mac, Sun)
  • Compact size

Package Includes:

  • 1x KVM Adapter Cable
  • 1x Rack Mount Kit
  • 1x Rack Mounting Guide

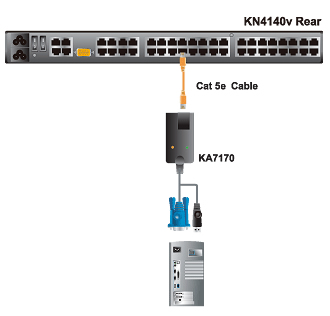

Aten USB KVM Adapter Cable Application Diagram
Aten USB KVM Adapter Cable Application Diagram


  • Servers with available USB port
  • CAT5/6 Cable
  • KN2124v/KN2140v/KN4124v/KN4140v KVM switch

Aten KA7170 Specifications:

Dimensions0.8 x 1.8 x 3.5 in.
(20.3 x 45.7 x 88.9 mm.)
Weight0.3 lb. (0.1 kg.)

This is one replacement option for the discontinued KA9170UPC / EAN Barcode icon
UPC 672792400612
EAN 0672792400612
