DVI USB Virtual Media KVM Adapter Cable with Smart Card Reader (CPU Module)

KA7166

$194.00$169.13
Save $24.87
FREE Shipping on orders over $100

The KA7166 KVM Adapter Cable connects a KVM switch to the DVI-D video and USB ports of a target computer. The KA7166 supports DVI-D output and provides a USB plug to connect a target computer for Smart Card/CAC support *.
    With its small size and light weight design, it represents the next generation of KVM Adapter Cables - offering superior signal compensation and delay skew technologies for greatly enhanced video quality.
* Virtual media and CAC reader functions are not supported for KH1508A, KH1516A, KH1508Ai, KH1516Ai, KL1508A, KL1516A, KL1508Ai, KL1516Ai, KH2508A, KH2516A, KN2116A, KN4116, KN2132, or KN4132.

Features:

  • Auto Signal Compensation (ASC), no DIP switch setting needed for different distances
  • Keyboard and mouse emulation - keeps your server functioning smoothly when it's disconnected from the switch's KVM port or is relocated to a different KVM port
  • Lifetime firmware upgrades
  • Built in ASIC for greater reliability and compatibility
  • CPU module designed with automatic conversion to allow for flexible interface combinations (PS/2, USB) to control all computer types (PC, Mac, Sun)
  • Compact size
  • Virtual Media Support*
  • Smart Card / CAC Reader Support*
  • Virtual media and CAC reader functions are not supported for KH1508A, KH1516A, KH1508Ai, KH1516Ai, KL1508A, KL1516A, KL1508Ai, KL1516Ai, KH2508A, KH2516A, KN2116A, KN4116, KN2132, or KN4132.

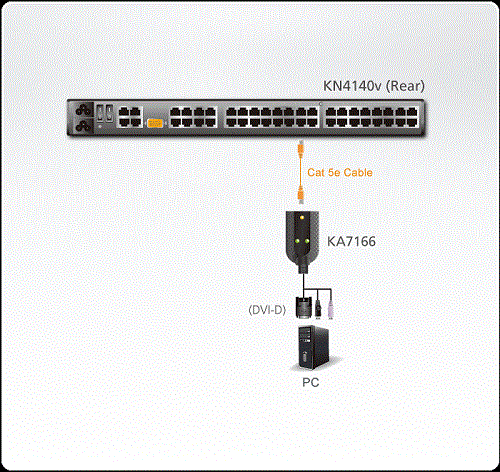

Diagram

diagram



Specifications:

Connectors
Link  1 x RJ-45 Female
USB to Computer 1 x USB Type A Male
Smart Card / CAC to Computer   1 x USB Type A Male
DVI to Computer 1 x DVI-D Male
LED's
Online 1 (green)
Power 1 (orange)
Physical Properties
housing Plastric
Weight 0.3 lbs
Dimensions  3.6 x 2.2 x 0.8 in.
(9.10 x 5.60 x 2.12 cm)
UPC / EAN Barcode icon
UPC 672792402128
EAN 0672792402128
