Aten Dual Rail 17" LCD Rackmount console

KL1100M

$1,399.95

Discontinued
Recommended replacement: Raloy RD119
Alternative options: Contact Us

The Aten KL1100M is a console used for access to a single computer or with a KVM switch system to access multiple computers. The KL1100M, 17" LCD integrated console, is space saving, streamlined, monitor, keyboard, and touchpad console packaged in a 1U housing. KL1100M supports PS/2 or USB keyboard and mouse connections from the computer or KVM switch.

Aten KL1100M's Features:

  • Integrated console featuring a 17" LCD monitor
  • Dual slide design - moniter and keyboard modules can be operated independtly.
  • Extra console port design - for redundant purpose and also allows a second user to access the KVM either remotely(through CN5000 IP access unit) or locally
  • Bult-in power supply
  • Less than 1U high, rack mountable
  • Adjustable depth to fit various racks
  • Single person installation (optional)

Aten KL1100M's Package Contents:

  • KL1100M x 1
  • PS/2 KVM cable x 1
  • Power cord x 1

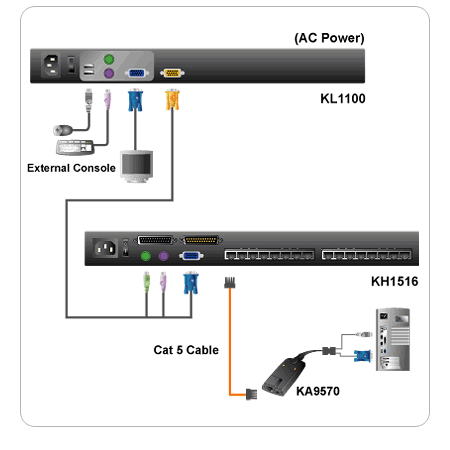

Aten KL1100M Diagram
Aten KL1100M Diagram

The Aten KL1100M's Specifications:

div
Environment

Operational Temperature32~ 104°F [0°~40°C]
Storage Temperature-4~140°F [-20°~60°C]
Humidity0~80% RH, Non-condensing
Physical Properties


HousingPlastic/Metal
Unit Weight26 lbs. (11.8 kg.)
Unit Weight w/ Package44 lbs. (20 kg.)
Unit Length25 in. (63.5 cm.)
Unit Width 18.9 in. (48 cm.)
Unit Height1.73 in. (4.4 cm.)
LEDs


Power On 1 (Dark Green)
Selected 8 (Green)
On Line8 (Orange)
Port Selection OSD; Hotkey; Pushbutton
Power Consumption 120V; 30W 230V; 37W
Video Resolution 1280 x 1024@75Hz; DDC2B
Scan Interval

1~255 Seconds
Emulation



Keyboard

PS/2
Mouse PS/2
Computer Connections


Daisy Chain or Cascading

192 (via Daisy Chain)
Direct8

Daisy Chain

1 x DB-25 Male

CPU Connectors


Keyboard, Mouse, and Monitor 8 x SPHD Female (Yellow)
Flash ROM Upgrade 1 x FW Upgrade Port
Connectors

Power 1 x 3-prong AC socket
Power Output Rating

Total AC Power Outlet, 50/60Hz 100~240V AC; 1A
Switches
Power

1 x Rocker

Reset

1 x Semi-recessed pushbutton
Port Selection8 x pushbutton
LCD Adjustment4 x pushbutton
F/W Upgrade1 x Slide
LEDs


Power On 1 (Blue)
Console Connectors
Mouse1x 6-pin Mini-DIN Female, 1x USB Type A Female
Keyboard1x 6-pin Mini-DIN Female, 1x USB Type A Female
Monitor1 x VGA (HDDB-15) Female
Extra Mouse1 x USB Type A Female
Power Consumption 29.6W
Video Resolution 1280 x 1024; DDC2B
Emulation
KeyboardPS/2, USB
MousePS/2, USB
Computer Connections



Direct

1
Power Connections
100~240V
CPU Connectors
Keyboard, Mouse, and Monitor1x SPHD-15 Female
Flash ROM Upgrade

1x RJ11

Switches


Power1 x Rocker
Reset

1 x Pushbutton1x Semi-recessed Pushbutton

LCD Power1 x Pushbutton
LCD Adjustment4 x Pushbutton
F/W Upgrade1 x Slide
Connectors

Power 1 x 3-prong AC socket
Power Output Rating

Total AC Power Outlet, 50/60Hz 100~240V AC; 1A
Switches
Power

1 x Rocker

Reset

1 x Semi-recessed pushbutton
Port Selection8 x pushbutton
LCD Adjustment4 x pushbutton
