Aten Dual Rail 17" LCD Rackmount console
KL1100M
The Aten KL1100M is a console used for access to a single computer or with a KVM switch system to access multiple computers. The KL1100M, 17" LCD integrated console, is space saving, streamlined, monitor, keyboard, and touchpad console packaged in a 1U housing. KL1100M supports PS/2 or USB keyboard and mouse connections from the computer or KVM switch.
Aten KL1100M's Features:
- Integrated console featuring a 17" LCD monitor
- Dual slide design - moniter and keyboard modules can be operated independtly.
- Extra console port design - for redundant purpose and also allows a second user to access the KVM either remotely(through CN5000 IP access unit) or locally
- Bult-in power supply
- Less than 1U high, rack mountable
- Adjustable depth to fit various racks
- Single person installation (optional)
Aten KL1100M's Package Contents:
- KL1100M x 1
- PS/2 KVM cable x 1
- Power cord x 1

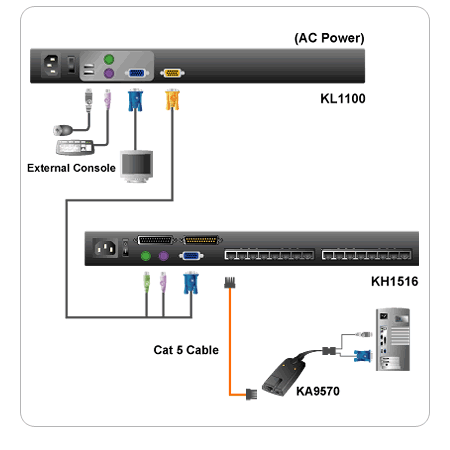

Aten KL1100M Diagram
The Aten KL1100M's Specifications:
| Environment | |
| Operational Temperature | 32~ 104°F [0°~40°C] |
| Storage Temperature | div-4~140°F [-20°~60°C] |
| Humidity | 0~80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic/Metal |
| Unit Weight | 26 lbs. (11.8 kg.) |
| Unit Weight w/ Package | 44 lbs. (20 kg.) |
| Unit Length | 25 in. (63.5 cm.) |
| Unit Width | 18.9 in. (48 cm.) |
| Unit Height | 1.73 in. (4.4 cm.) |
| LEDs | |
| Power On | 1 (Dark Green) |
| Selected | 8 (Green) |
| On Line | 8 (Orange) |
| Port Selection | OSD; Hotkey; Pushbutton |
| Power Consumption | 120V; 30W 230V; 37W |
| Video Resolution | 1280 x 1024@75Hz; DDC2B |
| Scan Interval | 1~255 Seconds |
| Emulation |
|
| Keyboard | PS/2 |
| Mouse | PS/2 |
| Computer Connections | |
Daisy Chain or Cascading | 192 (via Daisy Chain) |
| Direct | 8 |
Daisy Chain | 1 x DB-25 Male |
| CPU Connectors | |
| Keyboard, Mouse, and Monitor | 8 x SPHD Female (Yellow) |
| Flash ROM Upgrade | 1 x FW Upgrade Port |
| Connectors | |
| Power | 1 x 3-prong AC socket |
| Power Output Rating | |
| Total AC Power Outlet, 50/60Hz | 100~240V AC; 1A |
| Switches | |
| Power | 1 x Rocker |
Reset | 1 x Semi-recessed pushbutton |
| Port Selection | 8 x pushbutton |
| LCD Adjustment | 4 x pushbutton |
| F/W Upgrade | 1 x Slide |
| LEDs | |
| Power On | 1 (Blue) |
| Console Connectors | |
| Mouse | 1x 6-pin Mini-DIN Female, 1x USB Type A Female |
| Keyboard | 1x 6-pin Mini-DIN Female, 1x USB Type A Female |
| Monitor | 1 x VGA (HDDB-15) Female |
| Extra Mouse | 1 x USB Type A Female |
| Power Consumption | 29.6W |
| Video Resolution | 1280 x 1024; DDC2B |
| Emulation | |
| Keyboard | PS/2, USB |
| Mouse | PS/2, USB |
| Computer Connections |
|
| Direct | 1 |
| Power Connections | 100~240V |
| CPU Connectors | |
| Keyboard, Mouse, and Monitor | 1x SPHD-15 Female |
| Flash ROM Upgrade | 1x RJ11 |
| Switches | |
| Power | 1 x Rocker |
| Reset | 1 x Pushbutton1x Semi-recessed Pushbutton |
| LCD Power | 1 x Pushbutton |
| LCD Adjustment | 4 x Pushbutton |
| F/W Upgrade | 1 x Slide |
| Connectors | |
| Power | 1 x 3-prong AC socket |
| Power Output Rating | |
| Total AC Power Outlet, 50/60Hz | 100~240V AC; 1A |
| Switches | |
| Power | 1 x Rocker |
Reset | 1 x Semi-recessed pushbutton |
| Port Selection | 8 x pushbutton |
| LCD Adjustment | 4 x pushbutton |
