Aten 32 Port 9 user Cat5 Matrix KVM switch w/ Audio and Virtual

KM0932

$6,743.00$5,288.52
Save $1,454.48
FREE Shipping on orders over $100

The Aten KM0932 is a 32 Port, 9 User Matrix KVM Switch that gives IT administrators in large corporations advanced access and control of multiple servers. Operators working at up to 9 consoles can assume simultaneous and independent control of 32 directly connected, or through a combination of daisy chaining and cascading, as many as 8000 computers. A special feature will allow two KM0932 to be connected together in a way that allows 18 simultaneous operators independent access to 64 attached servers.  A dual power supply connected to different electrical circuits ensures continued operation in the event of a power failure on one circuit.

The KM0932 allows for real time port control by an administrator over an RS232 connection.  Close an operators session, switch ports, or end an operator's connection to a port without closing the user's session.  Server access and control is easily accomplished by means of a convenient, intuitive, graphical user interface. In addition, once the initial network setup has been accomplished, server administration tasks may be managed over the internet or through your local network by using any web browser. The KM0932 also supports audio and virtual media when used in conjunction with a KA7176 CPU module and KA7240 console module ( First tier only).

Aten KM0932 Features:

  • Nine consoles independently and simultaneously control up to 32 directly connected computers
  • Standardized graphical user interface - consistent across all Altusen products - saves on training time and costs - increases user efficiency
  • Embedded web interface for easy system configuration.
  • Redundant power supplies
  • Virtual Media Support - allows sharing of directly-connected USB storage devices to all servers connected with virtual media enabled adapter cables
  • Power Association enables switch's KVM ports to be power controlled via associated Altusen PON products
  • Dual Root functionality allows you to expand your top-level KM0932 deployment to 18 consoles.
  • RS-232 port permits an administrator user logged in over the port to perform Console and KVM port access and control.
  • Full KVM settings backup for restoration
  • Supports up to 1024 user and 255 group accounts
  • Audio support for multimedia-capable devices combined with audio enabled adapter cables ( see CPU and console requirements)
  • Three level password security: Super Administrator, Administrator, User
  • Port level user access control through the entire installation
  • Up to 7 slave switches can be daisy chained from a master switch
  • Switches can be cascaded to three levels to access and manage more than 8,000 computers
  • Convenient computer selection via intuitive hotkey combinations or GUI
  • The port list automatically expands when stations are added - port names are automatically reconfigured when the station sequence changes
  • User's display automatically adjusts to resolution differences on the remote servers
  • Auto Scan feature for monitoring user-selected computers
  • Video resolutions 1280 x 1024 @ 60 Hz up to 900ft with Auto Signal Compensation (ASC) - no dip switch settings
  • Compact design - rack mounts in only 1U of rack space
  • A firmware upgrade can be performed simultaneously on all daisy chained and cascaded slave switches as well as connected adapter cables
  • Scan - provides automatic monitoring of user-selected computers

Package Includes:

  • KM0932
  • Power cord x2
  • Manual
  • Quick Start Guide
  • Rack mount kit
  • Firmware up grade cable
  • Grounding strap
  • Rubber feet for desktop use.

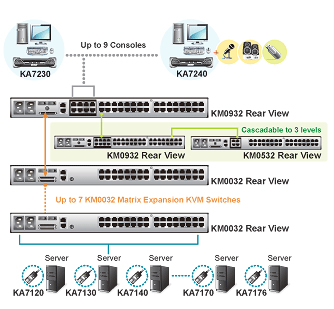

Aten Matrix KVM Switch Application Diagram
Aten Matrix KVM Switch Application Diagram

Requirements:

  • Console connections
    • KA7230 PS/2 -USB console module with RS232
      or
    • KA7240 PS/2 - USB console mudule with RS232, virtual media, audio
  • CPU Connections
    • For PS/2 computers- KA7120 or KA9120
    • For USB computers ( including Sun and MAC)- KA7170
    • For Serial devices- KA7140
    • For USB computers with virtual media and audio- KA7176

Aten KM0932 Specifications:

Mechanical
Height1.7 in. (43.2 mm.)
Width17 in. (432 mm.)
Depth16.2 in. (411.5 mm.)
Weight14 lbs. (6 kg.)
Environment
Operation Temperature32 - 122 F
Storage Temperature-4 - 140 F
Humidity0-80% RH, Non-condensing
Power
Voltage100-240V AC, 50/60 Hz
Amps1 A
Power Consumption120V 50W 171 BTU/h | 230V 51W 174 BTU/h
Console Connectors
Keyboard, Mouse, and Monitor9 x RJ45
Computer Connections
Direct32
Daisy Chain or Cascading8000
CPU Connectors
Keyboard, Mouse, and Monitor32x RJ45
Daisy Chain1x VHDCI 68 Female (Black)
LAN Connection1x RJ45
Connectors
PON1 x RJ45
Power2 x 3 Prong AC socket
Switches
Power2 x Rocker
Reset1 x Semi-recessed Pushbutton
F/W Upgrade1 x Slide
LEDs
On Line9 Console (Green)
Port Status32 Dual-colored (Green on line / Red selected)
Power On1 (Blue)
Video Resolution1280x1024@60Hz max. 900 ft
UPC / EAN Barcode icon
UPC 672792400186
EAN 0672792400186
Question: I have a KM0932 switch & two console types (KA7240, KA7230). Is there a way to have USB access to that work station that is selected from the console.
Answer: Thank you for your inquiry. It sounds like you are looking for virtual media access perhaps? For virtual media access, you will need to use a KA7176 CPU module on the server side and the KA7240 console. Virtual media will allow a user to mount a USB storage device on the attached server.

Unfortunately, we do not believe that you can use that virtual media USB port to attach another USB devices like a printer.

Question: Device Access is full! Press Enter to continue
Answer: Thank you for your inquiry. Unfortunately, detailed product support is beyond the scope of this simple FAQ.
