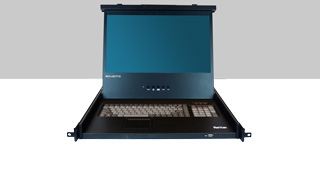

Raritan MasterConsole Digital LED Banner

Raritan MCD-LED17116 - MasterConsole Digital LED - Next Generation Cat5 KVM Console Drawer

Raritan's MCD-LED17116 MasterConsole Digital LED is a 17" LED Console Drawer (MCD-LED) with integrated Cat5 KVM switch combination for small to midsized businesses. This advanced combination brings you KVM ports for 16 servers and can be cascaded 2 levels to support up to 512 connections at distances up to 100 feet (30 meters). The flexible video interface supports both Analog - VGA and Digital - DVI, HDMI and DisplayPort with a maximum HD video resolution up to 1920x1080. The MCD-LED17116 with its convenient space saving design simply connects to multiple computers with the use of standard Category 5/6/6e cables. MCD-LED17116 provides at-the-rack access with a friendly user interface and convenient hotkeys to quickly access connected computers. It is ideal for performing system maintenance, administration, running applications, and troubleshooting.

Raritan MCD-LED17116 Diagram

Overview

Raritan MCD-LED17116 Scalability and Expansion by Cascading

Scalability and Expansion by Cascading

A Single user can manage 16 servers connected to MCD-LED17116. MCD-LED17116 can also be cascaded 2 levels, by using Raritan's MDCIM-DVI or MDUTP cables, to control up to 512 servers

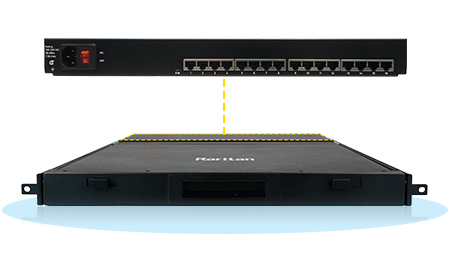

Raritan MasterConsole Digital LCD Console - 1U Rack Mount

Space Saving Design

The 1U rack mount modular design takes up to 85% less space than a full sized keyboard, monitor, and mouse.



Raritan MCD-LED17116 High Definition LED Digital or Analog Video & Audio

High Resolution LCD LED Display

MCD-LED17116 supports 1920 x 1080 video resolutions at 150 feet.



Raritan MCD-LED17116 On-Screen Display

Simple Installation & Intuitive On-Screen Display

Plug-and-play installation, auto-configuration, and easy-to-use onscreen displays allow for easily install of the MCD-LED17116 at the rack.

Raritan MCD-LED17116 AutoScan / AutoSkip

AutoScan / AutoSkip

AutoScan allows users to scan servers at variable rates for effortless monitoring. AutoSkip allows users to bypass inactive channels.

Raritan MCD-LED17116 supports HDMI/DVI/DP/VGA video

Supports HDMI/DVI/DP/VGA video and stereo audio

MCD-LED17116 MasterConsole Digital LED supports severs with both analog (VGA) and digital video: HDMI, DVI, and DisplayPort (DP). Audio is supported by Raritan's MDCIM-HDMI or MDUTP VGA KVM combo cables.

Additional Features

Next generation Cat5 interface supports digital & analog video interfaces and audioMCD-LED17116 MasterConsole Digital LED drawer with integrated KVM Switch is the next generation of Raritan Cat5 KVM switches. It supports single user control of up to 16 servers.
Space-Saving Design MCD-LED17116 is only 1U of rack space in height
Cross-Platform and Hardware Independent

MCD-LED17116 works with a mixture of servers that have USB keyboard/mouse interfaces and HDMI/DVI/DP digital video interfaces or analog VGA.

MDCIMs are available for support of various servers and devices in your data center including MS-DOS, Windows 7/8/8.1/10, Linux (Red Hat, Novell Suse), Macintosh OS9, OSX and SCO UNIX.

"keep-alive" technologyMCD-LED17116 server interface cables (MDCIMs) with "keep-alive" technology allow users to add, remove and hot-swap CIMs without interruption to the live servers. MDCIMs also support DDC, DDC2, and DDC2B.
Cat5 SimplicityUtilizes Cat5e/6/6e cabling to carry the KVM signaling from the server (via MDCIMs) to a KVM switch.
Servers can be labeled with server' namesAllows easier server selection from the on-screen menu.
Simple Installation Plug-and-play installation, auto-configuration along with easy-to-use, on-screen displays. With the one-man installation kit, you can easily install MCD-LED17116 in the rack.
Password Authentication Support of one administrator and 127 user profiles for secure access and simple management.

Accessories & Optional Expansion

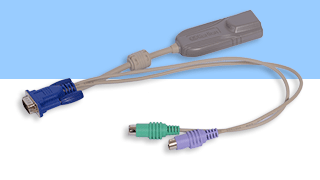

Raritan CIM

A CIM is a "server dongle" that connects a PC, server or workstation to the MCD-LED17116 via a Cat5/6 cable. There are multiple types of CIMs to support the different types of computer interfaces. Click this tile to see a table which you can use to locate the appropriate CIM for your application.

CatX Cables

Great Selection of various Cat5e, Cat6, & Cat7 Category (CatX) patch cables for Raritan MCD-LED17116 MasterConsole Digital LED devices.

Locking Power Cables

Eliminate accidental and vibration power cable disconnects with a universal dual-sided locking zLock cable.

Extended Warranties

Extend your Raritan MCD-LED17116 Warranty by 1 to 2 years (up to 4-years total support). Extended warranties include 100% parts and workmanship, 24-hour replacement, and 24-hour technical support.

MCD-LED17116 Package Contents

  • (1) Raritan MCD-LED17116
  • (1) US Power cord
  • (1) 1U Rackmount kit (including brackets and associated screws)
  • (1) DVI-I to VGA adapter
    • Note: This adapter can be used for connecting a VGA monitor or for connecting a 2nd-tier MCD switch via "MDUTP" cables.
  • (1) Quick Setup Guide
  • (1) Warranty Card - 2 Years

MCD-LED17116 Resources & Support

Raritan MCD-LED17116 KVM Manual Thumbnail Raritan MCD-LED17116 Brochure (PDF)
Raritan MCD-LED17116 User Manual (PDF)
Raritan MCD-LED17116 Quick Start (PDF)
Raritan MCD-LED17116 Features & Benefits (PDF)
Raritan MCD-LED17116 Frequently Asked Questions (PDF)
Raritan MCD-LED17116 Online Help Guide (Link)
Raritan MCD-LED17116 Support (Link)


Raritan MCD-LED17116 Specifications

Mechanical
Width 22.15 in. (562.71 mm)
Depth19.08 in. (484.7 mm)
Height 1.73 in. (41.5 mm)
Weight39.6 lbs. (18 kg)
Form Factor1U, full width
rack mountable (brackets included)
Connections & Indicators
Supported console users 1
Channel ports (female RJ-45) 16
Built-in 104-key keyboard 1
Built-in touchpad 1
Female USB-A ports (for external keyboard/mouse)1
Female Micro USB (for firmware upgrade) 1
Ground screw 1
AC socket 1
Power switch 1
Push buttons for the LCD display5 buttons (1 for power, and 4 for operating the LCD display's OSD menu)
Power LED (white) for the LCD display 1
Num Lock indicator (green) 1
Caps Lock indicator (green) 1
Scroll Lock indicator (green) 1
Video support 1920 x 1200 @75Hz (VGA)
1920 x 1080@60Hz (DVI)
DDC2B
Built-in LCD display

17.3"TFT LCD with LED backlight unit

  • Pixel pitch: 0.1989 (H) x 0.1989 (V) mm
  • Max. resolution: 1920x1080@60Hz (FullHD 1080P)
  • Supported colors: 262,144
  • Brightness (cd/m2): 300 nits
  • Contrast ratio - 650:1
  • MTBF: 15,000 Hours
Power
Maximum Input Power RatingAC100-240V, 1.5A
Maximum Power ConsumptionDC12V/5.42A (65W)
Environmental
Operating Temperature32° (0°C) to 122° (50°C)
Storage temperature-4° (-20°C) to 140° (60°C)
Humidity0-80% RH , Non-condensing
SafetyCE/FCC/VCCI/UL
KVM Switch Mean Time Between Failures (MTBF)> 300,000 Hours
Question: How do we change the 3x 'Scroll Lock' key press in changing the switch port to increase the speed of the switching?
Answer: Thank you for your inquiry,

An administrator can change the specific 'Hot-key' used for switching sources from Scroll Lock to any other key in the "Setup" screen of the On-Screen-Display menu (on the OSD selection menu, press F1 to display the SETUP page). That being said, this would still require three presses of the Hot Key.

For more information on changing Hot-key, please see the "System Settings" section on page 38 of the Raritan MCD-LED17116 User Guide.

Please let us know if there is anything else we can ever help you with!
