Raritan MCD-LED17108 17" LCD Drawer with Integrated 1 User, 8 Port MasterConsole Digital CAT5 KVM Switch
Raritan MCD-LED17108 - MasterConsole Digital LED - Next Generation Cat5 KVM Console Drawer
Raritan's MCD-LED17108 MasterConsole Digital LED is a 17" LED Console Drawer (MCD-LED) with integrated Cat5 KVM switch combination for small to midsized businesses. This advanced combination brings you KVM ports for 8 servers and can be cascaded 2 levels to support up to 256 connections at distances up to 100 feet (30 meters). The flexible video interface supports both Analog - VGA and Digital - DVI, HDMI and DisplayPort with a maximum HD video resolution up to 1920x1080. The MCD-LED17108 with its convenient space saving design simply connects to multiple computers with the use of standard Category 5/6/6e cables. MCD-LED17108 provides at-the-rack access with a friendly user interface and convenient hotkeys to quickly access connected computers. It is ideal for performing system maintenance, administration, running applications, and troubleshooting.
Scalability and Expansion by Cascading
A Single user can manage 8 servers connected to MCD-LED17108. MCD-LED17108 can also be cascaded 2 levels, by using Raritan's MDCIM-DVI or MDUTP cables, to control up to 256 servers
Space Saving Design
The 1U rack mount modular design takes up to 85% less space than a full sized keyboard, monitor, and mouse.
High Resolution LCD LED Display
MCD-LED17108 supports 1920 x 1080 video resolutions at 150 feet.
Simple Installation & Intuitive On-Screen Display
Plug-and-play installation, auto-configuration, and easy-to-use onscreen displays allow for easily install of the MCD-LED17108 at the rack.
AutoScan / AutoSkip
AutoScan allows users to scan servers at variable rates for effortless monitoring. AutoSkip allows users to bypass inactive channels.

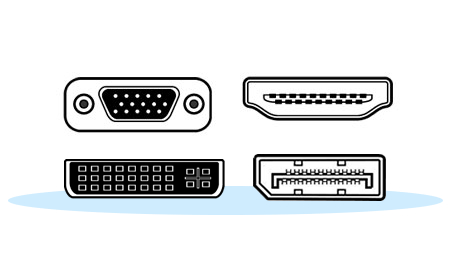

Supports HDMI/DVI/DP/VGA video and stereo audio
MCD-LED17108 MasterConsole Digital LED supports severs with both analog (VGA) and digital video: HDMI, DVI, and DisplayPort (DP). Audio is supported by Raritan's MDCIM-HDMI or MDUTP VGA KVM combo cables.

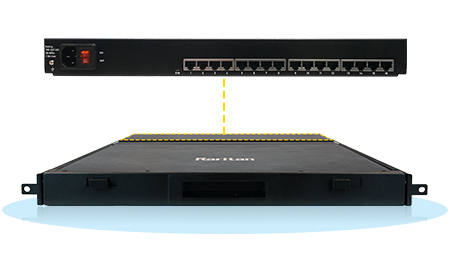

|Next generation Cat5 interface supports digital & analog video interfaces and audio||MCD-LED17108 MasterConsole Digital LED drawer with integrated KVM Switch is the next generation of Raritan Cat5 KVM switches. It supports single user control of up to 8 servers.|
|Space-Saving Design||MCD-LED17108 is only 1U of rack space in height|
|Cross-Platform and Hardware Independent|
MCD-LED17108 works with a mixture of servers that have USB keyboard/mouse interfaces and HDMI/DVI/DP digital video interfaces or analog VGA.
MDCIMs are available for support of various servers and devices in your data center including MS-DOS, Windows 7/8/8.1/10, Linux (Red Hat, Novell Suse), Macintosh OS9, OSX and SCO UNIX.
|"keep-alive" technology||MCD-LED17108 server interface cables (MDCIMs) with "keep-alive" technology allow users to add, remove and hot-swap CIMs without interruption to the live servers. MDCIMs also support DDC, DDC2, and DDC2B.|
|Cat5 Simplicity||Utilizes Cat5e/6/6e cabling to carry the KVM signaling from the server (via MDCIMs) to a KVM switch.|
|Servers can be labeled with server' names||Allows easier server selection from the on-screen menu.|
|Simple Installation||Plug-and-play installation, auto-configuration along with easy-to-use, on-screen displays. With the one-man installation kit, you can easily install MCD-LED17108 in the rack.|
|Password Authentication||Support of one administrator and 127 user profiles for secure access and simple management.|
Accessories & Optional Expansion

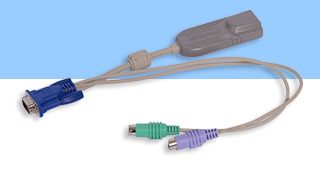

Raritan CIMA CIM is a "server dongle" that connects a PC, server or workstation to the MCD-LED17108 via a Cat5/6 cable. There are multiple types of CIMs to support the different types of computer interfaces. Click this tile to see a table which you can use to locate the appropriate CIM for your application.
CatX CablesGreat Selection of various Cat5e, Cat6, & Cat7 Category (CatX) patch cables for Raritan MCD-LED17108 MasterConsole Digita LED devices.
Locking Power CablesEliminate accidental and vibration power cable disconnects with a universal dual-sided locking zLock cable.
MCD-LED17108 Package Contents
- (1) Raritan MCD-LED17108
- (1) US Power cord
- (1) 1U Rackmount kit (including brackets and associated screws)
- (1) DVI-I to VGA adapter
- Note: This adapter can be used for connecting a VGA monitor or for connecting a 2nd-tier MCD switch via "MDUTP" cables.
- (1) Quick Setup Guide
- (1) Warranty Card - 2 Years
MCD-LED17108 Resources & SupportRaritan MCD-LED17108 Brochure (PDF)
Raritan MCD-LED17108 User Manual (PDF)
Raritan MCD-LED17108 Quick Start (PDF)
Raritan MCD-LED17108 Features & Benefits (PDF)
Raritan MCD-LED17108 Frequently Asked Questions (PDF)
Raritan MCD-LED17108 Online Help Guide (Link)
Raritan MCD-LED17108 Support (Link)
Raritan MCD-LED17108 Specifications
|Width||22.15 in. (562.71 mm)|
|Depth||19.08 in. (484.7 mm)|
|Height||1.73 in. (41.5 mm)|
|Weight||26.4 lbs. (12 kg)|
|Form Factor||1U, full width|
rack mountable (brackets included)
|Connections & Indicators|
|Supported console users||1|
|Channel ports (female RJ-45)||8|
|Built-in 104-key keyboard||1|
|Female USB-A ports (for external keyboard/mouse)||1|
|Female Micro USB (for firmware upgrade)||1|
|Push buttons for the LCD display||5 buttons (1 for power, and 4 for operating the LCD display's OSD menu)|
|Power LED (white) for the LCD display||1|
|Num Lock indicator (green)||1|
|Caps Lock indicator (green)||1|
|Scroll Lock indicator (green)||1|
|Video support||1920 x 1200 @75Hz (VGA)|
1920 x 1080@60Hz (DVI)
|Built-in LCD display|
17.3"TFT LCD with LED backlight unit
|Maximum Input Power Rating||AC100-240V, 1.5A|
|Maximum Power Consumption||DC12V/5.42A (65W)|
|Operating Temperature||32° (0°C) to 122° (50°C)|
|Storage temperature||-4° (-20°C) to 140° (60°C)|
|Humidity||0-80% RH , Non-condensing|
|KVM Switch Mean Time Between Failures (MTBF)||> 300,000 Hours|
Answer: Thank you for your inquiry,
Here is the Raritan MCD-LED17108 Certificate of Conformance/Compliance (CofC).
