The NTI RACKMUX-V17HR-N VGA USB + PS/2 KVM Drawer combines a rackmount LCD monitor, keyboard, and touchpad mouse in a space-saving 1RU industrial strength drawer. The RACKMUX-V17HR-N model includes a high resolution 1920 x 1200 LCD monitor.
NTI RACKMUX-V17HR-N Features and Benefits:
- 17.1" Active Matrix LCD flat panel VGA monitor.
- Ultra high resolution 1920x1200 WUXGA
- Tilt LCD up and back to adjust to any comfortable viewing angle to 120°
- Compatible with USB and PS/2 computers.
- Torque-friction hinges-monitor does not wobble, spring, or slam shut.
- Compact, heavy-duty tactile keyboard.
- Rugged steel construction with durable powder coat finish.
- Equipped with On Screen Display (OSD).
- Designed to be a one-person job when installing the drawer.
- Drawer locks into place when open to prevent it from sliding in and out of the rack.
- Front quick-release latches for pushing the drawer back into the rack.
- LCD auto-shutoff in closed position
- Internal cable arm provides proper cable management for sliding the drawer open and closed.
- Front panel security lock.
- Front panel USB port to connect an external USB device, such as a flash drive.

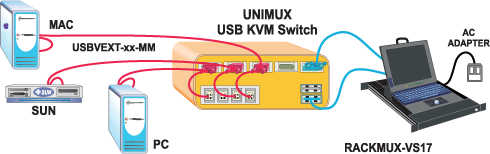

NTI RACKMUX VGA USB+PS/2 Drawer with UNIMUX KVM (Not Included) Diagram
(RACKMUX-VS17 depicted here)
NTI RACKMUX-V17HR-N Package Content:
- 1 RACKMUX-V17HR-N Drawer with VGA Video Support
- 1 USB-AB-2M 2m USB Type A to USB Type B M-M Cable
- 1 VVKINT-6-MM 6 ft. PS/2 mouse/keyboard cable
- 1 VEXT-THN-6-MM 6 ft. VGA video cable
- 2 keys for lock
- 2 Rear Mounting Bracket with nuts
- 8 #10 32x3/4 in. screws and cage nuts for mounting on rack
- IEC Power Cord (USA)
- CD with pdf file of owner's manual and installation guide

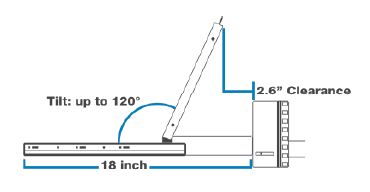

NTI RACKMUX Drawer Tilt Drawing
NTI RACKMUX-V17HR-N Specifications:
|Width||19 in. (483 mm)|
|Height||1.75 in. (44 mm)|
|Depth||23.9 in. (607 mm)|
|Weight||26 lbs. (12 kg.)|
|Operating Temperature||32 to 104°F (0 to 40°C)|
|Storage Temperature||-4 - 140°F (-20 to 60°C)|
|Operating Humidity||20 to 90% non-condensing RH|
|Compatibility||PS/2, UNIX, and USB computers|
|Connectors||1 x 15-pin HD; 1 x USB Type B;|
2 x 6-pin miniDIN
|Type||Active matrix TFT LCD 17 in.|
flat panel VGA; front-folding
|Resolution||1920 x 1200|
|Tilt||Up to 120°|
|Frequency||Horizontal: 31-80 KHz; Vertical: 56-75 KHz|
|Protocol Support||DDC1 and DDC2B|
|Keyboard Available||100-key (US) keyboard with numeric keypad|
|USB Connectors||Front panel USB 1.1 port (for external USB devices)|
|Power Consumption||100V-240VAC @ 50/60Hz via IEC connector|
|Maximum Inrush current||30A|
|Regulatory Approvals||CE, RoHS|
