1U 17" Rack Mount Monitor Keyboard Drawer w/ 8-Port PS/2 KVM Switch
RKP117-801
17" 1U Rackmount TFT LCD Monitor Keyboard Drawer with 8 Port KVM Switch (comes with 8 6' cables).

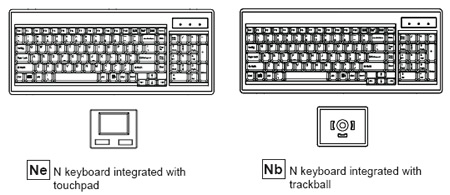

RKP Series is a combination of keyboard, mouse and monitor with KVM switch into a drawer, with features such as flip-up design, adjustable brackets, built-in LCD OSD to provide effective assistance for an administrator to control multiple PCs.The following keyboard options are available:
RKP117-801 Features
- 1U 17" LCD console drawer
- 104-key keyboard with either touchpad or trackball
- Short depth design of 460mm and 500mm respectively
- New enhanced aesthetics with molded front handle
- Front USB port for device access (USB Hub KVM only)
- 2 post rack mounting available
Advanced Features with KVM
- Cascade for use up to 128 servers.
- Name servers up to 16 characters long.
- Support eight characters password protection and search PC server name.
- VGA, keyboard & mouse all-in-one by 15pin DB connector at switch side.
RKP117-801 Specifications
| Mechanical | |
| Height | 1.73 in. (44 mm.) |
| Width | 17.4 in. (442 mm.) |
| Depth | 18.1 in. (460 mm.) |
| Package Dimensions | 5.5 x 23.2 x 31.8 in. (140 x 590 x 808 mm.) |
| Form Factor | 1U rack mounting on slide-out rails |
| Net Weight | 27.7 lbs. (12.6 kg.) |
| Gross Weight | 40.5 lbs. (18.4 kg.) |
| Environmental | |
| Operating Temperature | 0° to 50°C Degree |
| Storage Temperature | -5° to 60°C Degree |
| Relative Humidity | 5~90%, non-condensing |
| Shock | 10G acceleration (11ms duration) |
| Vibration | 5~500Hz 1G RMS random vibration |
| Power | |
| Input | Auto-sensing 100 to 240VAC, 50 / 60Hz |
| Consumption | Max. 40 Watt, Standby 5 Watt |
| LCD Display | |
| Diagonal Size | 17" TFT |
| Max. Resolution | 1280 x 1024 |
| Brightness (cd/m_) | 250 |
| Color Support | 16.2 M |
| Contrast Ratio (typ.) | 1000:1 |
| Viewing Angle (H/V) | 160° x 160° |
| Display Area (mm) | 338 x 270 |
| Signal Input | VGA |
| Plug & Play DDC | EDID 1.3 |
| Console Port (Combo) | 4-in-1 DB-15 connector for VGA / keyboard /mouse Support USB & PS/2 servers |
| Compatibility | Mix PCs, SUN and Mac G3 / G4 Mac / iMac |
| Regulation Approval | FCC, CE |
Question: Can you email me a STEP file for part number RKP117-801C ?
Answer: Thank you for your inquiry. Unfortunately, the manufacturer does not have a STEP file available.
Question: Please could you explain the differences between the 2 keyboard options. It would be used in the UK, which power option would I require?
Answer: Thank you for your inquiry. The keyboards themselves are the same. The differences come from the integrated trackball or touchpad. The trackball uses a roller ball to move the mouse, while the touchpad is similar to a laptop's touchpad. There is also a UK keyboard layout option available upon request.
The standard power supply (12V/3.3A) accepts 120-240V AC; this is most likely the power supply option you will need. The additional power options are for DC power, most often found in specialized and/or telco environments. The AC power supply is auto-sensing, so you should only need a country specific power cord that is compatible with UK wall sockets.
Question: looking for the combo cable for a cyberview rkp117e need USB and ps2
Answer: Thank you for your inquiry. The cable you need is the CE-6 ( https://www.kvm-switches-online.com/ce-6.html ), CE-10 ( https://www.kvm-switches-online.com/ce-10.html ) or CE-15 ( https://www.kvm-switches-online.com/ce-15.html ).
