2U 17" Monitor & Keyboard Drawer, Short-depth, w/ 8-Port PS/2 KVM Switch



Replaced by: Cyberview RKP2417-S801
Alternative options: Contact Us

17" 2U Rackmount LCD Monitor w/ Trackball and 8-Port KVM Switch (comes with gel wristpad and 8 6' cables)

RKP Series is a combination of keyboard, mouse and monitor with KVM switch into a drawer, with features such as flip-up design, adjustable brackets, built-in LCD OSD to provide effective assistance for an administrator to control multiple PCs.

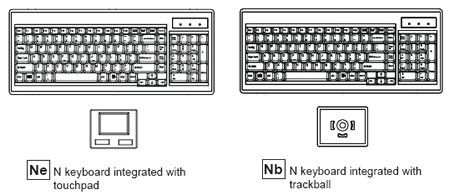

The following keyboard options are available:

Keyboard Options

RKP Series is cost effective for your limited IT budget over using CRT and rack mounting. Also, it is space saving for your compact environment rack and provides effective assistance for an administrator to control multiple PCs.

Cyberview RKP2417-801 Features

  • 2U dual slide 17" LCD console drawer
  • 104-key keyboard with either touchpad or trackball
  • SUN Micro or MAC keyboard options available
  • Short depth design of 480mm (18.9")
  • New enhanced aesthetics with molded front handle
  • 2 post rack mounting available

With KVM Only

  • Built-in KVM switch function for easy controlling and monitoring up to 8
    residing servers/ platforms
  • Support eight characters password protection and search PC server name
  • LED display for easy status monitoring

Cyberview RKP2417-801 Specifications

Height 3.5 in (88 mm)
Width 17.4 in (441.6 mm)
Depth18.1 in (480 mm)
Weight44.9 lbs. (20.4 kgs)
Package Dimensions
Height7.5 in (190 mm)
Width23 in (585 mm)
Depth24.4 in (620 mm)
Weight54.6 lbs (24.8 kgs)
Operation Temperature0 to 50°C Degree
Storage Temperature-5 to 60°C Degree
Relative Humidity5~90%, non-condensing
Shock10G acceleration (11ms duration)
Vibration5~500Hz 1G RMS random vibration
PowerAuto-sensing 100 to 240VAC, 50 / 60Hz
LCD Screen
Display Size17" TFT
Display color 16.7 M
Brightness (cd/m2)250
Contrast Ratio1000:1
Viewing Angle160° x 160°
Signal InputVGA
Integrated USB KVM Switch
KVM Port8
Connector DB-15 combo
ConnectivityPS/2 3-in-1 KVM cable, up to 6,10 & 15 feet
Local ConsoleNil for LCD console drawer version
SecurityPassword enable & disable
PC SelectionFront button, OSD menu & hotkey
ExpansionUp to 64 servers by 8-level cascade
CompatibilityMix PCs, SUN and Mac G3 / G4 Mac / iMac
