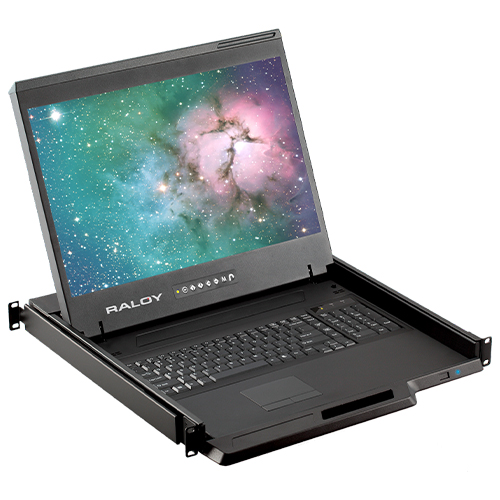

Raloy RWX119 1U 19" Widescreen Rack Console - with Integrated 12-Port DVI USB 3.0 KVM Switch

RWX119-DVIKVM112

$1,678.00$1,502.00
Save $176.00
Integrated KVM: DVI KVM with USB 3.0 Hub & Audio
FREE Shipping on orders over $100

Raloy RWX119-DVIKVM112 rack console features a 19" Widescreen HD LCD and an Integrated . This state-of-the-art modular rack console offers a space saving, streamlined approach to your rack environment by integrating your LCD monitor, KVM switch, Keyboard, Mouse, and Audio options into one unit taking up only 1U (1.73 in.).

Overview - Raloy RWX119 with DVIKVM112 KVM

  • Rackmount Console with integrated 12-Port DVI KVM in only 1RMU
  • Widescreen 19" Industrial HD LCD. Max. resolution: 1440 x 900
  • Single Link DVI-D, USB 3.0, and Audio Switching
  • 6x DVI USB 2-in-1 cables included (p/n RCI-6).
  • Advanced user profiles and configurable OSD hot key combinations.
  • Supports widescreen & native SUN 1152 x 900 resolution
  • Multi-platform for PCs, SUN and Mac G3 / G4 Mac / iMac
  • Support for VESA DDC2B emulation & TMDS signal pass-through
  • 24 Month Limited Warranty - Extended Warranties available for purchase

Features - Raloy RWX119 with Integrated DVI KVM

  • Raloy RWX119-DVIKVM112 USB 3.0 Peripheral Hub

    USB 3.0 Peripheral Hub

    Raloy RWX119-DVIKVM112 features a front USB 3.0 Peripheral hub port that let you share USB 3 peripheral devices, storage devices, CAC readers, printers, bootable ISO, and any other USB 3.0 devices, among multiple computers connected to the KVM.

  • Raloy RWX119-DVIKVM112 High-Contrast Widescreen Display

    High-Contrast Widescreen Display

    The Raloy RWX119 features a 19" widescreen High-Contrast LCD delivering up to 1440 x 900 resolution. DDC2B emulation allows the video settings of the connected computer to be automatically adjusted for optimal display on the console monitor.

  • Raloy RWX119-DVIKVM112 CD quality analog audio via USB

    CD-quality stereo audio

    Seamlessly switch your audio source along with the computer source! The RWX119-DVIKVM112 delivers USB stereo audio (Line In, Line Out) digitally across the source computers. USB based audio supports supports up to 16-bit/48 kHz hi-res files, for those seeking absolute audio perfection.


  • Raloy RWX119-DVIKVM112 KVM Multi-platform support

    Multi-platform support

    The Raloy RWX119 is designed to be driver-free and works with all known software and computer platforms, including Windows (all), Mac (all), DOS, Linux, Unix, BSD, Sun OS (all), NetWare, etc. RWX119 supports USB, PS2 and Sun keyboard/mouse interfaces.

  • Raloy RWX119-DVIKVM112 2nd Generation Efficient Design

    2nd Generation Efficient Design

    A decade of testing rack mount monitors led Raloy to their next generation refined design including:

    • Moulded front handle for easy access and use
    • New streamlined and enhanced aesthetics
    • Direct replacement to older generation RW119-N-101
  • Raloy RWX119-DVIKVM112 Built-to last - MTBF 50,000 Hours

    Built-to last - MTBF 50,000 Hours

    Tired of low quality TrippLite and Vertiv consoles that break in months? Raloys console drawers have been designed and tested to be highly reliable. As the oldest rack console manufacturer, Raloy has had millions of hours of real application usage of its console drawers and is commited quality.


  • Raloy RWX119-DVIKVM112 Certifications

    High-quality Build with Certifications for any application

    This Raloy console has been tested and approved for UL (console), CE, FCC, RoHS Certifications for IT, manufacturing, SOHO, and commercial applications. For TAA Compliant applications, Raloys drawers are assembled and tested in California, USA.


RWX119 with DB-15 Hub KVM Package Contents

Raloy RWX119 Package Contents

  • (1) RWX119 Rack Console with Integrated DVIKVM112
  • (1) 1U, 19" Rack mount kit w/ brackets & screws
  • (6) RCI-6 VGA/USB console cable
  • (1) 24 Month Limited Warranty
    - Extended Warranties available for purchase
  • *Additional parts may be included based on options

RWX119 Resources

Raloy RWX119 Resources RWX119 Datasheet (PDF)
RWX119 Manual (PDF)
DVIKVM112 KVM Manual (PDF)

Instructional Media

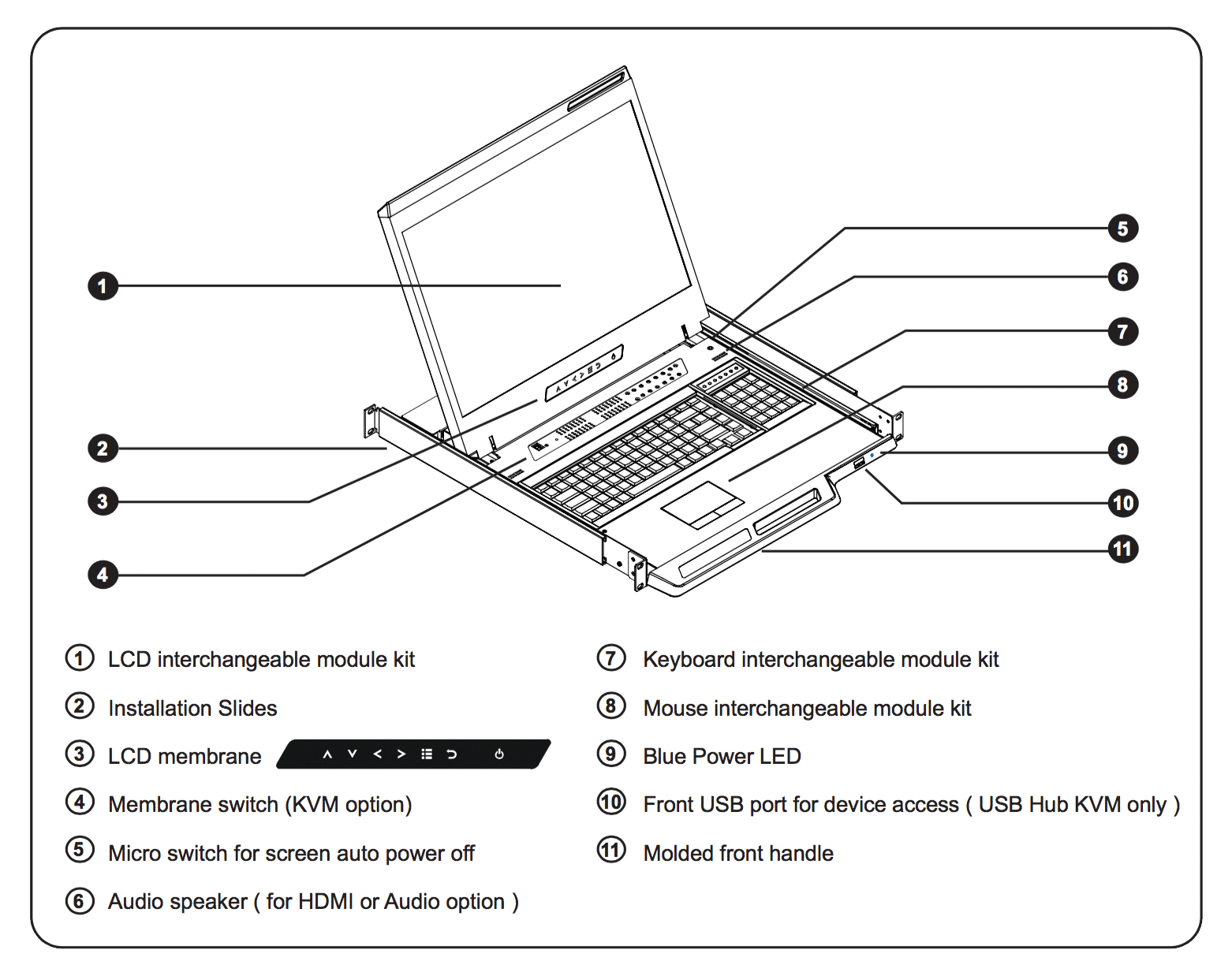

RWX119 Diagram

RWX119 Front View

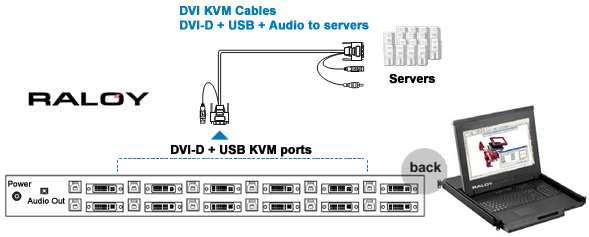

RWX119-DVIKVM112 Connection Diagram

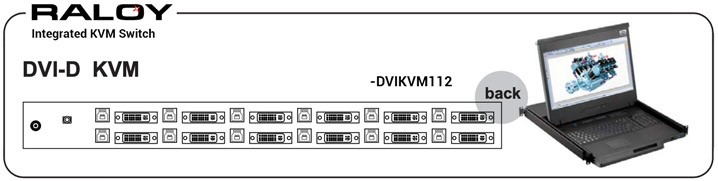

RWX119 Integrated DVIKVM112 KVM

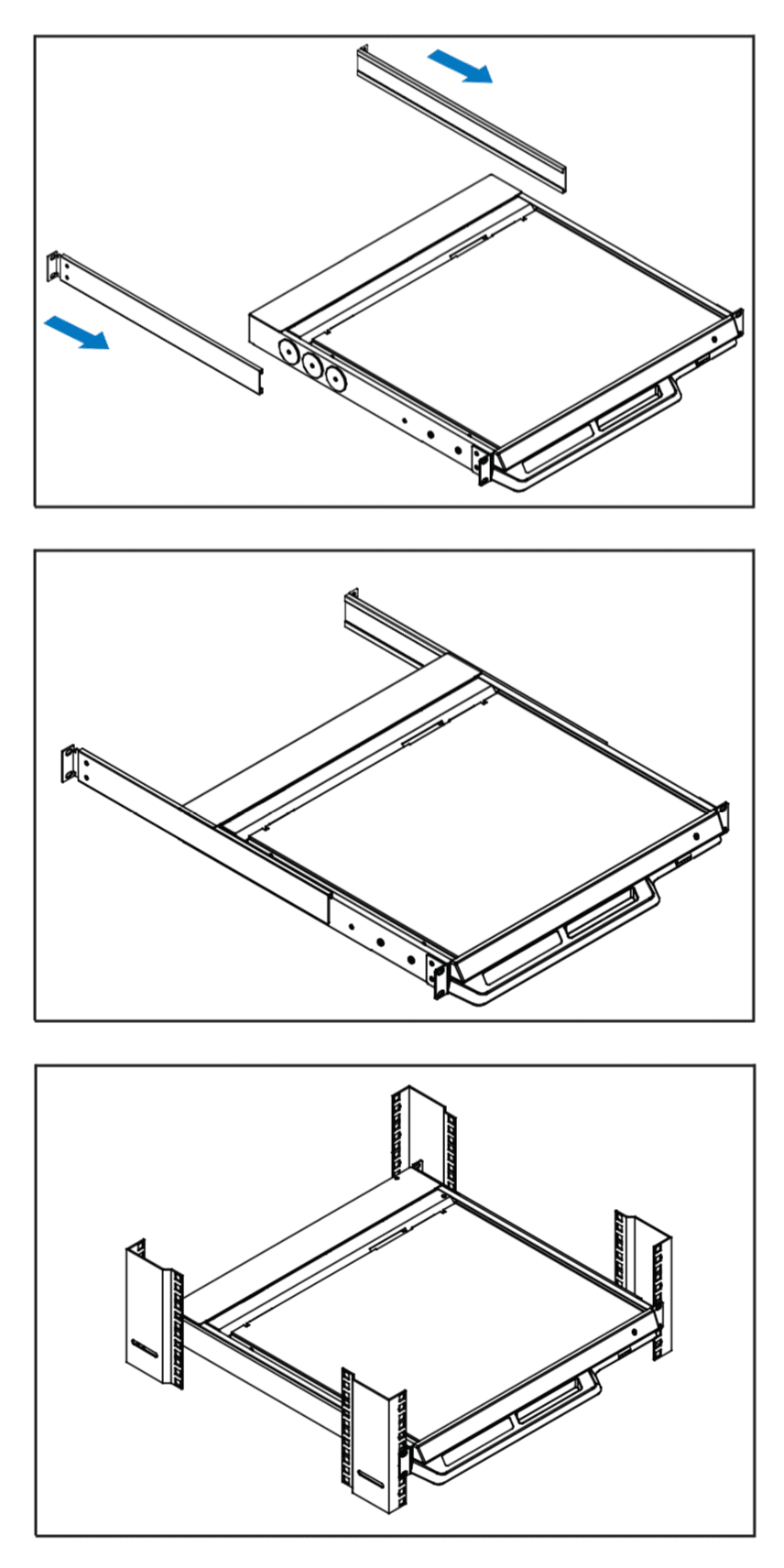

RWX119 Installation Diagram

Raloy RWX119-DVIKVM112 Specifications

Mechanical
Height 1.73 in. (44 mm.)
Width 17.4 in. (442 mm.)
Depth22.8 In. (579.1 mm.)
Package Dimensions23.2 x 30.2 x 5.5 in.
(590 x 768 x 140mm)
Mounting Depth23.5 in. (min) to 34.5 in. (max)
(596.9 to 876.3 mm)
Form Factor1U rack mounting on slide-out rails
Net Weight28 lbs. (12.5 kg.)
Gross Weight40.5 lbs. (18.4 kg.)
Environmental
Operating Temperature32 to 122°F
(0 to 50°C)
Storage Temperature23 to 140°F
(-5 to 60°C)
Relative Humidity5~90%, non-condensing
Shock10G acceleration (11ms duration)
Vibration5~500Hz 1G RMS random vibration
Power
InputAuto-sensing 100 to 240VAC,
50 / 60Hz
ConsumptionMax. 48 Watt, Standby 5 Watt
LCD Display
Diagonal Size19" Widescreen TFT
Max. Resolution1440 x 900
Brightness (cd/m2)300
Color Support16.7 Mil.
Contrast Ratio (typ.)1000:1
Viewing Angle (H/V)160° x 160°
Display Area (mm)408 x 255
Response Time (ms)5
VGA Signal InputAnalog RGB, 0.7Vp-p
Sync. TypeSeparate H/V, Composite, SOG
Resolution1440 x 900 x 60Hz
1280 x 1024 x 60 / 75Hz
1280 x 960 x 60Hz
1280 x 760 x 60 / 75Hz
1152 x 864 x 75Hz
1024 x 768 x 60 / 70 / 75Hz
848 x 480 x 60Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
640 x 400 x 70Hz
640 x 350 x 70Hz
Plug & Play DDCEDID 1.3
Console PortVGA + USB or PS/2, server end
DB15 (VGA, USB KB/MS), console side
CompatibilityMix various PC, SUN, MAC, IBM,
HP & DELL servers
Regulation ApprovalcUL (console), FCC & CE certified
RoHS2 & REACH compliant
