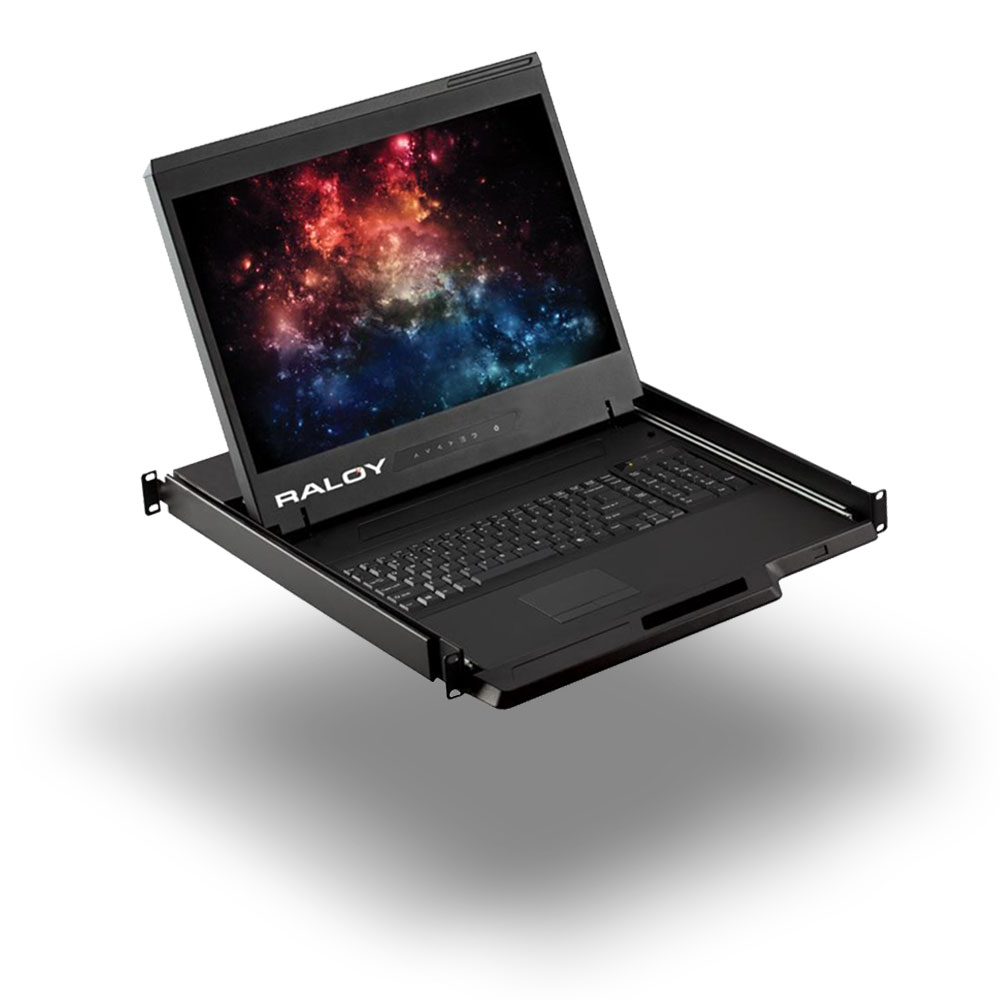

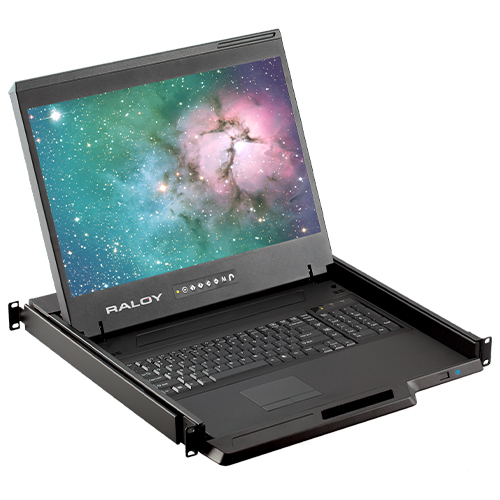

Raloy RWX119 1U 19" Widescreen Rack Console - with Integrated VGA USB Hub KVM Switch

RWX119-HKVM

$1,473.00$1,238.00
Save $235.00
Integrated KVM: DB-15 VGA KVM with USB 2.0 Hub
FREE Shipping on orders over $100

Raloy RWX119-HKVM rack console features a 19" Widescreen HD LCD and an Integrated . This state-of-the-art modular rack console offers a space saving, streamlined approach to your rack environment by integrating your LCD monitor, KVM switch, Keyboard, Mouse, and Audio options into one unit taking up only 1U (1.73 in.).

Overview - Raloy RWX119 with VGA Hub KVM

  • Rackmount Console with integrated DB-15 VGA Hub KVM in only 1 rackmount unit.
  • Widescreen 19" Industrial HD LCD. Max. resolution: 1440 x 900.
  • USB 2.0 port sharing USB peripheral for computers
  • DB-15 VGA Hub 3-in-1 cables included (p/n RCB-6).
  • Combo interface: mix PS/2, USB & SUN with Multi-Platform switch capability.
  • Advanced user profiles and configurable OSD hot key combinations.
  • 24 Month Limited Warranty - Extended Warranties available for purchase

Raloy RWX119 Certifications

Features - Raloy RWX119 with Integrated VGA Hub KVM

  • Raloy RWX119 HKVM USB Peripheral Hub

    USB 2.0 Peripheral Hub

    Raloy RWX119 DB-15 VGA Hub KVMs features a front USB Peripheral hub port that let you share USB 2.0 peripheral devices, storage devices, CAC readers, printers, bootable ISO, and any other USB 2.0 devices, among multiple computers connected to the KVM.

    Compare KVMs

  • Raloy RWX119 DB-15 VGA Hub KVM High-Contrast Widescreen Display

    High-Contrast Widescreen Display

    The Raloy RWX119 features a 19" widescreen High-Contrast LCD delivering up to 1440 x 900 resolution. DDC2B emulation allows the video settings of the connected computer to be automatically adjusted for optimal display on the console monitor.

  • Raloy RWX119 DB-15 VGA Hub KVM Multi-platform support

    Multi-platform support

    The Raloy RWX119 is designed to be driver-free and works with all known software and computer platforms, including Windows (all), Mac (all), DOS, Linux, Unix, BSD, Sun OS (all), NetWare, etc. RWX119 supports USB, PS2 and Sun keyboard/mouse interfaces.


  • CatX KVM Receiver for Raloy RWX119 DB-15 VGA Hub KVM

    Integrated CATx extender
    (0 or 1 Remote Users)

    Raloy Cat6 KVMs can be optionally controlled by one to three users from up to 500ft (150m) away over CATx cable using the integrated CATx extender with the included KVM receiver.

  • Raloy RWX119 DB-15 VGA Hub KVM IP Web Browser Access

    IP Web access to severs
    (0 or 1 VNC / HTTPS Users)

    Use a VNC Viewer or Java Web Browser to connect to servers remotely from anywhere in the world. This IP based method employs enterprise grade security using AES encryption and RSA public key authentication. VNC over IP sessions support resolutions up to 1920 x 1080p.

  • Raloy RWX119 DB-15 VGA Hub KVM UL Certification

    High-quality Build with Certifications for any application

    This Raloy console has been tested and approved for UL, CE, FCC, RoHS Certifications for IT, manufacturing, SOHO, commercial, military, government, and surveillance applications. For TAA Compliant applications, raloys drawers are assembled and tested in California, USA.


  • Raloy RWX119 DB-15 VGA Hub KVM Built-to last - MTBF 50,000 Hours

    Built-to last - MTBF 50,000 Hours

    Tired of low quality TrippLite and Vertiv consoles that break in months? Raloys console drawers have been designed and tested to be highly reliable. As the oldest rack console manufacturer, Raloy has had millions of hours of real application usage of its console drawers and is commited quality.

  • Raloy RWX119 DB-15 VGA Hub KVM 2nd Generation Efficient Design

    2nd Generation Efficient Design

    A decade of testing rack mount monitors led Raloy to their next generation refined design including:

    • Moulded front handle for easy access and use
    • New streamlined and enhanced aesthetics
    • Direct replacement to older generation RW119-N-101

Choose your Integrated DB-15 Hub KVM

Raloy RWX119 with Matrix DB-15 VGA KVM
DB-15 VGA KVM
16 Ports8 PortsLocal
Users
IP Web
Users
Extended
Users
RWX119-HKVM10016RWX119-HKVM10008100
RWX119-HKVM10116RWX119-HKVM10108110
RWX119-HKVM11016RWX119-HKVM11008101

RWX119 with DB-15 Hub KVM Package Contents

Raloy RWX119 Package Contents

  • (1) RWX119 Rack Console
  • (1) 1U, 19" Rack mount kit w/ brackets & screws
  • (8-16) RCB-6 VGA/USB console cable
  • (0-1) KVM receiver for extended console
  • (0-1) RCB-6 VGA/USB console cable - for receiver
  • (1-2) US Power Cord (console + one for each receiver)
  • (1) 24 Month Limited Warranty
    - Extended Warranties available for purchase
  • *Additional parts may be included based on options

Instructional Media

RWX119 Diagram

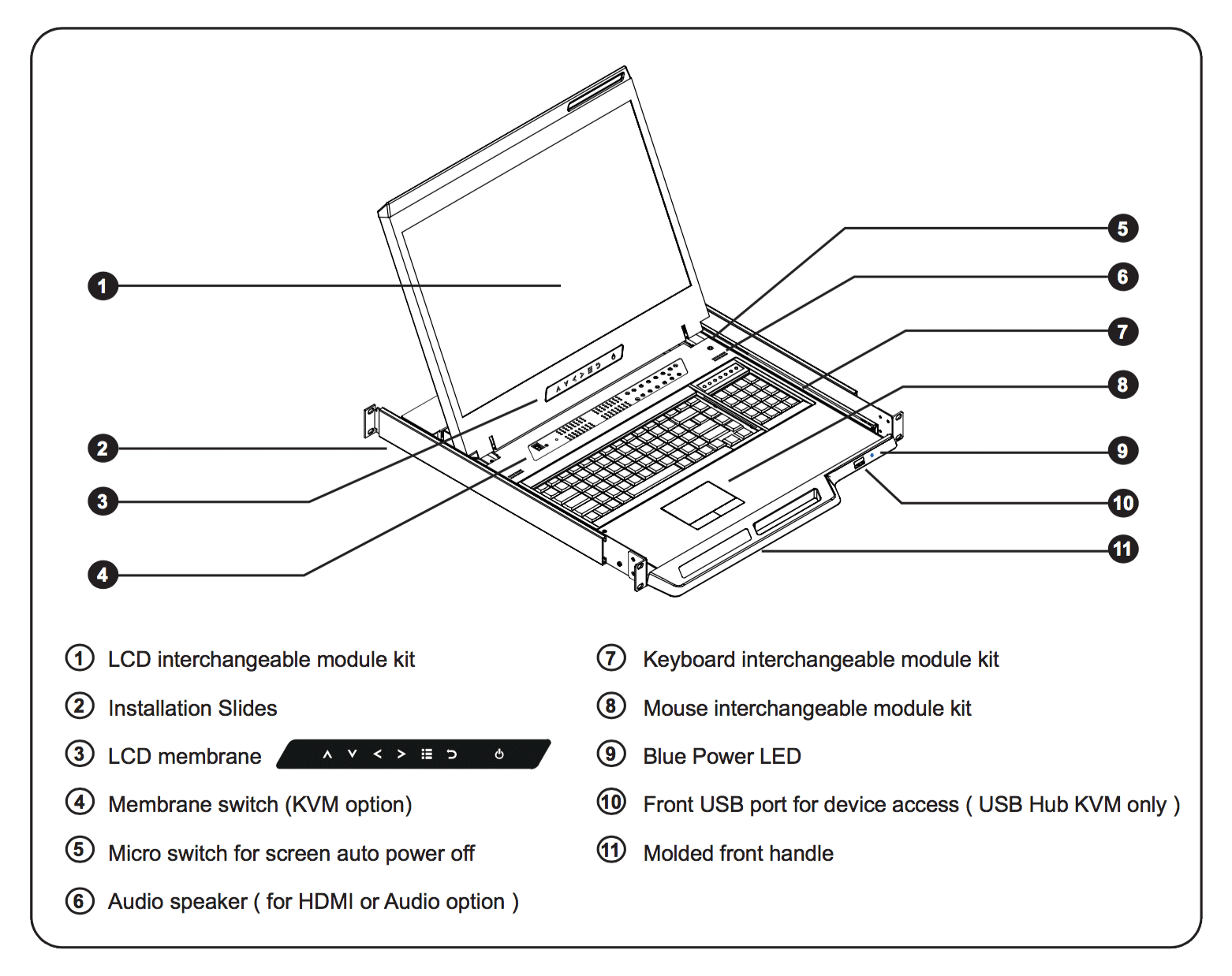

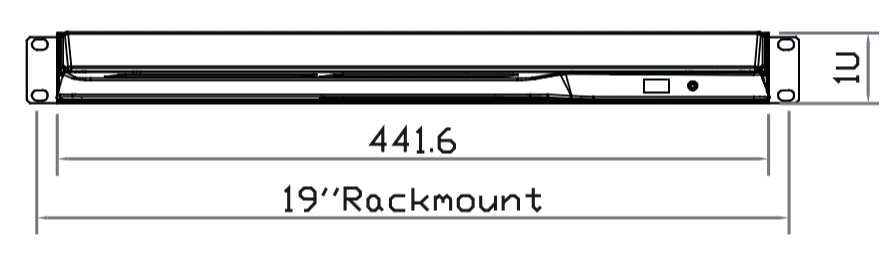

RWX119 Front View

RWX119 DB-15 VGA Hub KVM Multi-User IP Diagram (1 Local, 1 Extended, 1 IP User)RWX119 DB-15 VGA Hub KVM Multi-User Diagram (1 Local & 1 Extended)

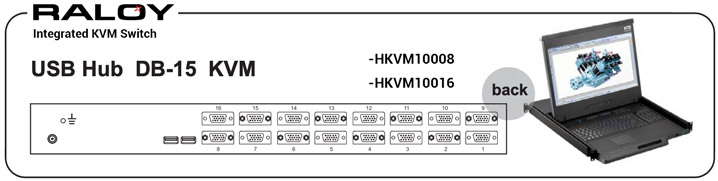

RWX119 Integrated DB-15 VGA Hub Combo KVM

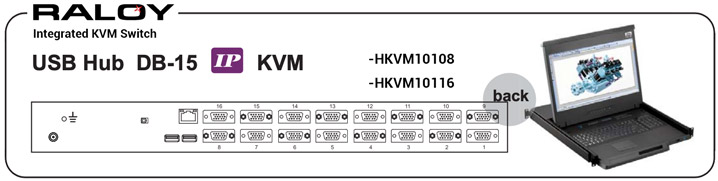

RWX119 Integrated DB-15 VGA Hub Combo IP KVM

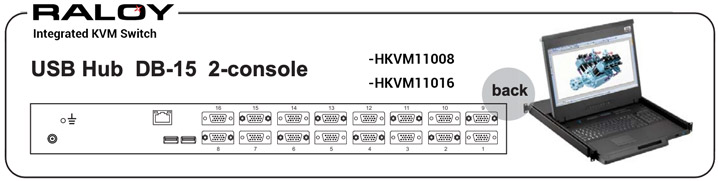

RWX119 Integrated DB-15 VGA Hub Combo KVM with 2 Consoles

RWX119 DB-15 VGA Hub KVM Multi-User Diagram (1 Local & 1 Extended)

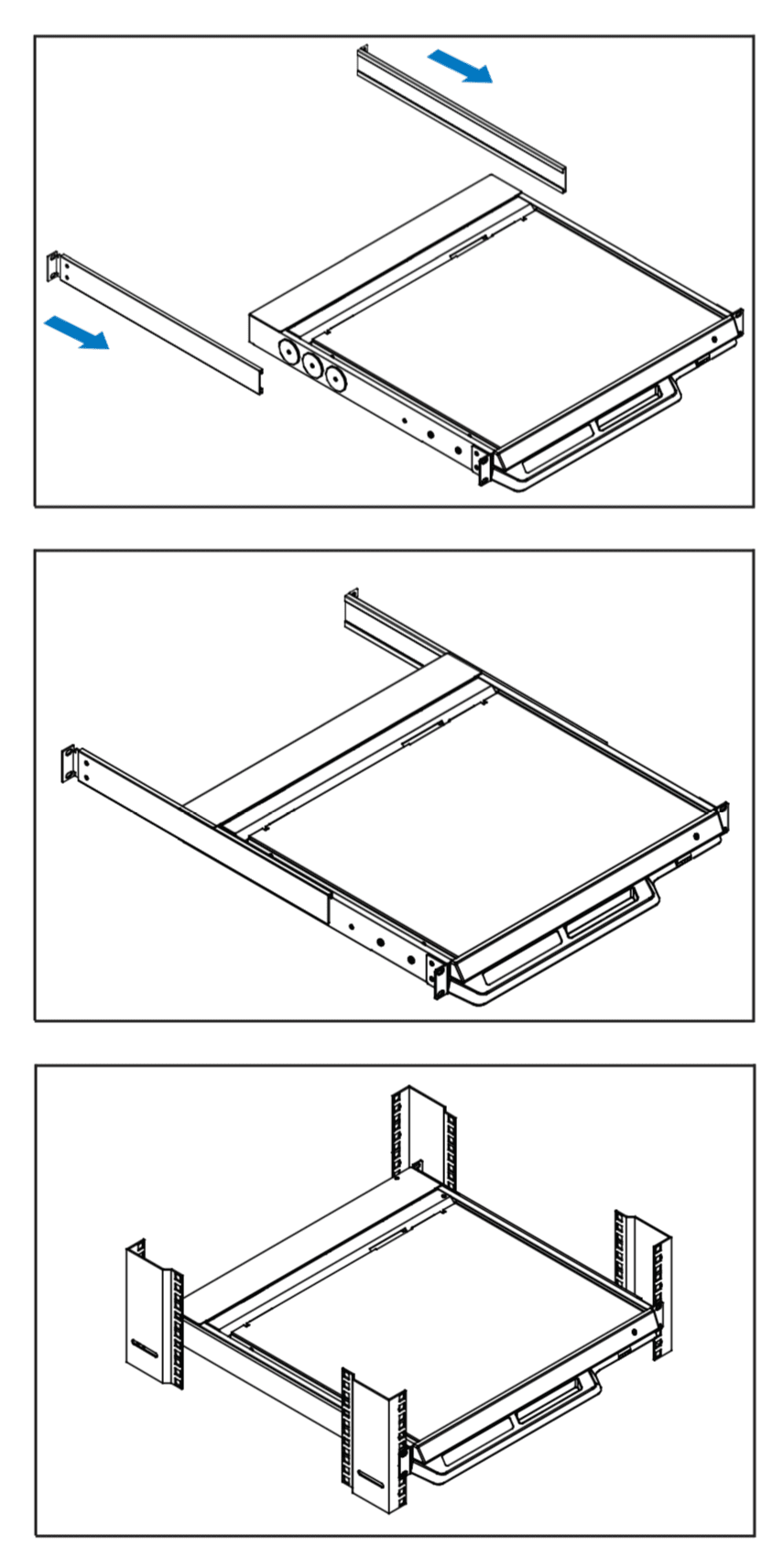

RWX119 Installation Diagram

Raloy RWX119 with DB-15 VGA Hub KVM Specifications

Mechanical
Height 1.73 in. (44 mm.)
Width 17.4 in. (442 mm.)
Depth22.8 In. (579.1 mm.)
Package Dimensions23.2 x 30.2 x 5.5 in.
(590 x 768 x 140mm)
Mounting Depth23.5 in. (min) to 34.5 in. (max)
(596.9 to 876.3 mm)
Form Factor1U rack mounting on slide-out rails
Net Weight28 lbs. (12.5 kg.)
Gross Weight40.5 lbs. (18.4 kg.)
Environmental
Operating Temperature32 to 122°F
(0 to 50°C)
Storage Temperature23 to 140°F
(-5 to 60°C)
Relative Humidity5~90%, non-condensing
Shock10G acceleration (11ms duration)
Vibration5~500Hz 1G RMS random vibration
Power
InputAuto-sensing 100 to 240VAC,
50 / 60Hz
ConsumptionMax. 48 Watt, Standby 5 Watt
LCD Display
Diagonal Size19" Widescreen TFT
Max. Resolution1440 x 900
Brightness (cd/m2)300
Color Support16.7 Mil.
Contrast Ratio (typ.)1000:1
Viewing Angle (H/V)160° x 160°
Display Area (mm)408 x 255
Response Time (ms)5
VGA Signal InputAnalog RGB, 0.7Vp-p
Sync. TypeSeparate H/V, Composite, SOG
Resolution1440 x 900 x 60Hz
1280 x 1024 x 60 / 75Hz
1280 x 960 x 60Hz
1280 x 760 x 60 / 75Hz
1152 x 864 x 75Hz
1024 x 768 x 60 / 70 / 75Hz
848 x 480 x 60Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
640 x 400 x 70Hz
640 x 350 x 70Hz
Plug & Play DDCEDID 1.3
Console PortVGA + USB or PS/2, server end
DB15 (VGA, USB KB/MS), console side
CompatibilityMix various PC, SUN, MAC, IBM,
HP & DELL servers
Regulation ApprovalcUL (console), FCC & CE certified
RoHS2 & REACH compliant
Question: Can you provide me with the following parameters for the RWX119-HKVM10108e Rackmount console with KVM: 1. Operating Altitude (e.g., can it operate as designed at altitudes/elevations up to 10,000 ft above sea level?) 2. Non-Operational Humidity 3. Non-Operational Altitude
Answer: Thank you for your inquiry,

The RWX119 does work in 10,000 ft elevation. Please see the RWX119 environmental specifications table below for your requested altitude and humidity information.

Raloy RWX119 Environmental Specifications
Operating Temperature32 to 122°F (0 to 50°C)
Storage Temperature23 to 140°F (-5 to 60°C)
Operating Humidity20~90%, non-condensing
Relative Humidity5~90%, non-condensing
Operating Altitude16,000 ft
Non-operating Altitude40,000 ft
Shock 10G acceleration (11ms duration)
Vibration5~500Hz 1G RMS random vibration


Please let us know if there is anything else we can ever help you with!
