4 x USB 2.0 Over IP Extender, up to 330 ft.

USB-IP-4

$155.00

Discontinued
Recommended replacement: NTI USB-IP-4LC
Alternative options: Contact Us

The XTENDEX USB Over IP Extender allows Windows PCs to connect to four USB devices on the same subnet, eliminating the need for locally-attached host PCs. Software drivers are loaded onto a host PC or server, enabling remote devices to communicate with the host, without changing existing application software. USB peripheral devices can be centrally managed and monitored from a remote server or PC via the included USB server software.

Features & Benefits

  • Extends USB cabling distance to 330 feet (100 meters).
  • Transfer data over a 1000Base-T Gigabit Network.
    • Will not communicate to another subnet
  • Creates systems redundancy and increases security since host PC can be placed in a remote location.
  • Access and monitor devices over a TCP/IP connection.
  • Simplifies operations and reduces IT support.
  • Supports true plug-and-play functionality.
  • USB 1.0, 1.1, and 2.0 compatible.
  • Acquires IP address via DHCP when plugged in.

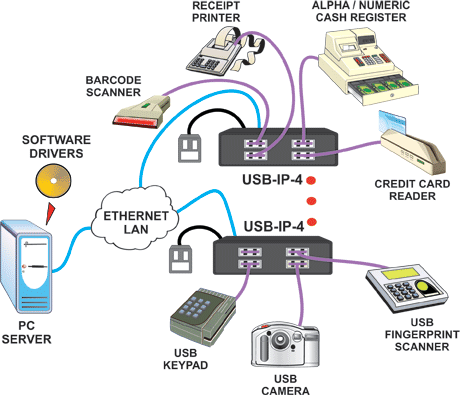

Product Use Diagram

Specifications

Local USB
Connectors(4) Female USB Type A;
Local Access
Connectors(1) Female USB Mini Type B for Direct-PC; Local and Network are not available concurrently
Network Access
Connectors(1) RJ45 for Network; Does not support 64-bit systems; Supports 10/100/1000 Base-T networks
CommunicationFull Duplex Data
Data Transfer Rate115,200 baud up to 3,935 feet (1,200 meters)
921,600 baud up to 328 feet (100 meters)
Mechanical
Width4.69 in (119 mm)
Depth3.46 in (88 mm)
Height0.98 in (25 mm)
Power
Input100-240 VAC 50/60Hz via AC Adapter
Consumption6.2W
Environmental
Operating Temperature32 to 104°F (0 to 40°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Humidity20 to 90% RH, non-condensing
ApprovalsCE, RoHS
WarrantyTwo Years
