Low-Cost 4 x USB 2.0 IP Extender via CATx, up to 330 ft.

USB-IP-4LC

$100.00$91.95
Save $8.05
FREE Shipping on orders over $100

The XTENDEX USB Over IP Extender allows Windows PCs to connect to four USB devices on the same subnet, eliminating the need for locally-attached host PCs. USB peripheral devices can be centrally managed and monitored from a remote server or PC via the web interface. USB-IP-4LC supports USB devices such as USB hard drives, USB flash drives, USB card readers, USB webcams, USB scanners, USB to serial converters, USB multi-function printers (MFP), or other USB devices to be shared on a network.

Features & Benefits

  • Extends USB cabling distance to 330 feet (100 meters).
    • Extend past 330 feet (100 meters) by connecting multiple hubs/switches within the same subnet.
  • Transfer data over a 1000Base-T Gigabit Network.
    • Will not communicate to another subnet.
  • Creates systems redundancy and increases security since host PC can be placed in a remote location.
  • Access and monitor devices over a TCP/IP connection.
  • Simplifies operations and reduces IT support.
  • Supports true plug-and-play functionality.
  • USB 1.1 and 2.0 compatible.
  • Acquires IP address via DHCP when plugged in to a network.
    • IP address can be changed.
    • Once a static IP address is assigned, it can be directly connected to the LAN port of a PC - no crossover cable required.

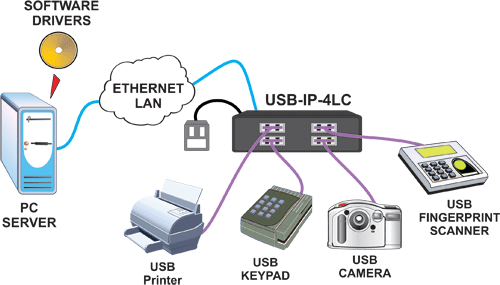

Product Use Diagram

Specifications

Local USB
Connectors(4) Female USB Type A; Compatible with bulk or interrupt type devices; up to 480Mbps
Local Access
Connectors(1) Female USB Mini Type B for Direct-PC; Local and Network are not available concurrently
Network Access
Connectors(1) RJ45 for Network; Supports 10/100/1000 Base-T networks
Mechanical
Width3.75 in (95 mm)
Depth2.68 in (68 mm)
Height0.92 in (23 mm)
Power
Input100-240 VAC 50/60Hz via AC Adapter
Consumption5W
Environmental
Operating Temperature32 to 104°F (0 to 40°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Humidity0 to 80% RH, non-condensing
ApprovalsCE, FCC, RoHS, TAA
WarrantyTwo Years
