Dual Link DVI and Transparent USB Over A Single CATx Cable


Save $126.00
Video Input: Dual Link DVI
Video Output: Single Monitor
Max Distance: 150 Feet - CATx
FREE Shipping on orders over $100

ADDERLink X-DVIPRO-DL-US is a high performance KVM (Keyboard, Video, Mouse) extender that enables you to locate your critical computing hardware in a secure and temperature controlled environment away from the user work station, whilst maintaining the same user experience. It can transmit a dual link video stream, USB 2.0 and analog audio over a single CATx cable.

Adder X-DVIPRO-DL-US Application Diagram
  • Short-haul USB KVM extender, up to 164 ft (50 m)
  • Dual-link DVI video, transparent USB, and stereo audio over single CATx wire
  • High video quality up to 2560 x 1600 (60Hz)
  • CD quality stereo audio
  • 4-port USB 2.0 hub at receiver

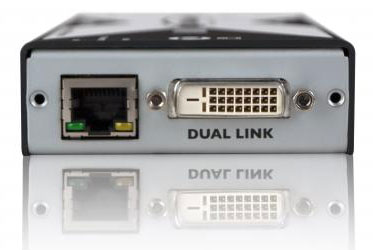

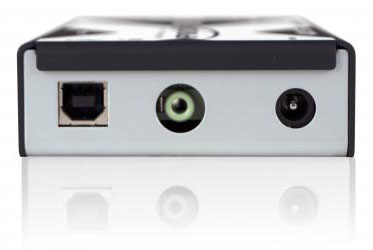

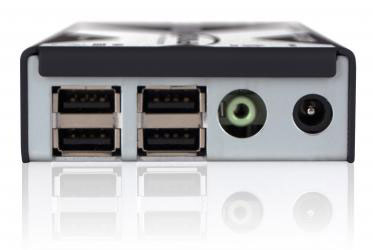

Adder X-DVIPRO-DL-US Transmitter Front, and Receiver Back View
Adder X-DVIPRO-DL Transmitter Front & Receiver Back View
See Detailed Layout

Adder X-DVIPRO-DL Features

  • Adder X-DVIPRO-DL Dual-link DVI Video

    Dual Link resolutions, Real Time Control

    The X-DVIPRO-DL allows you to remote your monitor with resolutions up to 2560x1600 @60Hz up to 164 feet (50 meters) away from your computer. Using a visually lossless technique, no visible artefacts or latency are introduced allowing you to be certain of quality and control.

  • Adder X-DVIPRO-DL 4-Port transparent USB 2.0 Hub

    Transparent USB 2.0 Hub (4-Port)

    USB 2.0 Enables connection of any human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks, 3D explorers and mass storage devices. Full speed (12 Mbps) isochronous devices are also supported.

  • Adder X-DVIPRO-DL Extend Dual-link DVI KVM up to 164ft (50m) extension over single CatX cable

    Up to 164ft (50m) over single CATx cable

    Video, USB 2.0 (low and full speed) and audio pass along a single cable, providing up to 164ft (50 meters) of extension. Distance is dependent upon video resolution, CATx cable type and the number of connection breaks for patch panels and wall plates. See table on reverse for details

  • Adder X-DVIPRO-DL Stereo CD quality audio

    Bidirectional analog audio

    Stereo CD quality audio (stereo channel 16 bit sampled at 44.1 kHz) is available to transfer audio from local to remote for line out. 8 channels of HDMI audio are also supported with sample sizes of 16, 20 or 24 bits up to 192kHz (simultaneously with the analog jack audio).

  • Adder X-DVIPRO-DL Power efficiency

    Power efficiency

    The X-DVI PRO DL extender is designed to be highly power efficient and consumes <6 watts per point.

  • Adder X-DVIPRO-DL DDC Management

    Extended profile DDC EDID

    The AdderLink X-DVI PRO DL extender is delivered in a zero config state so you can plug the units in and start working with them straight away. There is no need for drivers or software to be installed.

  • Adder X-DVIPRO-DL Plug and Play

    Plug and Play

    The AdderLink X-DVI PRO DL extender is delivered in a zero config state so you can plug the units in and start working with them straight away. There is no need for drivers or software to be installed.

  • Adder X-DVIPRO-DL multi-platform

    Fully platform independent

    The ADDER X-DVIPRO-DL supports fully transparent USB connections and is able to support all common hardware platforms including PC, Sun and MAC and their associated peripherals.

  • Adder X-DVIPRO-DL Built to last

    Built to last

    Adder Technology have a well-earned reputation for creating products that perform well. The AdderLink X-DVI PRO DL is no exception and features tough, yet lightweight metallic enclosures to ensure they can easily withstand everyday treatment. The internal components and external connectors too are selected for their reliability in addition to their high performance characteristics.

  • Adder X-RMK-CHASSIS - 16 X-DVIPRO-DL mounted in 2U 19in rack mount kit

    High density rack mount option

    Both transmitter and receiver units can be used stand-alone or up to 16 units to can be mounted into a 2U 19" chassis (X-RMK-CHASSIS).

X-DVIPRO-DL-US Package Contents

Adder X-DVIPRO-DL Package Contents

  • (1) X-DVIPRO-DL Local Transmitter
  • (1) X-DVIPRO-DL Remote Receiver
  • (1) VSC24: 6.6ft / 2m USB cable, type A to B
  • (1) VSCD3V: 6.6ft / 2m dual-link DVI-D video cable (male to male)
  • (1) VSC22: 6.6ft / 2m audio cable (3.5mm jacks)
  • (2) PSU-IEC-5VDC-2.5A 12.5W power adapter + US power cord
  • (1) Safety document
  • (4) Self-adhesive rubber feet
  • (1) 2-Year Limited Warranty & Lifetime World Class Support

Adder X-DVIPRO-DL-US Specifications

Mechanical (Local & Remote)
Width4.7 in. (120 mm.)
Height1.0 in. (26 mm.)
Depth3 in. (75 mm.)
Weight0.7 lb. (319 g.)
Power2.5mm DC jack (power adaptor included), 100-240VAC 50/60Hz, 0.4A, input to power adaptor, 5VDC 12.5W output from power adaptor
Software CompatibilityAll known operating systems
Connectors (local/remote)
Local endDVI-D, USB B, optional power jack, RJ45
Remote endDVI-D, 4 x USB A, power jack, RJ45
PowerLocal interface powered, optional +5V DC; remote end +5V DC
Operating Temperature0 to 40°C / 32 to 104°F
ApprovalsCE, FCC
Cable RecommendationDaetwyler 7702 Flexible patch cable
Daetwyler 7120 Bulk cable
Extension Distance
ResolutionCable TypePatch ConnectionsTotal Distance
2560 x 1600 @ 60HzCAT7050 meters
2560 x 1600 @ 60HzCAT6a (shielded)050 meters
2560 x 1600 @ 60HzCAT5a (shielded)050 meters
2560 x 1600 @ 60HzCAT7240 meters

X-DVIPRO-DL is also known as X-DVIPRO-DL-US, X-DVI PRO Dual Link and X-DVIPRO-DL-USA.
