Digital VGA & USB 2.0 KVM extender (DVI Transmitter + VGA Converter)

ALIF1002AT-US

$1,600.00$1,513.00
Save $87.00
Series: INFINITY 1002
Unit: ALIF1002T DVI Transmitter with DVA VGA to DVI Converter
Video: VGA up to 1080p
FREE Shipping on orders over $100
For Government Pricing
Contact Us

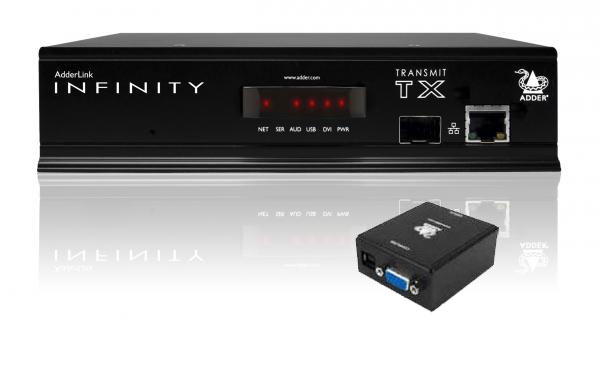

ALIF1002AT with Adder DVA VGA to DVI Converter

ADDERLink Infinity ALIF1002AT is a kit including a high performance single-link DVI, USB and Audio KVM Transmitter (ALIF1002T) + a VGA to DVI-D Module (Adder DVA). ALIF1002AT transmitter requires at least one ALIF1002R receiver to operate.

Part of the ADDERLink INFINITY series, ADDERLink Infinity 1002 is a high performance KVM extender that enables you to locate your critical computing hardware in a secure and temperature controlled environment, isolated from the user work station. Configurable as a single head or single link, this extender provides pixel perfect video with minimal lag across a distance of up to 6.21mi (10km) via interchangeable CatX and Fiber SFP modules. This KVM extender can be used as a point-to-point extender, or integrated into a wider matrix system when combined with the ADDERLink INFINITY Manager (A.I.M.).


ALIF1002AT Transmitter
ALIF1002AT Transmitter

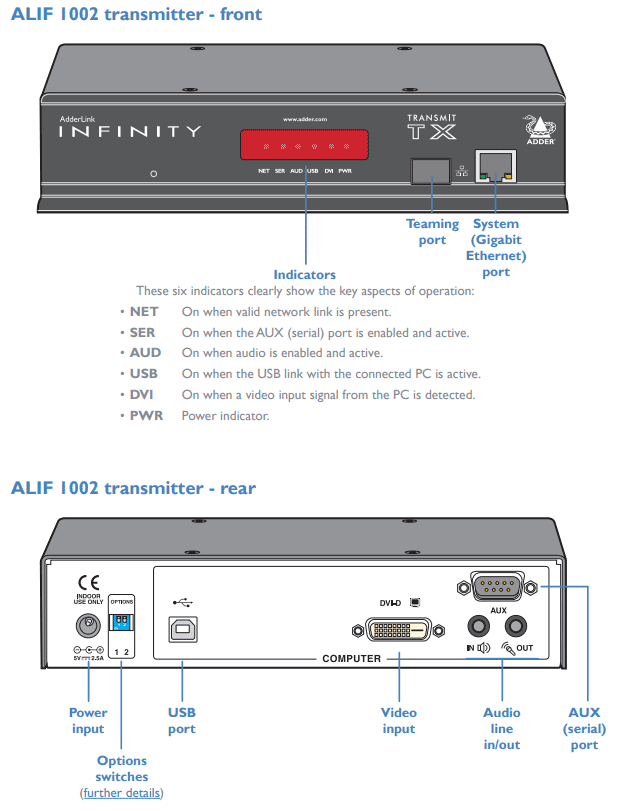

See Detailed Layout

  • Single head VGA (via included adapter) or DVI configuration
  • 1920 x 1200 @ 60Hz (24 bits per color) maximum resolution with minimal lag
  • Flexible solution: from point-to-point extender to an infinitely extensible matrix used for IT administration or broadcast
  • Unlimited extension via swappable SFP modules:
    • 330ft (100m) extension distance on single CATx
    • 1,640ft (500m) to 6.21mi (10km) extension over fiber
    • Unlimited extension using standard IP network
  • USB 2.0 with Emulation and class control: for faster keyboard and mouse switching plus support for USB mass storage, tablet, touch and more
  • Adaptable to suit your needs: delivers uncompressed digital video with audio, and option to compress video to minimize bandwidth usage over copper or fiber
  • Built-in security measures: compliant with universal enterprise grade security standards (AES 256 bit encryption and RSA 2048 bit public key authentication)

Adder ALIF1002AT Features

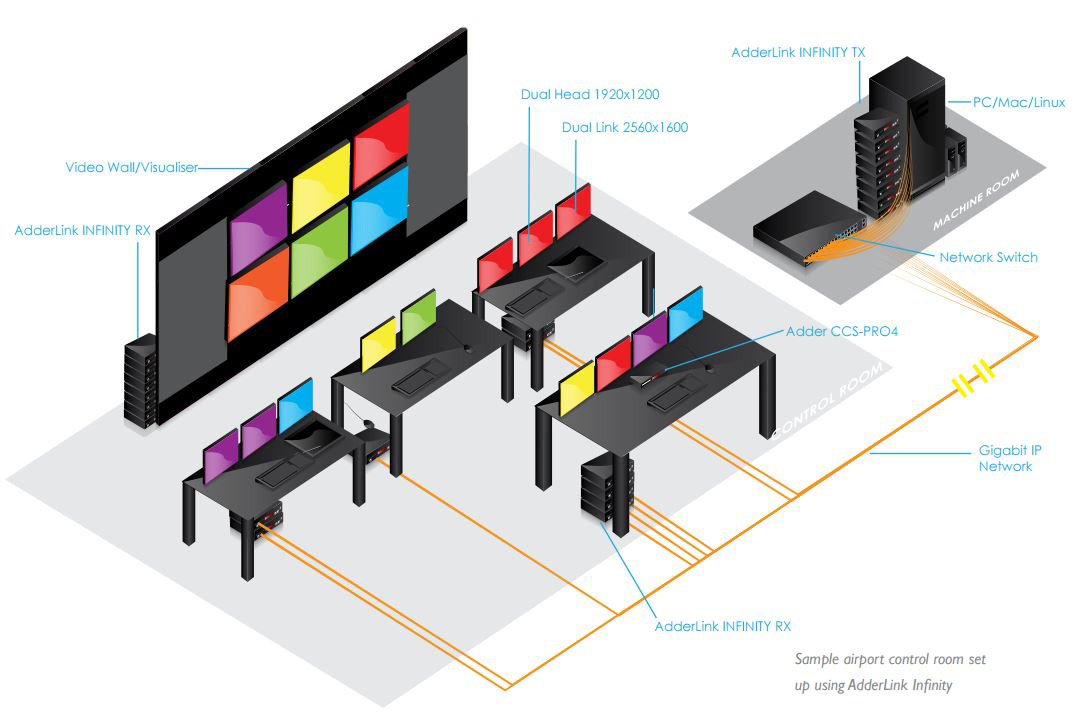

  • Adder ALIF1002AT Use Case

    Infinite Flexibility

    With the addition of AdderLink Infinity management system (A.I.M.), you can turn multiple point-to-point extenders into a truly scalable digital KVM matrix system that allows any workstation to link with any computer connected to the network.

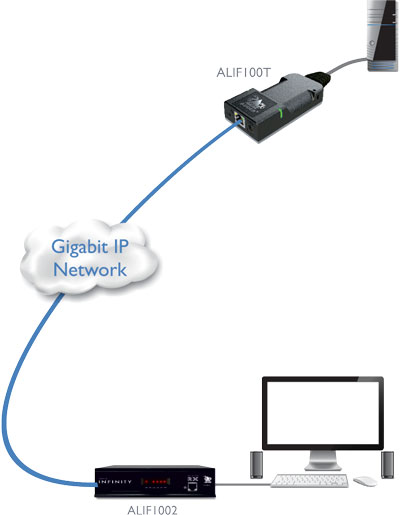

    • Point-to-point extension (local / over-IP)

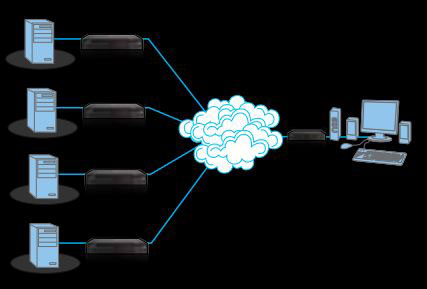

    • AV / KVM Switch multi-point matrix (over-IP)
    • Sharing a single target (over-IP)

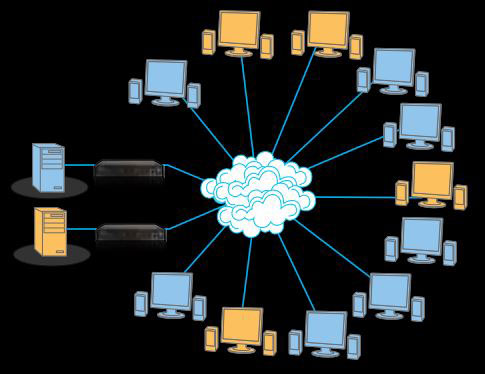

    • Multicasting to many receivers (over-IP)

    Learn more

  • Adder ALIF1002AT  Perfect digital IP video broadcast, real time control

    Perfect digital video, real time control

    Using a spatially-lossless encoding system, with 1:1 pixel mapping, AdderLink Infinity provides pixel perfect and color accurate video with no artefacts. The digital video you receive is the same as the digital video leaving the remote computer.


  • Adder Multimode SFP Module

    Single CATx or Fiber cable with immunity from interference

    The AdderLink Infinity units were designed from the outset around a highly robust signaling method. This vital core asset is what gives you the freedom to use the full variety of cable links that you typically find within an average structured cabling system. The result is that you can achieve reliable links, regardless of whether the cables are CAT5e, CAT6 or CAT7. The AdderLink Infinity also offers the option of up to 6.21mi (10km) distances with fiber.

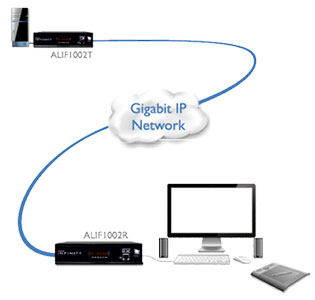

  • Adder ALIF1002AT Extension Over IP Diagram

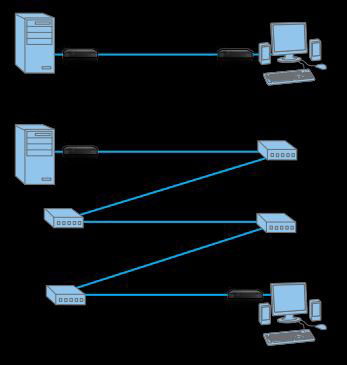

    Unlimited extension distances

    Extension distance is not limited to a single 330 foot (100 meter) cable length - If you need to extend further, simply add a 1GbE network device to achieve an additional 330 feet (100 meters). This can be repeated many times. The units are also fitted with SFP cages to accept fiber optic transceivers which enable much greater extension distances.


  • Adder ALIF1002T USB 2.0 with emulation and class control

    USB 2.0 with emulation and class control

    Enables connection of USB devices from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers, alongside mass storage devices. True USB Emulation Technology allows for faster keyboard and mouse switching. For applications where security is of high importance, the system has the ability to disable the use of non-HID devices, meaning there is no need to physically block USB ports to prevent the use of mass storage devices.


  • Adder ALIF1002AT Enterprise-grade security

    Enterprise-grade security

    Adder Infinity units have built-in security measures compliant with universal enterprise grade security standards inlcuding AES 256 bit encryption and RSA 2048 bit public key authentication.

  • Adder ALIF1002AT EDID Management - Ensure Perfect Match Between Source & Display

    Intelligent EDID management

    Intelligent EDID management allows the true characteristics of the monitor to be passed back to the computer. This ensures perfect video display without the additional configuration.

  • Adder ALIF1002AT Redundant network

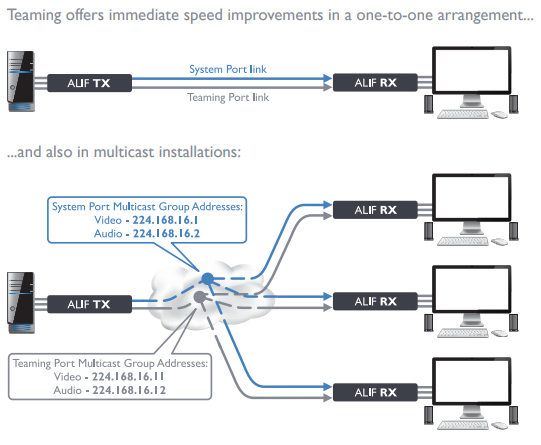

    Redundant network operation

    The units are able to detect whether the network is in operation and can automatically change to its second network port if it detects a failure


  • Adder ALIF1002AT - Mac + Dithered Video Support

    Support for MacPro (Dithered Video)

    Some graphics cards use a technique called dithering to give the appearance of a deeper color depth than is actually the case. As a result, dithering can significantly increase the normal video data rates. ALIF1002AT has a feature called Magic Eye which supports dithering without allowing it to degrade overall link performance.

  • Adder ALIF1002AT Plug and Play

    Plug and Play

    AdderLink Infinity extender devices are delivered in a zero configuration state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.

  • Adder ALIF1002AT Mounting

    Flexible mounting options

    Adder Infinity units can be rack mounted (1 unit in 1U with RMK4S, or 2 units side-by-side in 1U with RMK4D-R2), left on a desktop, wall mounted (RMKV4), or attached to the back of your monitor using a VESA mounting carriage (RMKV4).

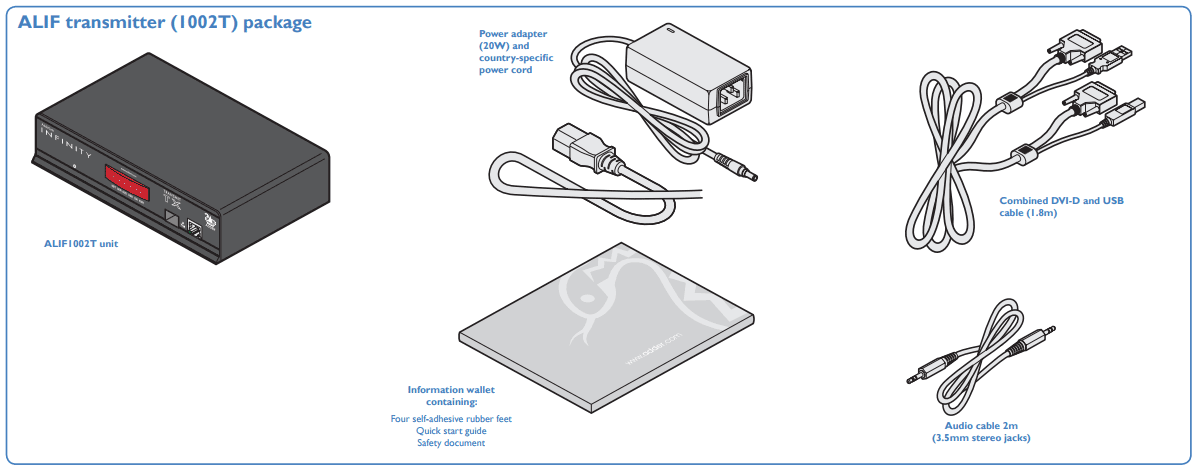

ALIF1002AT Package Contents

Adder ALIF1002AT Package Contents

  1. (1) ALIF1002T Transmitter
  2. (1) Adder DVA: VGA to DVI-D Adapter
  3. (1) 6ft Combined DVI-D and USB cable
  4. (1) 6.6ft Audio cable (3.5mm stereo jacks)
  5. (1) Power adapter (20W) and country-specific power cord
  6. (4) Self-adhesive rubber feet
  7. (1) Quick start guide and Safety document
  8. (1) 2-Year Limited Warranty & Lifetime World Class Support


Adder ALIF1002AT Specifications

Mechanical*
Height 1.76 in. (44 mm.)
Width 7.92 in. (198 mm.)
Depth6.0 in. (150 mm.)
Net Weight2.7 lbs. (1.1 kg.)
Environmental
Operating Temperature0 to 40°C / 32 to 104°F.
Power2.5mm DC jack (power adapter included),
100-240VAC 50/60Hz, 0.8A, input to power adapter. 5VDC 20W output from power adapter.

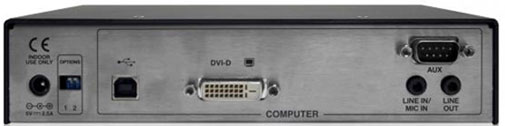

Computer connections1 x DVI-D,
audio 3.5mm in,
audio 3.5mm out,
 USB type B,
 RS232 9-pin D-type.
 1 x 8p8c and 1 x SFP for
AdderLink Infinity network connections
CompatibilityAll computers with DVI-D, USB,
Audio, RS232 - requirement dependent.
Regulation ApprovalCE, FCC

This part is also known as the ALIF1002AT-US.
