Icron Spectra 3022 - 2 Port USB 3.0 Multimode Fiber Extender (330 ft)

00-00327

$799.00$723.75
Save $75.25
Ports: Extend up to 2 USB Devices up to 330 ft via Multi-Mode Fiber
FREE Shipping on orders over $100

The Icron USB 3.0 Spectra 3022 (00-00327 or SP3022) is a two port USB 3.0 SuperSpeed extension solution, enabling USB 3.0 connections at up to 5Gbps over 330ft/100m* of multimode fiber optic cable. The Spectra 3022 features two locking USB 3.0 ports delivering 900mA power to each port perfectly suited for USB3 Vision camera applications, and comes with a two year warranty. Note, backward compatibility to USB 2.0/1.1 is not supported.

USB 3.0's distance is specified at 10 feet / 3 meters. When greater distances are required, consider the USB 3.0 Spectra 3022 which supports USB 3.0 5Gbps throughputs up to 300 feet / 100 meters over OM3 multimode fiber optic cabling. A true plug-and-play solution, the Spectra 3022 is compatible with all leading operating systems and features two locking USB ports and a locking power connector. The Spectra 3022 is warranted for 2 years from the date of purchase and is USB3 Vision compliant. Backward compatibility to USB 2.0/1.1 is not supported by this particular extender.

**Note: backward compatibility to USB 2.0/1.1 is not supported. For backward compatibility, see the Icron Raven series.

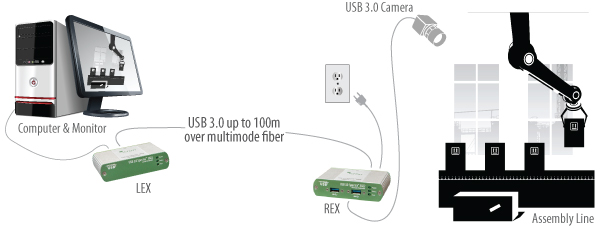

Icron 00-00327 USB 3.0 Spectra 3022 Application Diagram
Icron USB 3.0 Spectra 3022 Application Diagram

Icron USB 3.0 Spectra 3022 Features

  • Up to 150ft / 50m extension for USB 3.0 storage devices and 330ft / 100m for USB 3.0 cameras
  • Delivers speed, isolation and security over multimedia fiber
  • USB 3.0 throughputs of up to 5Gbps
  • Rugged locking USB and power connectors
  • Integrated 2-port hub
  • Works with AIA USB3 Vision compliant devices
  • ExtremeUSB® suite of features:
    • Transparent USB extension
    • True plug and play; no software drivers required
    • Works with all operating systems: Windows®, Mac OS X®, and Linux®
  • 2 year warranty
  • Rack mountable option

Spectra 3022 (00-00327) Package Contents

Whats Included In the Box? Icron Spectra 3022 (00-00327) Package Contents

  1. (1) Icron USB 3.0 Spectra 3022 Transmitter (LEX)
  2. (1) Icron USB 3.0 Spectra 3022 Receiver (REX)
  3. (1) 6ft / 2m USB 3.0 Type A to Type B cable
  4. (1) Locking Power Adapter and US-specific Power Cord
  5. (1) Quick Start Guide
  6. (1) 2-Year Standard Warranty

Icron Spectra 3022 (00-00327) Specifications

Mechanical
REX Dimensions100mm x 76mm x 26mm (3.94″ x 2.99″ x 1.02″)
LEX Dimensions100mm x 76mm x 26mm (3.94" x 2.99" x 1.02")
Environmental
Operating Temperature0°C to 40°C (32°F to 104°F)
REX
USB Connectors2 x USB 3.0 Type A Locking Receptacles
Link Connectors2 x LC Connectors
Power Supply100-240V AC Input, 24V DC, 1A Output, Locking, 2.5 mm, center-positive
Available Current:900mA for each USB Port
LEX
USB Connector

1 x USB 3.0 Type B Locking Receptacle

Link Connectors2 x LC Connectors
Compliance
EMCFCC (Class B), CE (Class B)
EnvironmentRoHS2 (CE)
Question: I'm looking for something just like this but will do 3.0 and 2.0. Can you recommend me something?
Answer: Thank you for your inquiry,

We are not currently aware of a 2-Port fiber USB 3.0 extender that is backwards compatible with 2.0. That being said, USB is 3.0 cables are always compatible with USB 2.0 devices, so you could get i.e. the Icron Ranger 2224 or the Icron Ranger 2212, and plug in USB 3.0 as well as USB 2.0 devices.
