Icron Ranger 2324 - 4-Port USB 2.0 Fiber Optic Extender - Multimode (1,640 ft)

00-00411

$1,102.00$983.62
Save $118.38
Extension via: Multi-Mode Fiber (up to 1640 ft)
Ports: Extend up to 4 USB Devices
FREE Shipping on orders over $100

The Icron USB 2.0 Ranger 2324 (00-00411 or RG2324) extends high-speed USB 2.0 connections at up to 480 Mbps over 500m (1,640 ft) of OM2 fiber optic cable and is plug and play - no software drivers required - for all major operating systems: Windows, macOSTM, and Linux. This FCC/CE Class B certified, 4-port, USB 2.0, multimode fiber extender with ExtremeUSB is perfect for: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, USB 2.0 web cameras and any other USB 2.0 or 1.1 device.

The Ranger 2324 incorporates ExtremeUSB technology, enabling users to extend USB beyond the standard 5m cable limit for USB 2.0 peripheral devices. This extender system is composed of two individual units, the LEX and the REX, and has the following key features:

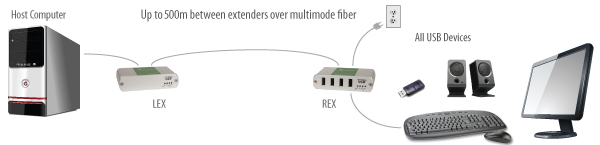

Icron 00-00411 USB 2.0 Ranger 2324 Application Diagram
Icron USB 2.0 Ranger 2324 Application Diagram

Icron USB 2.0 Ranger 2324 Features

  • Supports USB 2.0 throughputs of up to 480 Mbps and distances up to 500m of extension when directly connected over multimode fiber
  • Supplies up to 1 Amp per USB port; 600mA when all four ports are used concurrently
  • Integrated hub provides ports for four USB devices, use hubs to add more
  • Electrical isolation
  • Reliable operation with USB 2.0 and 1.1 devices and hubs
  • Support for new USB 3.0 host controllers and devices (up to 480 Mbps)*
  • Mass Storage Acceleration for USB 2.0 device bulk transfers
  • Includes the ExtremeUSB suite of features:
    • Transparent USB extension
    • Plug and play; no software drivers required
    • Works with all major operating systems: Windows, macOS and Linux
  • Metal enclosures with FCC/CE Class B certification for resedntial/home use

*USB 3.0 devices will perform at USB 2.0 speeds if extended through the Ranger 2324 extender.

Applications

  • Interactive white board
  • Sensor/data acquisition
  • Keyboard and mouse extension
  • Industrial control
  • Digital Signage
  • Medical Device Connectivity
  • Security: web camera, access control

Ranger 2324 (00-00411) Package Contents

Whats Included In the Box? Icron Ranger 2324 (00-00411) Package Contents

  1. (1) Icron USB 2.0 Ranger 2324 Transmitter (LEX)
  2. (1) Icron USB 2.0 Ranger 2324 Receiver (REX)
  3. (1) 6ft / 2m USB 2.0 Type A to Type B cable
  4. (1) Power Adapter and US-specific Power Cord
  5. (1) Quick Start Guide
  6. (1) 2-Year Standard Warranty

Icron Ranger 2324 (00-00411) Specifications

RANGE
Direct Connectup to 500m (1.640 ft) over multimode OM2;
up to 275m (902 ft) over OM1
SPEEDS
USB 2.0Up to 480 Mbps
USB 1.1Up to 12 Mbps
Mechanical
LEX (Local Extender)3.9" x 3.0" x 1.0" (100mm x 76mm x 26.0mm)
REX (Remote Extender)3.9" x 3.0" x 1.0" (100mm x 76mm x 26mm)
Environmental
Operating Temperature32°F to 122°F (0°C to 50°C)
Storage Temperature-4°F to 158°F (-20°C to 70°C)
Operating Humidity20% to 80% relative humidity, non-condensing
Local Extender
LEX unit USB Connector1 x USB Type B Receptacle
LEX unit Link Connector1 x SFP Duplex LC
Mounting4 surface mounting holes or optional mounting kit available
Enclosure MaterialSilver anodized aluminium
Remote Extender
REX unit USB Connector

4 x USB Type A Receptacle

REX unit Link Connector1 x SFP Duplex LC
Available Current at REXup to 1 Amp to USB port; 2.5 Amps total shared
Power Supply100-240V AC Input, 24V 1A DC Output.
Mounting4 surface mounting holes or optional mounting kit available
Enclosure MaterialSilver anodized aluminium
Certifications
EMCFCC (Class B), CE (Class B)
EnvironmentalRoHS2, REACH, Conflict Minerals
Warranty2 year

This is the replacement for the Icron USB 2.0 Ranger 2224 (P/N: 00-00260).

Question: Is the ICRON Power Cord, part number ICRON 21-00015 available with a Low Smoke Zero Halogen (LSZH) outer jacket material? Power cord 21-00015 is the original equipment power cord that comes with the ICRON Ranger 2324 USB Extender unit. Thank you.
Answer: Thank you for reaching out to us,

The ICRON Ranger 2324 (00-00411) is unfortunately not available with this type of power cord.

Please let us know if you have any additional questions!

Question: Please get me to the web site for the Icron 2324 power cable 21-00115
Answer: Thank you for your inquiry,

You can find the Icron 21-00115 power cable on our website here: https://www.kvm-switches-online.com/21-00115.html.

You can also find a little bit of more information regarding Icron power supplies in general here: http://www.icron.com/level-vi-and-new-packaging-faq/.

Please let us know if there is anything else we can help you with!
