Avocent LongView CATx KVM Extender Kit - Dual DisplayPort, USB, & Audio - up to 500ft


Save $1,004.71
Model: DisplayPort, Audio & USB up to 500ft
Video Connections: Dual-Head DisplayPort
FREE Shipping on orders over $100

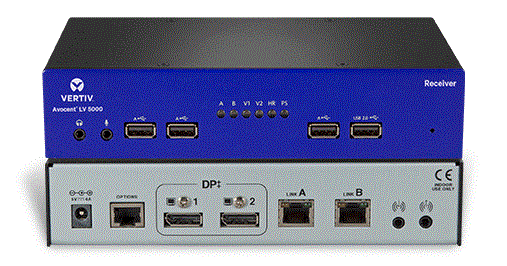

The Avocent (by Vertiv) LV5020P KVM extender kit supports DisplayPort++ Dual Mode video and offers pixel-perfect video resolutions for demanding applications. Users can choose to have a maximum resolution of 3840x2160 (UHD 4K) with a single monitor or 1920 x 1200 (WUXGA) resolution in a dual monitor configuration. Picture quality is delivered through an uncompressed system whereby every pixel of every frame is sent without loss. The LV 5000 does more than just extend system control, it provides a full-function connection that enables up to six USB 2.0 human interface devices including mice, keyboards, graphics tablets, jog shuttles, joysticks and 3D explorers. Mass storage and isochronous devices, such as webcams and headsets, can be used through the transparent USB 2.0 high-speed port.* High-definition audio recording and playback is also supported.

*Full USB 2.0 requires a second cable. Basic keyboard and mouse can share a single CATx video connection.

Avocent LV 5000 Banner


The Avocent LV 5000 series of high performance extender solutions provide an at the desktop experience in environments where conditions make it is advantageous to operate and manage critical business systems from a secure, monitored location. Users can access systems and applications remotely without sacrificing video quality, audio quality or device capability.

LV5020P - Display Port Dual Mode (DP++) up to 3840x2160 (UHD 4K)

High-definition Display Port Video

Supports Display Port Dual Mode (DP++) and can transmit maximum resolution of up to 3840x2160 (UHD 4K)with a single monitor, or two 1920 x 1200 (WUXGA) video streams in a dual monitor configuration.

LV5020P - Connect up to six USB Hub dvices

(6) High-speed USB 2.0

Enables connection of up to six USB human interface devices including mice, keyboards, graphics tablets,touchscreens, jog shuttles, joysticks, 3D explorers, mass storage devices and isochronous devices like webcams and headsets.

LV5020P - Easy Plug & Play Configuration

Plug and play

The LV5000 Series extenders are delivered in a zero configuration state so you can plug them in and start working right away. There's no need for drivers or software to be installed. (Full USB 2.0 requires a second cable)

LV5020P - HD-quality Audio with S/PDIF input

HD-quality Audio

High definition analog stereo audio input and output. S/PDIF input also supported.

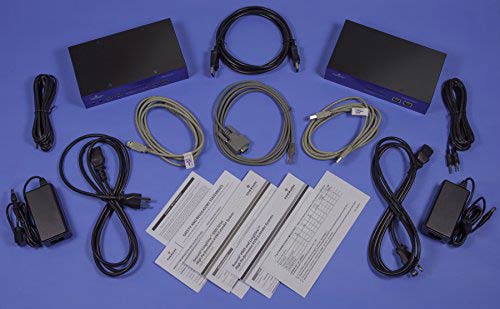

Avocent LV5020P Package Contents

Avocent LongView 5000 LV5020P Package Contents
  1. (1) Transmitter (LV5020TX)
  2. (1) Receiver (LV5020TX)
  3. (2) 5VDC Power Supply
  4. (1) DisplayPort Cable
  5. (2) USB A-to-B Cable
  6. (1) RS232 Cable
  7. (1) Quick-Start Guide
  8. (1) 2-Year Limited Warranty (Expandable to 4-Years)

Avocent LV5020P Resources

Avocent LV5020P Brochure Screenshot Avocent LV5020P Brochure (PDF)
LV5020P Software Downloads (Link)

Avocent (Vertiv) LV5020P-001 Specifications

Height 1.76 in. (44 mm.)
Width 7.92 in. (198 mm.)
Depth4.8 in. (120 mm.)
Weight1.65 lbs. (0.75 kg.)
ConstructionCompact case, robust metal construction
Operating Temperature0ºC to 40ºC / 32ºF to 104ºF
Connection2.5mm DC jack (power adapter included)
Power Adapter Input100-240VAC 50/60Hz, 0.8A
Power Adapter Output5VDC 20W output
DisplayPort interfaceResolutions to a maximum of 3840 x 2160 or two 1920 x1200 screens. The receiver unit supports DisplayPort Dual Mode (DP++) also.
DPCP and HDCP are not supported.
USB 2.0Supports up to six USB 2.0 devices (low or full speed). The system does not allow non-HID devices on ports marked 'A'. Isochronous devices are supported (i.e. USB audio or video devices) on the Hi-Speed link only marked 'B'.
Digital stereo audioThe system delivers analog stereo audio (Line in, Line out) and supports microphone input and headphones. It also delivers S/PDIF (optical input) via a 3.5mm jack line in connector (mini Toslink).
RS232RS232 can be passed between the units to a maximum baud rate of 115K2 via the options port.
Important extension distance detailsRecommended cables are CAT7 shielded foiled twisted pairs:
  • Daetwyler 7702 | Flexible patch cable
  • Daetwyler 7120 | Bulk cable
HardwareAll computers with DisplayPort, USB, audio, RS232 - requirement dependent.
O/SAll known software and operating systems including: Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare etc.
Res (@30Hz) Cable Patches Distance-4K3860 x 2160@30Hz or two 1920 x 1080, CAT7 Bulk (Trunk) @ 100m
3860 x 2160, CAT7 Patch @ 80m
3860 x 2160, CAT6a @ 70m
3860 x 2160, CAT5e @ 60m
Single 1920 x 1080, CAT5e @ 150m
Res (@60Hz) Cable Patches Distance2560 x 1600@60Hzor two 1920 x 1080, CAT7 Bulk (Trunk) @ 100m
2560 x 1600, CAT7 Patch @ 80m
2560 x 1600, CAT6a @ 70m
2560 x 1600, CAT5e @ 60m
Single 1920 x 1080, CAT5e @ 150m
Computer connections Transmitter (TX)
VideoDisplayPort x 2
Audio3.5mm Audio-in,
3.5mm Audio-out
OtherUSB type B x 2,
RS232 10p10c options port.
Peripheral connections Receiver (RX)
VideoDisplayPort ++ x 2
Audio3.5mm Audio-in,
3.5mm Audio-out,
Headphone 3.5mm out,
Microphone 3.5mm in
OtherUSB type A x 4,
RS232 10p10c options port
ApprovalsCE, FCC, UL
UPC / EAN Barcode icon
UPC 636430078786
EAN 0636430078786
Question: Hello, is the LV5020 kvm compatible with the display port (thunderbolt) out of the Mac Pro 6.1?
Answer: Thank you for your inquiry,

The LV5020 engineering team confirmed they have confirmed that there are no known issues for compatibility when using Thunderbold (miniDP) to DisplayPort connection coming out from a Mac - they are currently using the same setup with an LV5020 using a Mac with Thunderbolt connection as we speak.

Please let us know if there is anything else we can help you with!

Question: Does this model do screen blanking so that the screen connected to the other unit not in use is not seen?
Answer: Thank you for your inquiry,

Local DisplayPort KVM Extenders, like this Avocent LV5020P or the similar Adder XD522, extend the source signals transparently without emulation or drivers. Screen blanking would not be

You may also be interested in similar IP based KVM extender solutions, such as Adder INFINITY ALIF2020P (Dual-DVI) or ALIF4021P (Dual-DP - coming later this year), which feature configurable permissions and access modes including exclusive access (no other user can access the source simultaneously through the solution).

Please let us know if there is anything else we can help you with!
