The Avocent MergePoint Unity MPU2016DAC is a KVM over IP 16-Port Serial Console Switch with 2 Digital Path and dual-AC input Power Supply.

This unique combination provides IT Administrators a complete remote management solution to access and control servers, networking equipment, and other devices found in data centers and branch offices.

The MergePoint Unity switches enhance the in-band management typically done through the NIC of IT equipment by providing secure and remote Out-of-band connections directly to the physical KVM, USB, and Serial ports. This unified approach enables IT administrators a faster method to diagnose, reconfigure, or restore equipment to meet SLAs and minimize downtime.

Avocent MergePoint MPU2016DAC Backview

Avocent MergePoint MPU2016DAC Backview

Avocent MergePoint MPU2016DAC Benefits

Avocent MergePoint MPU2016DAC Features:

  • Complete, full-featured remote server management from a single user interface.
  • Remote KVM and serial console access are both included in the design of the MergePoint Unity switches.
  • The MergePoint Unity switches can operate out of the box or can be managed by the DSView 3 software to allow a single method to manage and access all the MergePoint Unity switches that exist.
  • Supports LDAP when used alone or can be managed with the DSView 4 management software to add more authentication and reporting options.
  • The MergePoint Unity switch has virtual media capabilities to map USB storage devices and Smart Card/ Common Access Card (CAC) readers.
  • All MergePoint Unity switches come with virtual media capabilities.
  • The MergePoint unity switches offer dual 10/100/1000 ethernet ports on all models and options for models with dual power supplies.
  • Dedicated power control ports to connect and control Avocent rack PDUs (sold separately) for integrated power control and measurement.

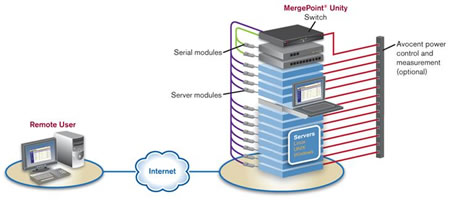

Avocent MergePoint MPU2016DAC Application Diagram

Avocent MergePoint MPU2016DAC Application Diagram

Avocent MergePoint MPU2016DAC Specifications:

Height 1.72 in. (4.4 cm.)
Width 17.0 in. (43.2 cm.)
Depth 14 in. (34 cm.)
Weight (without cables) 8.6 lbs. (3.9 kg.)
Form Factor 1-U rack mountable
Power Specifications
Number MPU8032DAC/4032DAC/2016DAC/1016DAC: 2 power supplies
MPU08032/4032/2016/1016: 1 power supply
Type Internal
Power MPU8032DAC/8032: 24W; MPU4032DAC/4032: 18W; MPU2016DAC/2016: 13W; MPU1016DAC/1016: 12W
Heat Dissipation MPU8032DAC/8032: 82 BTU/hr MPU4032DAC/4032: 62 BTU/hr
MPU2016DAC/2016: 45 BTU/hr MPU1016DAC/1016: 41 BTU/hr
AC Input Range 100-240 VAC
AC Frequency 50-60Hz autosensing
AC Input Current Rating 1.25 A
AC Input Power (max) 40W
Server Ports
Number 16 port models- MPU2016DAC/2016/1016DAC/1016
Modules supported PS/2, Sun, USB and Serial modules sold separately
Connectors 8-pin modular
Sync Types Separate horizontal and vertical
Input Video Resolution 640 x 480 @ 60 Hz; 800 x 600 @ 75 Hz; 960 x 700 @ 75 Hz; 1024 x 768 @ 75 Hz; 1280 x 1024 @ 75 Hz
Supported Cabling 4-pair UTP CAT 5 or CAT 6, 45 meters maximum length
Network Connection
Number 2
Type 10/100/1000 Ethernet
Local Port
Number 1
Type USB and VGA
USB Device Port
Number 5
Type USB 2.0
Modem Port
Number 1
Type RS-232 serial
Connectors 8-pin modular
PDU Port- used to manage supported PDUs through a direct serial port connection
Number 2
Type RS-232 serial
Connector 8-pin modular
Ambient Atmospheric Condition Ratings
Temperature Operating;32 to 122 degrees Fahrenheit (0 to 50 degrees Celsius) Non-operating: -4 to 158 degrees Fahrenheit (-20 to 70 degrees Celsius)
Humidity Operating:20% to 80 % relative humidity (non-condensing) Non-operating: 5% to 95% relative humidity, 38.7 degrees C maximum wet bulb temperature
Safety and EMC Standards Approvals and Markings
Safety certifications and EMC certifications for this product are obtained under one or more of the following designations: CMN (Certification Model Number),
MPN (Manufacturer's Part Number) or Sales Level Model designation. The designation that is referenced

The MPU2016DAC-400 is the direct replacement for the MPU2016DAC-001 and MPU2016DAC-G01. The MPU2016DAC is the recommended replacement for the MPU2016-001 (AKA MPU2016).

UPC / EAN Barcode icon
UPC 636430052793
EAN 0636430052793
Question: What's the difference between the AV3200 and the MPU2016 DAC ?
Answer: Thank you for your inquiry. There are a couple of major differences. The first being the dual AC and Dual LAN ports on the MPU2016DAC for fail-over operation. Another major different is the MergPoint unity series has Virtual Media support and native serial console support to manage serial devices directly with the MPU2016DAC.

Question: is the Remote Webinterface for the IP KVM with HTML5, JAVA or VNC?
Answer: Thank you for your inquiry,

The Avocent MergePoint Unity switches include a JAVA-based Web Remote Interface. You can also upgrade your MergePoint Unity to use the flexible DSView 4 software.

If you would like a recommendation based on you application, please feel free to contact you KVM Switches Online sales representative.
