NTI DVI Extender with IR and Stereo Audio via One CAT5/6/7

ST-C6DVIA-IR-300

$485.00$445.98
Save $39.02

Discontinued
Replaced by: NTI ST-C6DVI-IR-300
Recommended replacement: SmartAVI KLX-500
Alternative options: Contact Us

The XTENDEX ST-C6DVIA-IR-300 DVI Extender transmits digital DVI video and IR signal up to 300 feet away from a DVI source over a single CAT5/6/7 cable. The ST-C6DVIA-IR-300 video extender consists of a local unit that connects to a single link digital DVI source and IR emitter, and a remote unit that connects to a DVI display and IR receiver.

NTI XTENDEX ST-C6DVIA-IR-300 Features and Benefits:

  • Transmits all signals over one CAT5/6/7 cable.
  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200 (WUXGA).
  • Available with stereo audio.
  • Full IR control of DVI source from remote HDTV using existing source remote control.
  • HDCP compliant.
  • Supports the DDC2B protocol.
  • High quality, rugged steel construction with durable powder coat finish.
  • Only one power supply is necessary to power both the local and remote units.

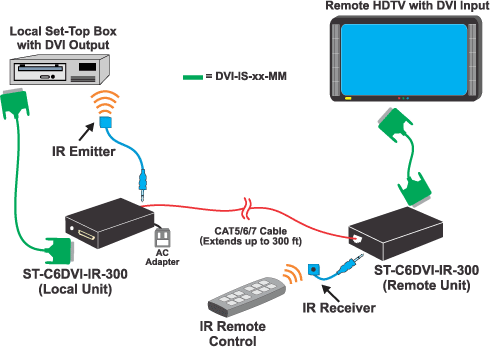

NTI ST-C6DVIA-IR-300 Diagram
NTI DVI Extender with IR and Stereo Audio via One CAT5/6/7 Diagram
(ST-C6DVIA-IR-300 depicted here)

NTI XTENDEX ST-C6DVIA-IR-300 Specifications:

Mechanical
Width3.09 in.
Height1.08 in.
Depth3.49 in.
Environmental
Operating Temperature32 to 122°F (0 to 50°C)
Storage Temperature-20 to 140°F (-30 to 60°C)
Operating/Storage Humidity17 to 90% non-condensing RH
Power Consumption10 W
Video
Video CompatibilityPC Resolution up to 1920x1200 @60Hz / HDTV resolution up to 1080p
Video ConnectorsDVI-I
Input Video SignalTMDS
Video Color FormatStandard (24bit)
DVI SupportDVI 1.0
DDC SupportDDC2b
HDCP VersionHDCP 1.2
Audio
Audio Connectors3.5mm stereo jack
Signal TypeLine Level, stereo, unbalanced
Audio Frequency Response20Hz to 20Khz
Signal-to-noise ratio76 dBA
Stereo Crosstalk-70 dB
Audio Maximum I/O Levels3.1Vp-p
Output ImpedanceMax 2K Ohms, unbalanced
THD+N0.017%, F=20-20KHz, RL=2K Ohm, Vout=1 Vrms
IR
Input/Output3.5mm Stereo Jack
Signal TypeTTL, 0-5VDC
Input Impedance1.5 kohm
Output Impedance33 ohm
Maximum Input/Output Level5.2 Vp-p
Center Carrier Frequency36kHz
Frequency Range33-40kHz
Maximum Distance (fron receiver)14 ft. straight; 6 ft. at 45 degree angle
General
Interconnect CableCAT5e solid/stranded UTP (550 MHz or better);
CAT6/6a Solid UTP; CAT7 Solid STP EIA/TIA
568 B wiring with male RJ45 connectors
Compliance CertificationsCE, RoHS
