Adder SmartView XPRO 8-port KVM Switch

SV2X8-USA

$1,195.00

Discontinued
Recommended replacement: Adder AVX4016
Alternative options: Contact Us

The Adder SmartView XPro SV2X8 is a KVM switch which allows switching for up to 2 users with integrated extenders for local and remote control. Multiple users can simultaneously control banks of computers from local or remote locations. This 8 port switch features 2 x simultaneous local keyboard, mouse and monitor ports and 1 RJ45 extender port to 8 CPUs. The SV2X8 is engineered for multiple users in server rooms and high density PC environments. The SmartView XPro with integrated extenders is engineered to allow users to control connected computers remotely from a clean environment. Adder's advanced on screen display system offers multiple user support, channel selection and password protection features.

Note: Each of the RJ45 extender ports mirror a local port and requires an optional receiver unit to be purchased, see accessories.

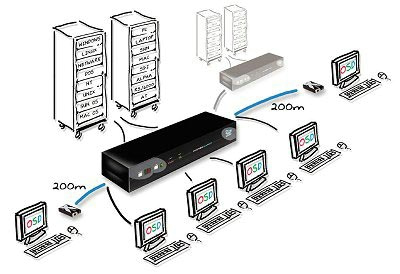

Adder SmartView XPro KVM Switch Diagram
Adder SmartView XPro KVM Switch Diagram

Adder SV2X8 Features:

  • Channel selection via mouse, keyboard, RS232, on screen display or front panel key
  • Flash ensures future-proof upgrade path
  • High video quality with screen resolution up to 1920 x 1440
  • Intelligent cascade enables easy control of 500 computers
  • MP versions support USB console connections
  • Redundant power supply feature
  • Built in KVM over CATx extender transmitters to control switch up to 200m away
  • Optional redundant power supply

Adder SV2X8 Specifications:

Mechanical
Height 1.7 in. (45 mm.)
Width 18.9 in. (482 mm.)
Depth 8 in. (205 mm.)
Power 5V DC, 2A
CPU Connectors
Video 8 x15 way HD D Female
Keyboard 8 x 6 way mini DIN Female
Mouse 8 x 6 way mini DIN Female
Console connectors
Keyboards 2 x 6 way mini DIN female
Mouse 2 x 6 way mini DIN female
Monitors 2 x 15 way HD D Female
Remote users 1 x RJ45 port
External PSU 2 x 5V DC 2A power inlets
Flash upgrade, RS232 control, expansion & remote connectivity accessories 1 x D9 way Female
Standards
EMC 89/336/EEC CE marked
LVD 73/23/EEC
