Coming Q1/Q2 2017 ---------- Most models in the series were released December 2016; See ACS8000 Series for currently active models

The Avocent ACS8032MSAC-400 Single-AC with built in analog modem advanced console server series offers upgraded and advanced features that deliver scalable and high performance solutions for IT administrators. The console server features a dual ARM core processor platform with 16GB of flash memory, dual gigabit-Ethernet ports and dual gigabit-Fiber ports for redundancy and optional built-in modem.

In addition, there is a new sensor port, to connect a variety of sensors for monitoring and logging on the appliance. Our serial ports are now auto sensing for pin-out and the Avocent ACS 8000 advanced console server also offers robust software features to meet the requirements of the most demanding data center management applications. IT professionals and network operations center (NOC) personnel can harness these new capabilities to further enable them to perform secure, remote data center management and out-of-band management of IT assets from anywhere in the world.

Features & Benefits

  • Secure in-band and out-of-band network remote management
  • Fast, automated configuration with Zero Touch Provisioning
  • Access and troubleshoot remote locations using automatic network failover to cellular (and failback)
  • Compliance with data center access and security policies - customizable, multiple access levels
  • No need for adaptors with automatic Cyclades and Cisco pin-out conversions
  • Expanded support for Rack PDUs from Emerson, ServerTech, APC, Raritan and Eaton
  • Support for Emerson GXT4 UPS system
  • Integrated support for 1Gb SFP fiber modules
  • 8 USB ports to support new IT equipment and external devices
  • Includes Environmental sensor port
  • Support for Avocent DSView management software
  • IPv6 and IPv4 support for new network deployments
  • Extensive Regulatory & Security compliance

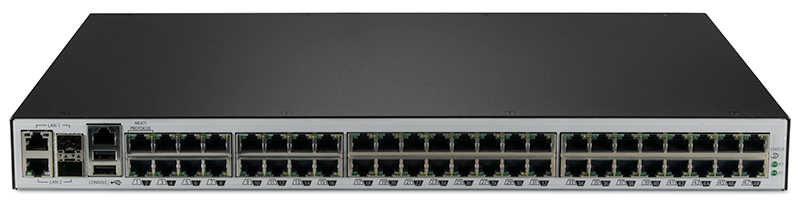

Avocent ACS8000 Rear
48 Port Model Shown

Applications

  • Secure console and power management
  • Server and network management
  • Secure access to test and development lab environments
  • Telco central office and remote facilities

Accessibility

  • Zero Touch Provisioning (ZTP)
  • In-band (Ethernet) and out-of-band (dial-up/cellular modem) support
  • Built-in v.92 analog modem connectivity
  • External device connectivity such as LTE/4G cellular router

Availability

  • Automatic Ethernet or Cellular failover using second GbE port for failover
  • Support for multiple-routing tables
  • Dual GbE Ethernet support
  • Dual 1Gb SFP Fiber support
  • 8x USB port support

Security

  • Preset security profiles-secure, moderate and open
  • Custom security profiles
  • X.509 SSH certificate support
  • SSHv1 and SSHv2
  • Local, RADIUS, TACACS+, LDAP/AD, NIS and Kerberos authentication
  • Two-factor authentication (RSA SecurID)
  • One-Time Password (OTP) authentication
  • Local, backup-user authentication support
  • PAP/CHAP and Extensible Authentication Protocol (EAP) authentication (for dial-up lines)
  • Group authorization:
    • TACACS+, RADIUS and LDAP
    • Port access
    • Power access
    • Appliance privilege
  • IP packet and security filtering
  • User-access lists per port
  • System event syslog
  • IPSec with NAT traversal support
  • IP forwarding support
  • Secure factory defaults
  • Strong password enforcement

Console Management

  • Sun break-safe (Solaris Ready Certified)
  • Break-over SSH support
  • Off-line data buffering - local and remote (NFS/Syslog/DSView software)
  • Level-based syslog filters
  • Time stamp and rotations for data buffering
  • Unlimited number of simultaneous sessions
  • Simultaneous access on the same port (port sniffing) with ability to toggle
  • Configurable event notification (e-mail, pager, SNMP trap)
  • Customizable, global time zone support
  • Multiple and customizable user levels of access

Port Access

  • Directly by server name or device name
  • CLI Command
  • Simultaneous Telnet and SSH access
  • HTTP/HTTPS

System Management

  • Configuration wizard in Web for first-time users
  • Auto-discovery for automatic deployment
  • Command line interface (CLI)
  • Web Management Interface (HTTP/HTTPS)
  • SNMP
  • Internal temperature sensor

Cabling

  • CAT-5 compatible adapters for simpler cabling
  • Autosensing for Cyclades and Cisco pin-outs for serial ports

Upgrades

  • Upgrades available on FTP site, no charge
  • TFTP support for network boot

ACS8032MSAC-400 Accessories

AdaptersDesciption
ADB0045SX 550m multi mode SFP fiber transceiver
ADB0047LX/LH 10km single SFP fiber transceiver
ADB0017RJ45 to DB25F cross converter
ADB0025RJ45 to DB25M cross converter
ADB0036RJ45 to DB9F cross converter
ADB0037RJ45 to DB9M cross converter
ADB0039RJ45 to RJ45 Sun/Cisco cross converter
ADB0040RJ45 to RJ45 Rackable converter
ADB0210RJ45 to DB9F s/t converter
CablesDesciption
CAB0017RJ-45M to DB-25F crossover cable (6 ft.)
CAB0018RJ-45M to RJ-45M straight-through CAT-5 cable (7 ft.)
CAB0025RJ-45M to DB-25M straight-through cable (6 ft.)
CAB0036RJ-45M to DB-9F crossover cable (6 ft.)
CAB0045RJ-45M to RJ-45M Sun/Cisco crossover cable (10 ft.)
CAB0046RJ-45M to DB-25M crossover cable (6 ft.)
CAB0286DB-9F to DB-9F crossover cable (6 ft.)
Rackmounting KitsDesciption
RMK-88ACS8000 0U Rack Mount Kit for ACS8000
RMK-89ACS8000 1U Rack Mount Kit for ACS8000
Extended Warranties Desciption
1YSLV-ACS32PT1 YR Silver HW Maintenance ACS32PT
2YSLV-ACS32PT2 YR Silver HW Maintenance ACS32PT
4YSLV-ACS32PT4 YR Silver HW Maintenance ACS32PT
1YGLD-ACS32PT1 YR Gold HW Maintenance ACS32PT
2YGLD-ACS32PT2 YR Gold HW Maintenance ACS32PT
4YGLD-ACS32PT4 YR Gold HW Maintenance ACS32PT

ACS8032MSAC-400 Technical Specifications

Mechanical
Height1.75 in. (6 cm)
Width17.250 in. (21 cm)
Depth9.5 in. (11.25 cm)
Weight7.5 lb. (3.4 kg)
Environmental
Operating Temperature14° to 140°F (-10° to 60°C)
Storage Temperature-4° to 158°F (-20° to 70°C)
Humidity20% to 80% non-condensing
Power
Operating Voltage100-240 VAC, 50/60 Hz
Input Power35W Maximum
Power UsageNominal voltage 120VAC:
  • Typical 0.13A, 6.2W
  • Maximum 0.47A, 28W
Nominal voltage 240VAC:
  • Typical 0.10A, 7W
  • Maximum 0.29A, 28W
Hardware Specifications
CPU Dual-core ARM Cortex-A9 MPCore with CoreSight
Memory 1GB DDR3L RAM
16GB eMMC Flash
Interfaces 2 Gigabit Fiber SFP ports
2 Gigabit (10/100/1000BT) Ethernet interfaces on RJ45
1 RS-232 serial console port on RJ45
Up to 48 RS-232 serial ports on RJ45
First 2 ports selectable between RS-232/RS-422/RS-485
8 USB 2.0 Ports on Type A connector
1 full size SD Card slot
Environmental sensor port on RJ45 (1-wire)
4 digital-in ports (smoke, leak, pressure and dry contact sensors)
Standards
Approved Agency

Emissions and Immunity:
• FCC Class A
• CE Class A (EU)
• ICES-003 (Canada)
• VCCI (Japan)
• RCM (Australia)
• Customs Union (CU)
• KCC (Korea)

Safety:
• UL (USA)
• cUL (Canada)
• EN-60950 (EU)
• CB
• Customs Union (CU)

ACS 8000 Models

AC ModelsDesciption
ACS8008SAC-400ACS 8000 8-port unit single AC power supply
ACS8008MSAC-400ACS 8000 8-port unit single AC power supply with built-in modem
ACS8008DAC-400ACS 8000 8-port unit dual AC power supply
ACS8008MDAC-400ACS 8000 8-port unit dual AC power supply with built-in modem
ACS8016SAC-400ACS 8000 16-port unit single AC power supply
ACS8016MSAC-400ACS 8000 16-port unit single AC power supply with built-in modem
ACS8016DAC-400ACS 8000 16-port unit dual AC power supply
ACS8016MDAC-400ACS 8000 16-port unit dual AC power supply with built-in modem
ACS8032SAC-400ACS 8000 32-port unit single AC power supply
ACS8032MSAC-400ACS 8000 32-port unit single AC power supply with built-in modem
ACS8032DAC-400ACS 8000 32-port unit dual AC power supply
ACS8032MDAC-400ACS 8000 32-port unit dual AC power supply with built-in modem
ACS8048SAC-400ACS 8000 48-port unit single AC power supply
ACS8048MSAC-400ACS 8000 48-port unit single AC power supply with built-in modem
ACS8048DAC-400ACS 8000 48-port unit dual AC power supply
ACS8048MDAC-400ACS 8000 48-port unit dual AC power supply with built-in modem
DC ModelsDesciption
ACS8008SDC-400ACS 8000 8-port unit single DC power supply
ACS8008MSDC-400ACS 8000 8-port unit single DC power supply with built-in modem
ACS8008DDC-400ACS 8000 8-port unit dual DC power supply
ACS8008MDDC-400ACS 8000 8-port unit dual DC power supply with built-in modem
ACS8016SDC-400ACS 8000 16-port unit single DC power supply
ACS8016MSDC-400ACS 8000 16-port unit single DC power supply with built-in modem
ACS8016DDC-400ACS 8000 16-port unit dual DC power supply
ACS8016MDDC-400ACS 8000 16-port unit dual DC power supply with built-in modem
ACS8032SDC-400ACS 8000 32-port unit single DC power supply
ACS8032MSDC-400ACS 8000 32-port unit single DC power supply with built-in modem
ACS8032DDC-400ACS 8000 32-port unit dual DC power supply
ACS8032MDDC-400ACS 8000 32-port unit dual DC power supply with built-in modem
ACS8048SDC-400ACS 8000 48-port unit single DC power supply
ACS8048MSDC-400ACS 8000 48-port unit single DC power supply with built-in modem
ACS8048DDC-400ACS 8000 48-port unit dual DC power supply
ACS8048MDDC-400ACS 8000 48-port unit dual DC power supply with built-in modem
