Avocent AutoView 1415 CAT5 KVM Switch


Save $241.67

Replaced by: Avocent AV2108-001
Alternative options: Contact Us

The Avocent AutoView AV1415-001 is an 8-port single-user KVM switch which provides user support for USB and/or PS/2 keyboards and mice. This KVM switch also provides support for USB, PS/2, Sun, and serial target devices. Built for SMB server room environments, the AutoView 1415 switch all-in-one solution provides the convenience of a high-quality, On-Screen Display (OSD). This 8 port KVM switch includes two unique cabling options. Integrated access cables provide PS/2 and USB support and are available in lengths of 7, 10 and 15 feet. The server interface module, with Sun and serial support, covers a range of 100 feet between the target device and the switch. Both cabling options automatically assign and retain unique server names for each attached server, which simplifies installation and eases re-configuration.

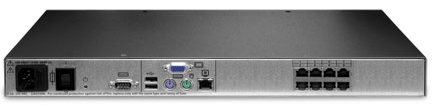

Avocent AutoView AV1415 KVM Switch Backside
Avocent AutoView AV1415 KVM Switch Backside

Avocent AV1415-001 Features & Benefits:

  • Single-user, 8-port KVM switch
  • Unique cable designs
  • Powerful user access control
  • Sun keyboard localization: Supports international markets
  • Sun keyboard translation: Allows users to use PS/2 keyboards with Sun targets.
  • OSCAR graphical user interface -Multilingual OSD
  • Integrates with Avocent AutoView 3100 and 3200 KVM switches
  • Operating System (OS) independent

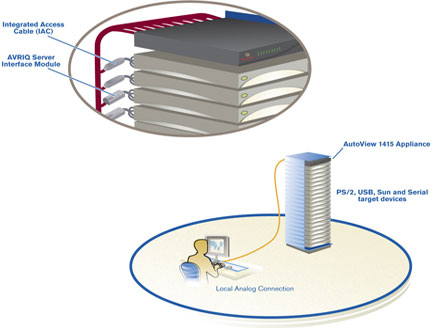

Avocent AutoView Cat5 KVM Switch Diagram
Avocent AutoView Cat5 KVM Switch Diagram

Avocent AV1415-001 Package Includes:

  • Power cord
  • One null modem serial cable
  • Rack mounting kit
  • AutoView 1415/1515/2015 Installer/User Guide
  • AutoView 1415/1515/2015 Quick Installation Guide

Additional items needed but not included:
One IAC or AVRIQ module and CAT 5 cabling per attached server or switch

Avocent AV1415-001 Specifications:

Height 1.75 in. (4.45 cm.)
Width 17.00 in. (43.18 cm.)
Depth11.00 in. (27.94 cm.)
Weight8 lb. ( 3.6 kg) without cables
Operating Temperature50 to 122 F (10 to 50 C)
Storage Temperature-4 to 140 F (-20 to 60 C)
Operating Voltage100 to 240 VAC Autosensing
Power Frequency50/60 HZ
Input40 W maximum
Supported Hardware
ComputersUSB, PS/2, Sun and serial
MonitorVGA, SVGA (XGA, XGA-II with adaptor), 1600 x 1280 @ 75 Hz resolution
PeripheralsUSB and/or PS/2 keyboards and mice, Microsoft Explorer mouse, Microsoft IntelliMouse family, IBM Scrollpoint, Logitech Mouseman Wheel, Logitech Trackman Marble Wheel, Logitech Marble FX and Kensington 4-button mouse, Microsoft PS/2 tilt wheel mouse
Approved Agency UL FCC Class A, cUL, ICES Class A, CE, N, GS, IRAM, GOST, VCCI, Class A, MIC Class A, C-Tick
Question: Do you know if Dell SIP Module work with this KVM ?
Answer: Avocent does not recommend the use of the SIP module, nor have they tested this implementation. Avocent recommends use of their dongles:

Question: Dear sir, Can I ask what is the ECCN (Export Control classification Number) of this item AV1415-001? Thank you Teresa
Answer: Thank you for your inquiry. The ECCN for the AV1415-001 is EAR99.

Question: What is the Mean-Time-Between-failure for this product?
Answer: Thank you for your inquiry and sorry for the delay. We have just received word back for the manufacturer on this request.
The MTBF for this devices is as follows:

@ 25oC MTBF (hours) - 385,477; MTBF (years) - 4.0; Failure Rate (FIT) - 2,594
@ 40oC MTBF (hours) - 180,274; MTBF (years) - 20.6; Failure Rate (FIT)- 5,547
