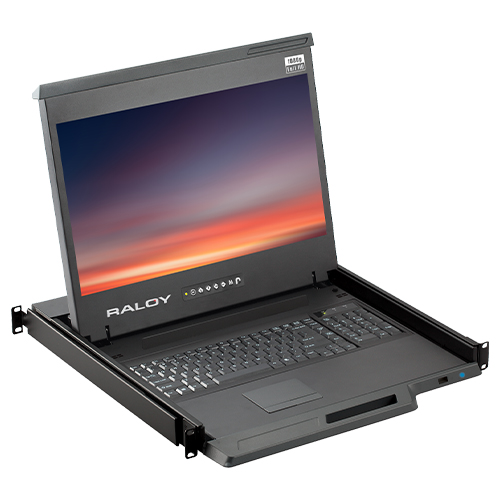

Raloy 1U 17" HD (1080p) LED Rack Console - with Integrated VGA USB Hub KVM Switch

RF117HD-HKVM

$2,062.00$1,903.00
Save $159.00
Model: 17" High-Def LED
Integrated KVM: DB-15 VGA KVM with USB 2.0 Hub
FREE Shipping on orders over $100

Raloy RF117HD-HKVM rack console features a 17" 1080p HD LED and an Integrated . This state-of-the-art modular rack console offers a space saving, streamlined approach to your rack environment by integrating your LCD monitor, KVM switch, Keyboard, Mouse, and Audio options into one unit taking up only 1U (1.73 in.).

Overview - Raloy RF117HD with VGA Hub KVM

  • Rackmount Console with integrated DB-15 VGA Hub KVM in only 1 rackmount unit.
  • 17" Full HD LED monitor with support for resolutions up to 1080p
  • USB 2.0 port sharing USB peripheral for computers
  • DB-15 VGA Hub 3-in-1 cables included (p/n RCB-6).
  • Combo interface: mix PS/2, USB & SUN with Multi-Platform switch capability.
  • Advanced user profiles and configurable OSD hot key combinations.
  • 24 Month Limited Warranty - Extended Warranties available for purchase

Raloy RF117HD Certifications

Features - Raloy RF117HD with Integrated VGA Hub KVM

  • Raloy RF117HD HKVM USB Peripheral Hub

    USB 2.0 Peripheral Hub

    Raloy RF117HD DB-15 VGA Hub KVMs features a front USB Peripheral hub port that let you share USB 2.0 peripheral devices, storage devices, CAC readers, printers, bootable ISO, and any other USB 2.0 devices, among multiple computers connected to the KVM.

    Compare KVMs

  • Raloy RF117HD Full-HD (1080p) LED Display

    Full-HD (1080p) LED Display

    The Raloy RF117HD features a 17" 1080p LED-backlit LCD delivering up to 1920 x 1080 resolution. DDC2B emulation allows the video settings of the connected computer to be automatically adjusted for optimal display on the console monitor.

  • Raloy RF117HD DB-15 VGA Hub KVM Multi-platform support

    Multi-platform support

    The Raloy RF117HD is designed to be driver-free and works with all known software and computer platforms, including Windows (all), Mac (all), DOS, Linux, Unix, BSD, Sun OS (all), NetWare, etc. RF117HD supports USB, PS2 and Sun keyboard/mouse interfaces.


  • CatX KVM Receiver for Raloy RF117HD DB-15 VGA Hub KVM

    Integrated CATx extender
    (0 or 1 Remote Users)

    Raloy Cat6 KVMs can be optionally controlled by one to three users from up to 500ft (150m) away over CATx cable using the integrated CATx extender with the included KVM receiver.

  • Raloy RF117HD DB-15 VGA Hub KVM IP Web Browser Access

    IP Web access to severs
    (0 or 1 VNC / HTTPS Users)

    Use a VNC Viewer or Java Web Browser to connect to servers remotely from anywhere in the world. This IP based method employs enterprise grade security using AES encryption and RSA public key authentication. VNC over IP sessions support resolutions up to 1920 x 1080p.

  • Raloy RF117HD DB-15 VGA Hub KVM UL Certification

    High-quality Build with Certifications for any application

    This Raloy console has been tested and approved for UL, CE, FCC, RoHS Certifications for IT, manufacturing, SOHO, commercial, military, government, and surveillance applications. For TAA Compliant applications, raloys drawers are assembled and tested in California, USA.


  • Raloy RF117HD DB-15 VGA Hub KVM Built-to last - MTBF 50,000 Hours

    Built-to last - MTBF 50,000 Hours

    Tired of low quality TrippLite and Vertiv consoles that break in months? Raloys console drawers have been designed and tested to be highly reliable. As the oldest rack console manufacturer, Raloy has had millions of hours of real application usage of its console drawers and is commited quality.

  • Raloy RF117HD DB-15 VGA Hub KVM 2nd Generation Efficient Design

    2nd Generation Efficient Design

    A decade of testing rack mount monitors led Raloy to their next generation refined design including:

    • Moulded front handle for easy access and use
    • New streamlined and enhanced aesthetics

Choose your Integrated DB-15 Hub KVM

Raloy RF117HD with Matrix DB-15 VGA KVM
DB-15 VGA KVM
16 Ports8 PortsLocal
Users
IP Web
Users
Extended
Users
RF117HD-HKVM10016RF117HD-HKVM10008100
RF117HD-HKVM10116RF117HD-HKVM10108110
RF117HD-HKVM11016RF117HD-HKVM11008101

RF117HD with DB-15 Hub KVM Package Contents

Raloy RF117HD Package Contents

  • (1) RF117HD Rack Console
  • (1) 1U, 19" Rack mount kit w/ brackets & screws
  • (8-16) RCB-6 VGA/USB console cable
  • (0-1) KVM receiver for extended console
  • (0-1) RCB-6 VGA/USB console cable - for receiver
  • (1-2) US Power Cord (console + one for each receiver)
  • (1) 24 Month Limited Warranty
    - Extended Warranties available for purchase
  • *Additional parts may be included based on options

Instructional Media

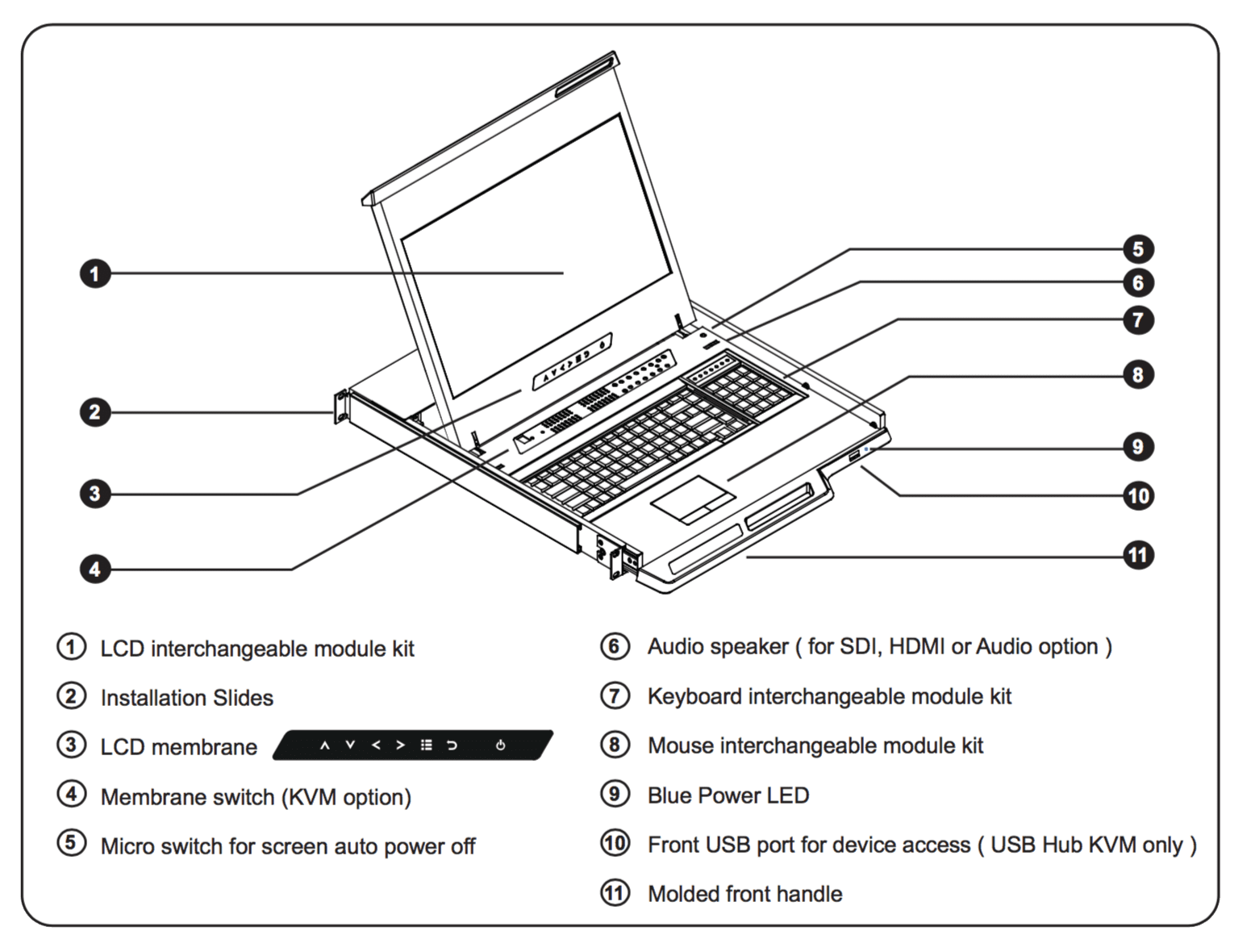

RF117HD Diagram

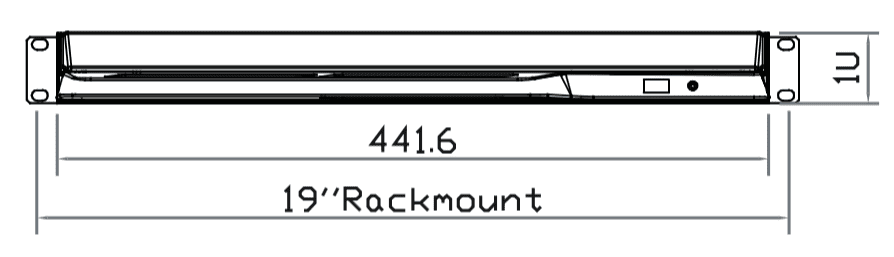

RF117HD Front View

RF117HD DB-15 VGA Hub KVM Multi-User IP Diagram (1 Local, 1 Extended, 1 IP User)RF117HD DB-15 VGA Hub KVM Multi-User Diagram (1 Local & 1 Extended)

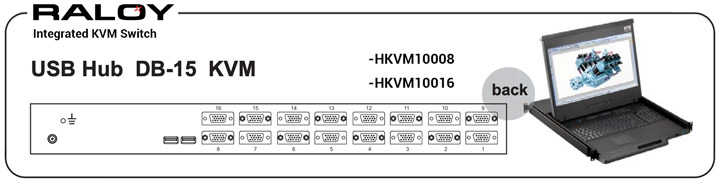

RF117HD Integrated DB-15 VGA Hub Combo KVM

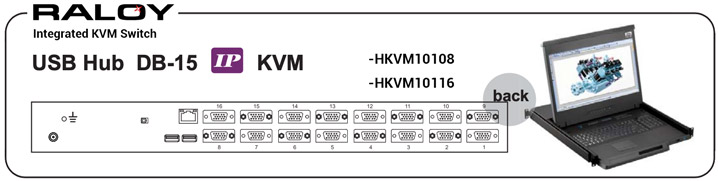

RF117HD Integrated DB-15 VGA Hub Combo IP KVM

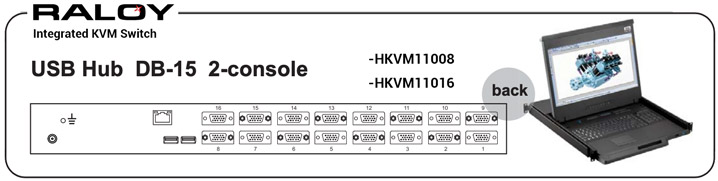

RF117HD Integrated DB-15 VGA Hub Combo KVM with 2 Consoles

RF117HD DB-15 VGA Hub KVM Multi-User Diagram (1 Local & 1 Extended)

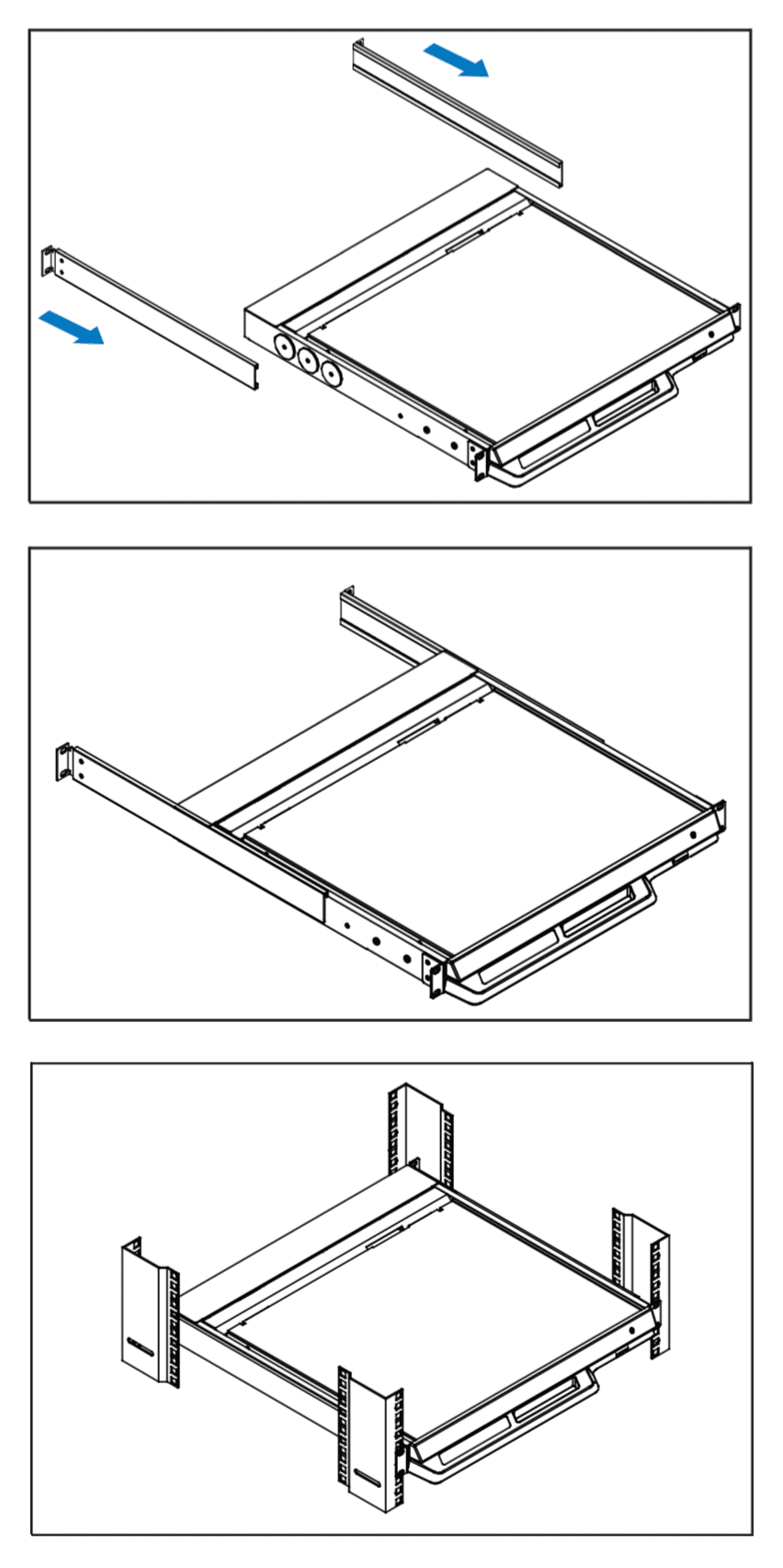

RF117HD Installation Diagram

Raloy RF117HD with DB-15 VGA Hub KVM Specifications

Product Dimensions
Product (W x D x H)
17.4 x 22.8 x 1.73 in. / 441.6 x 580 x 44 mm
Packing (W x D x H)
23.2 x 30.2 x 5.5 in. / 590 x 768 x 140 mm
Net Weight
25.5 lbs / 11.6 kgs
Gross Weight
38.5 lbs / 17.5 kgs
LCD Monitor
Diagonal Size
17.3-inch Widescreen TFT color LCD
Max. Resolution
1920 x 1080
Brightness
300
Color Support
1.07 Billion
Contrast Ratio (typical)
600:1
Viewing Angle (L/R/U/D)
89/89/89/89
Display Area (mm)
381.9H x 214.8V
LCD Panel MTBF (hrs)
20,000
VGA Signal Input
Analog RGB, 0.7Vp-p
DVI Signal InputDVI-D, TMDS single link
Optional HDMI Signal InputHDMI 1.1, CEA-861-D
Sync. Type
Separate H/V, Composite, SOG
Plug & Play DDC
EDID 1.3
Module Options
Keyboard
104 key notepad keyboard with full numerical pad and multiple keyboard language options.
Mouse
2 button touchpad or trackball
Other Options
 Broadcast SDI, DC power, and audio input/output options available.
Power
Input
Auto-sensing 100 to 240VAC, 50 / 60Hz
Optional DC
12V/24V/48V DC input
Consumption
Max. 48 Watt, Standby 5 Watt
Regulatory Approval
UL, cUL, FCC, CE
Environmental
Operation
32° - 122°F (0° - 50°C)
Storage
23° - 140°F (-5° - 60°C)
Relative Humidity
5-90%, non-condensing
Shock
10G peak acceleration (11ms, half-sine wave)
Vibration
5~500Hz 1G RMS random vibration
Package Contains**
1 x RF117HD Rack Console; 1 x RCX-6 DVI-D/USB console cable (or RCB-6 VGA/USB cable upon request); 1 x User Manual; 1 x Power Cord; 8 x M6 screws, cage nuts & cup washers
