Adder AdderLink iPEPS Dual Access KVM over IP Solution

AL-IPEPS-DA

$699.00$629.10
Save $69.90
Model: iPEPS DA
  • iPEPS+
  • iPEPS Digital
  • ALIP Gold
  • iPEPS
  • iPEPS DA
  • + Compare Family
FREE Shipping on orders over $100

The AdderLink ipeps AL-IPEPS-DA KVM over IP dual access unit which is part of Adder's IP Engine per Server or "ipeps" concept that delivers a complete, secure, non-blocking approach to computer management.

The IPEPS DA is a powerful and flexible KVM-via-IP gateway contained with in a palm sized unit which enables computer access from anywhere in the world, securely and remotely via the Internet or corporate network. The AdderLink ipeps uses Real VNC client software that is specifically designed for secure, high performance KVM via IP applications. This IP unit uses Adventiq Inside on-chip KVM over IP technology, enabling it to be an extremely high performance solution despite its compact size.

For Enterprise KVM solutions the AdderLink ipeps provides a non-blocking global solution by providing each computer with a dedicated KVM-via-IP engine. This can be enhanced by using the ADDER.NET Enterprise management software that provides a centralized and secure user access management interface. Where a KVM switch exists without KVM-via-IP functionality, the AdderLink ipeps is ideal for adding global management capabilities.

Increasing numbers of computers are being used in remote, stand alone applications such as ATMs and digital signage play out devices. The incredibly small size of the AdderLink ipeps makes it perfect for remote management and control of dispersed computers, meaning that many tasks that would have required an expensive site visit can now be done from anywhere.

Adder iPEPS DA Application Diagram

  • Interface powered, optional external PSUs available for purchase
  • Independent operation gives full control even during boot up, BIOS level or computer crash states
  • High performance VGA video up to 1600 x 1200 (RealVNC) or 1280 x 1024 (HTTPS)
  • Enterprise grade security using AES 128 bit encryption and RSA 2048 bit public key authentication, with added encryption of RealVNC.
  • Supports exclusive access mode or up to 4 simultaneous users
  • Up to 16 user profiles and access data logging
  • USB or PS/2 keyboard and mouse connections
  • Virtual media support (via USB)
  • Up to 8 units can be rack mounted in 2U of rack space
  • Can be used as a KVM front end - compatible with most third party KVM switches
  • Feed through port that provides local KVM console access
  • Auto sensing 10/100 Mb Ethernet port

See Detailed Layout

Adder iPEPS DA Features

  • Adder iPEPS DA - Adder.NET remote web browser access

    Access computer from anywhere in the world
    via Web browser or RealVNC

    iPEPS DA enables you to remotely access and control your computing hardware remotely using your standard IP network (WAN or LAN) via a web browser. iPEPS DA also acts as a RealVNC server with RFP 3.3 support, that can be accessed via Real VNC client software.

  • Adder AL-IPEPS-DA Front & Back

    Independent operation
    - BIOS-level access

    Unlike software based solutions, the AdderLink iPEPS DA gives full control of a computer even during boot up, BIOS level or computer crash states. The AdderLink iPEPS DA will work even if the controlled devices are not operational.

  • Adder iPEPS DA - compact 'Zero-U'

    Palm sized ('Zero-U')

    Increasing numbers of computers are being used in remote, stand alone applications such as ATMs and digital signage devices. The AL-IPEPS-DA incredibly small palm size makes it perfect for remote management and control of dispersed computers, meaning that many tasks that would have required an expensive site visit can now be done from anywhere.


  • Adder iPEPS DA User Permissions / Access management

    User access management

    The free ADDER.NET Enterprise Management Software provides a centralized, secure and intuitive user access management interface, where up to sixteen user profiles with defined access rights can be created. Each user station can be granted different access permissions on a per computer basis including View only, Shared, Exclusive or Private.

  • Adder iPEPS DA Access methods - web browser or RealVNC

    High performance video over VNC

    The AdderLink iPEPS DA can use a standard web browser (up to 1280x1024), or for superior graphical performance (up to 1600x1200) Real VNC can be used. Free of the limitations of HTTPS, Real VNC greatly enhances video performance.

  • Adder USB Cable

    USB and Virtual media support

    iPEPS DA is engineered to act as a conduit through which data can be passed so that files can be transferred via IP onto the target computer by means of a USB virtual media port.


  • Adder iPEPS DA - Make any KVM switch remotely accessible!

    Make any KVM switch remotely accessible!

    Adder iPEPS DA an be used as a front end for almost any Adder or third-party KVM switch. This allows access to your KVM switch remotely over IP - essentially making any standard KVM switch device a KVM-Over-IP switch.

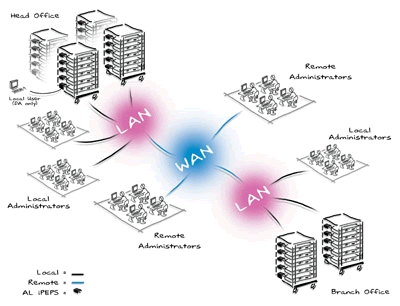

  • Adder iPEPS DA Multi-point KVM / AV matrix

    Multi-point KVM / AV matrix

    One local user and/or four extended remote users can simultaneous access each iPEPS DA unit. With 16 definable seperate user profiles, multiple iPEPS DA units can be used to create an extensive IP-based KVM switching matrix using only individual access points.

  • Adder iPEPS DA Enterprise-grade security (AES 256 bit encryption and RSA 2048 public key authentication)

    Enterprise-grade security

    Adder iPEPS DA units have built-in security measures compliant with universal enterprise grade security standards, inlcuding AES 256 bit encryption and RSA 2048 bit public key authentication, further enhanced by the use of Real VNC that allows for the creation of ciphered user communications.


  • Adder iPEPS DA Multi-platform support

    Multi-platform support

    Adder iPEPS DA supports all known software and computer platforms with PS/2, USB and Sun keyboard and mouse interfaces, including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare, etc.

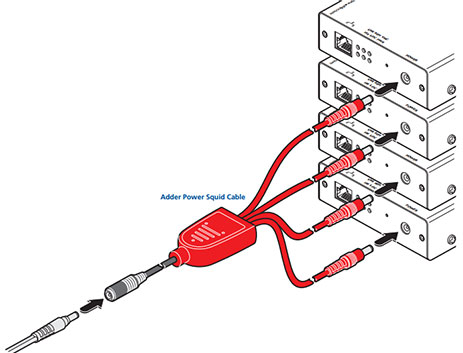

  • Adder iPEPS DA - power four AL-IPEPS-DA units from single power adapter

    Choice of power source

    Adder iPEPS DA can be powered from two USB cables, or independently from an optional external 5V power source. Alternatively, the Squid Power Cable (CAB-XSERIES-4WAYPWR) also allows up to four iPEPS DA units to be powered externally from a single power adapter.

  • Adder X-RMK-CHASSIS - 8 AL-IPEPS-DA mounted in 2U 19in rack mount kit

    High density rack mount option

    An optional chassis (X-RMK-CHASSIS) allows up to 16 (AL-IPEPS) or 8 (AL-IPEPS-DA) units to be housed in 2U of rack space.


AL-IPEPS-DA Package Contents

Adder AL-IPEPS-DA Package Contents

  • (1) AL-IPEPS-DA IP KVM Gateway
  • (2) USB converter plugs
  • (1) VKVM-2M 6ft VGA, PS/2 KVM cable
  • (1) CD-ROM
  • (4) Self-adhesive rubber feet
  • (1) 2-Year Limited Warranty & Lifetime World Class Support

Adder AL-IPEPS-DA Specifications

Mechanical
Height 1.65 in. (42 mm.)
Width 4.72 in. (120 mm.)
Depth2.95 in. (75 mm.)
Weight1.02 lbs. (0.46 kg.)
Environmental
Operating Temperature0°C to 40°C / 32°F to 104°F
Optional power supply
(purchase required)
100-240VAC, 47/63Hz
Video ResolutionSupports standard PC, Sun and Mac video modes up to resolutions of 1600 x 1200 (VNC) or 1280 x 1024 (HTTPS) with scalable viewer
Compatibility
HardwareSupports PC, RS/6000, Alpha, SGI computers,
Sun and Mac. USB or PS/2connections supported.
Compatible with most KVM switches
O/SAll known software and operating systems including
Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris,
Mac OS, NetWare etc.
ipeps to KVM/Computer connection
VideoHDD15
Keyboard/MouseMiniDIN6 1m 3-in-1
cable supplied (USB converters also included)
Local Console
VideoHDD15
Keyboard/MouseMiniDIN6
Connections
EthernetRJ45 10/100 autosensing
ApprovalsCE, FCC

iPEPS DA is also known as AL-IPEPS-DA, and IPEPS-DA.

Question: I would like to know the MTBF of this product. Thks
Answer: According to ADDER Technology: in general terms, the MTBF for Adder products is around 45,000 hrs.

Question: Is this unit UL approved?
Answer: Thank you for your inquiry. Unfortunately, we do not believe this unit is UL listed.
