Raloy RF117HD-CATx rack console features a 17" 1080p HD LED and an Integrated High Density CATx single or multi user KVM switch. This state-of-the-art modular rack console offers a space saving, streamlined approach to your rack environment by integrating your LCD monitor, KVM switch, Keyboard, Mouse, and Audio options into one unit taking up only 1U (1.73 in.).

Overview - Raloy RF117HD with CATx KVM

  • Rackmount Console with integrated CATx KVM in only 1 rackmount unit.
  • 17" Full HD LED LCD with support for resolutions up to 1080p
  • Supports HDMI, DisplayPort, DVI, VGA-USB & VGA-PS/2 server interface.
  • Up to 130 feet (40 meters) between your server & KVM switch
  • Advanced user profiles and configurable OSD hot key combinations.
  • Cascade switches up to 8 levels, 128 servers.
  • Enhanced Cat6 cable management with remote access over 985ft (300m)
  • UL Approval for LCD Console and CATx KVM Switches.
  • 24 Month Limited Warranty - Extended Warranties available for purchase

Raloy RF117HD Certifications

Features - Raloy RF117HD with Integrated CATx KVM

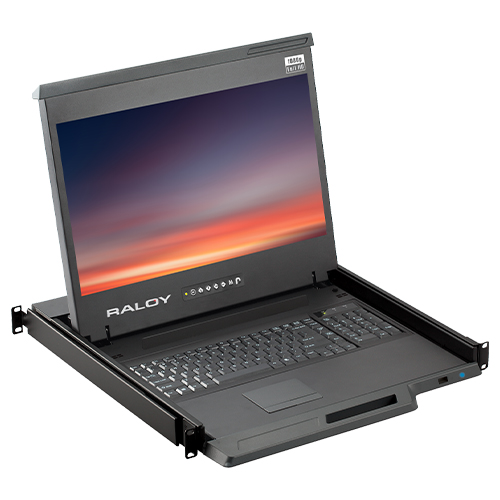

  • Raloy RF117HD Full-HD (1080p) LED Display

    Full-HD (1080p) LED Display

    The Raloy RF117HD features a 17" 1080p LED-backlit LCD delivering up to 1920 x 1080 resolution. DDC2B emulation allows the video settings of the connected computer to be automatically adjusted for optimal display on the console monitor.

  • KVM Dongle for Raloy RF117HD Cat6 KVM

    VGA, DVI, HDMI, USB-C, & DisplayPort KVM Dongles

    Raloy Cat6 KVMs support any combination of VGA, DVI, HDMI, USB-CDisplayPort, USB, and PS/2 sources with optional audio through low-cost KVM dongles. Source computers can be located up to 131 feet (40 m) away via Cat5/6 cable.

    Compare CAMs

  • Raloy RF117HD Multi-user access & management Diagram

    Multi-user access & management

    One local user and one extended remote user can control 16 multi-platform servers simultaneously. Up to 4 different user profiles can be stored with access rights for each user defined.

    Compare KVMs

  • CV-S101 CatX KVM Receiver for Raloy RF117HD Cat6 KVM

    Integrated CATx extender
    (0-3 Remote Users)

    Raloy Cat6 KVMs can be optionally controlled by one to three users from up to 500ft (150m) away over CATx cable using the integrated CATx extender with the included KVM receiver.

  • Raloy RF117HD Cat6 KVM IP Web Browser Access

    IP Web access to severs
    (0-2 VNC / HTTPS Users)

    Use a VNC Viewer or Java Web Browser to connect to servers remotely from anywhere in the world. This IP based method employs enterprise grade security using AES encryption and RSA public key authentication. VNC over IP sessions support resolutions up to 1920 x 1080p.

  • Raloy RF117HD Cat6 KVM Multi-platform support

    Multi-platform support

    The Raloy RF117HD is designed to be driver-free and works with all known software and computer platforms, including Windows (all), Mac (all), DOS, Linux, Unix, BSD, Sun OS (all), NetWare, etc. RF117HD supports USB, PS2 and Sun keyboard/mouse interfaces.

  • Raloy RF117HD Cat6 KVM UL Certification

    High-quality Build with Certifications for any application

    This Raloy console has been tested and approved for UL, CE, FCC, RoHS Certifications for IT, manufacturing, SOHO, commercial, military, government, and surveillance applications. For TAA Compliant applications, raloys drawers are assembled and tested in California, USA.

  • Raloy RF117HD Cat6 KVM Built-to last - MTBF 50,000 Hours

    Built-to last - MTBF 50,000 Hours

    Tired of low quality TrippLite and Vertiv consoles that break in months? Raloys console drawers have been designed and tested to be highly reliable. As the oldest rack console manufacturer, Raloy has had millions of hours of real application usage of its console drawers and is commited quality.

  • Raloy RF117HD Cat6 KVM 2nd Generation Efficient Design

    2nd Generation Efficient Design

    A decade of testing rack mount monitors led Raloy to their next generation refined design including:

    • Moulded front handle for easy access and use
    • New streamlined and enhanced aesthetics

Choose your Integrated Cat6 KVM

Raloy RF117HD with Matrix CAT6 KVM
Matrix CAT6 KVM
32 Ports16 Ports8 PortsLocal
IP Web
RF117HD-CATx10032 RF117HD-CATx10016RF117HD-CATx10008100
RF117HD-CATx10132 RF117HD-CATx10116RF117HD-CATx10108110
RF117HD-CATx31132 RF117HD-CATx31116--111
RF117HD-CATx42132 RF117HD-CATx42116--112
RF117HD-CATx41232 RF117HD-CATx41216--121
RF117HD-CATx21032 RF117HD-CATx21016--101
RF117HD-CATx32032 RF117HD-CATx32016--102
RF117HD-CATx43032 RF117HD-CATx43016--103

RF117HD with DB-15 Hub KVM Package Contents

Raloy RF117HD Package Contents

  • (1) RF117HD Rack Console
  • (1) 1U, 19" Rack mount kit w/ brackets & screws
  • (0-3) KVM receiver for extended console
  • (0-3) RCB-6 VGA/USB console cable - for receiver
  • (1-4) US Power Cord (console + one for each receiver)
  • (1) 24 Month Limited Warranty
    - Extended Warranties available for purchase
  • *Additional parts may be included based on options

Instructional Media

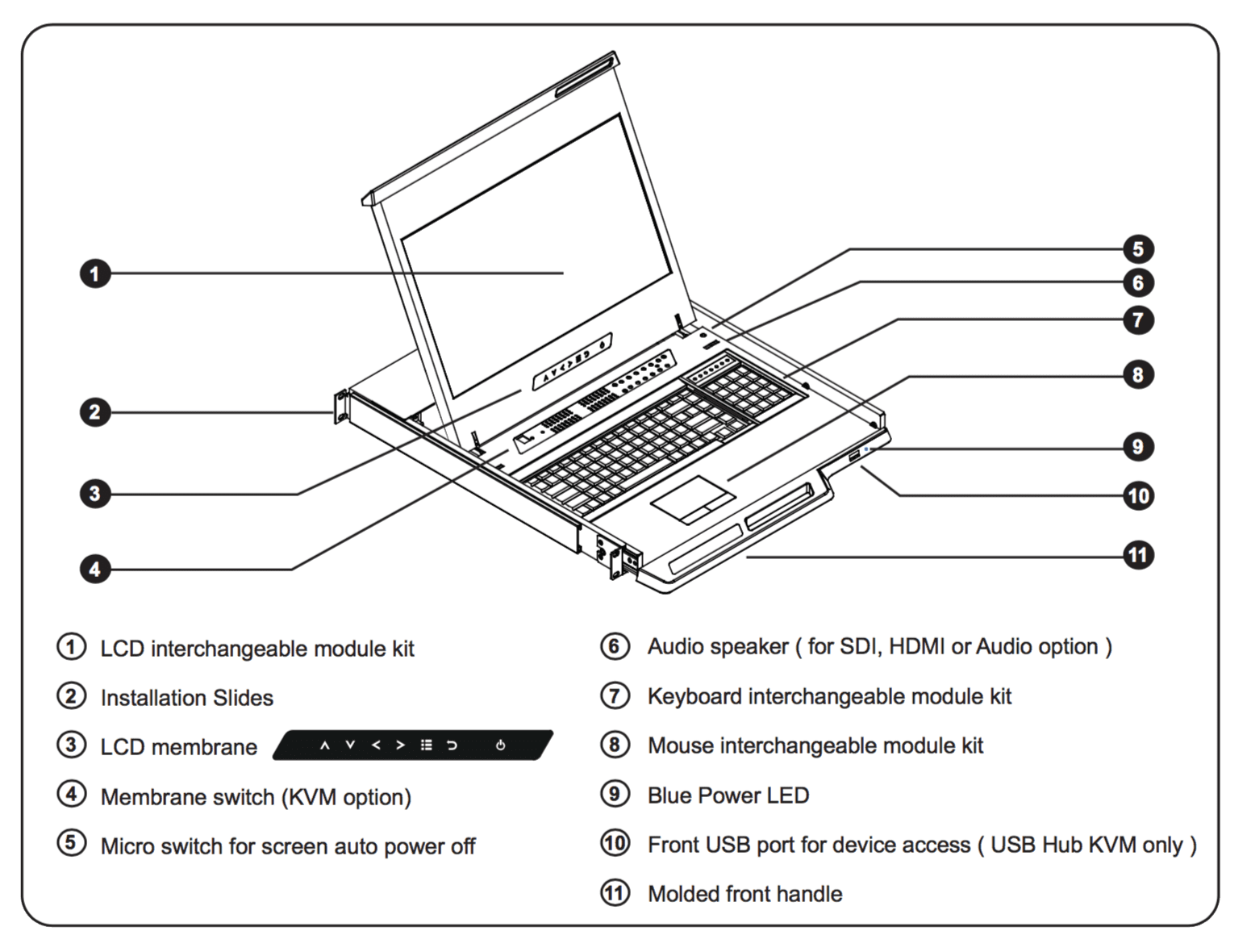

RF117HD Diagram

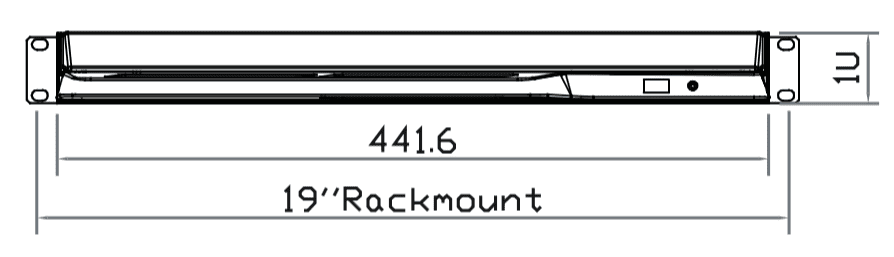

RF117HD Front View

RF117HD Cat6 KVM Multi-User IP Diagram (1 Local, 1 Extended, 1 IP User)

RF117HD Cat6 KVM Multi-User Diagram (1 Local & 1 Extended)

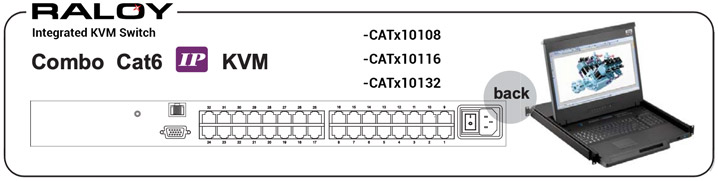

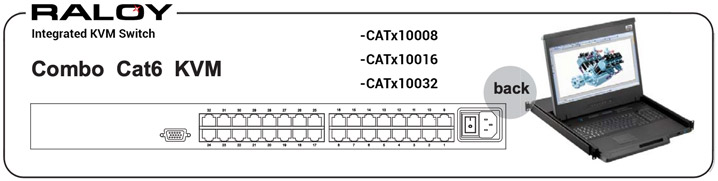

RF117HD Integrated Cat6 Combo KVM

RF117HD Integrated Cat6 Combo IP KVM

RF117HD Integrated Cat6 Combo KVM with 2 Consoles

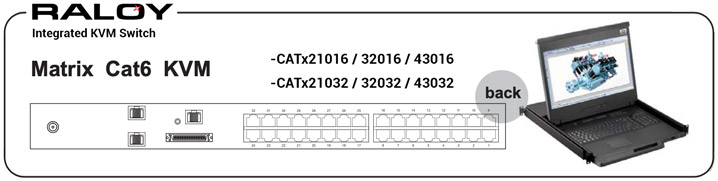

RF117HD Integrated Cat6 Matrix KVM

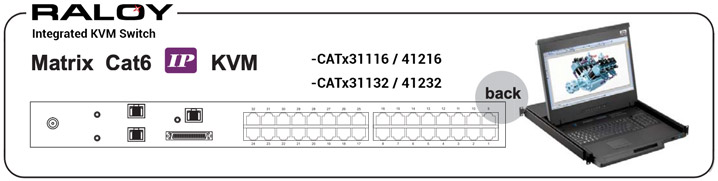

RF117HD Integrated Cat6 Matrix IP KVM

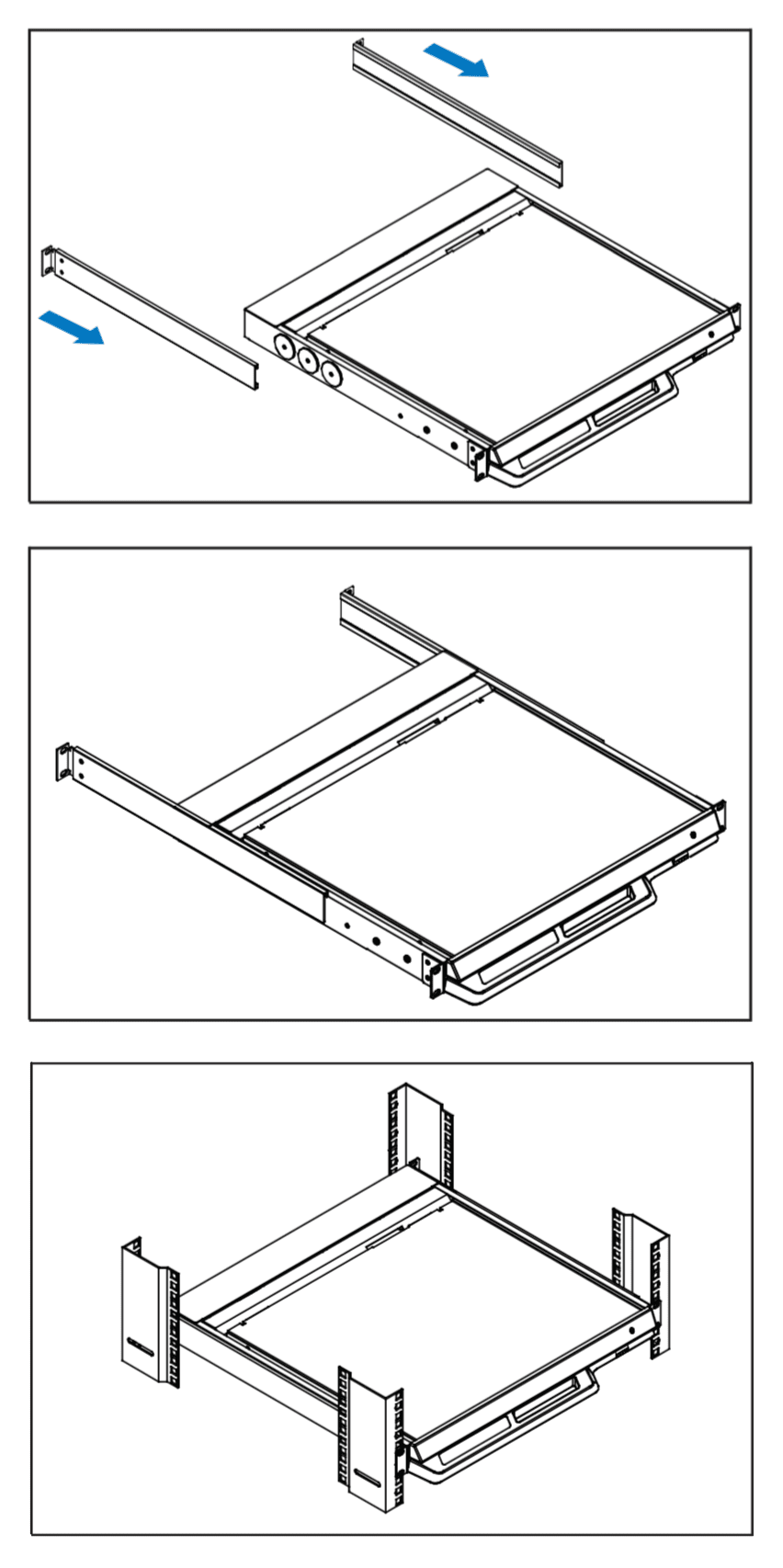

RF117HD Installation Diagram

Raloy RF117HD with CATx KVM Specifications

Product Dimensions
Product (W x D x H)
17.4 x 22.8 x 1.73 in. / 441.6 x 580 x 44 mm
Packing (W x D x H)
23.2 x 30.2 x 5.5 in. / 590 x 768 x 140 mm
Net Weight
25.5 lbs / 11.6 kgs
Gross Weight
38.5 lbs / 17.5 kgs
LCD Monitor
Diagonal Size
17.3-inch Widescreen TFT color LCD
Max. Resolution
1920 x 1080
Color Support
1.07 Billion
Contrast Ratio (typical)
Viewing Angle (L/R/U/D)
Display Area (mm)
381.9H x 214.8V
LCD Panel MTBF (hrs)
VGA Signal Input
Analog RGB, 0.7Vp-p
DVI Signal InputDVI-D, TMDS single link
Optional HDMI Signal InputHDMI 1.1, CEA-861-D
Sync. Type
Separate H/V, Composite, SOG
Plug & Play DDC
EDID 1.3
Module Options
104 key notepad keyboard with full numerical pad and multiple keyboard language options.
2 button touchpad or trackball
Other Options
 Broadcast SDI, DC power, and audio input/output options available.
Auto-sensing 100 to 240VAC, 50 / 60Hz
Optional DC
12V/24V/48V DC input
Max. 48 Watt, Standby 5 Watt
Regulatory Approval
32° - 122°F (0° - 50°C)
23° - 140°F (-5° - 60°C)
Relative Humidity
5-90%, non-condensing
10G peak acceleration (11ms, half-sine wave)
5~500Hz 1G RMS random vibration
Package Contains**
1 x RF117HD Rack Console; 1 x RCX-6 DVI-D/USB console cable (or RCB-6 VGA/USB cable upon request); 1 x User Manual; 1 x Power Cord; 8 x M6 screws, cage nuts & cup washers
