Raloy 1U 19" Rack Console - with Integrated VGA KVM Switch

RNX119-KVM

$1,482.00$1,229.00
Save $253.00
Integrated KVM: DB-15 VGA KVM
FREE Shipping on orders over $100

Raloy RNX119-KVM rack console features a 19" Standard LCD and an Integrated VGA KVM (DB-15 connection) single or multi user KVM switch. This state-of-the-art modular rack console offers a space saving, streamlined approach to your rack environment by integrating your LCD monitor, KVM switch, Keyboard, Mouse, and Audio options into one unit taking up only 1U (1.73 in.).

Raloy RNX119 Certifications

Overview - Raloy RNX119 with VGA KVM

  • Rackmount Console with integrated CATx KVM in only 1U.
  • 19 in. LCD - 1280 x 1024 Max. Resolution
  • DB-15 VGA 4-in-1 cables included, with connections for PS2 and USB servers (p/n RCE-6).
  • Combo interface: mix PS/2, USB & SUN with Multi-Platform switch capability.
  • Advanced user profiles and configurable OSD hot key combinations.
  • Cascade switches up to 8 levels, 128 servers.
  • UL Approval for LCD Console and DB-15 KVM Switches.
  • 24 Month Limited Warranty - Extended Warranties available for purchase

Features - Raloy RNX119 with Integrated VGA KVM

  • Raloy RNX119 19in LCD Display

    19" LCD Display

    The Raloy RNX119 features a standard 19" LCD delivering up to 1280 x 1024 resolution. DDC2B emulation allows the video settings of the connected computer to be automatically adjusted for optimal display on the console monitor.

  • Raloy RNX119 DB-15 VGA KVM Multi-platform support

    Multi-platform support

    The Raloy RNX119 is designed to be driver-free and works with all known software and computer platforms, including Windows (all), Mac (all), DOS, Linux, Unix, BSD, Sun OS (all), NetWare, etc. RNX119 supports USB, PS2 and Sun keyboard/mouse interfaces.

  • Raloy RNX119 DB-15 VGA KVM Multi-user access & management Diagram

    Multi-user access & management

    One local user and one extended remote user can control 16 multi-platform servers simultaneously. Up to 4 different user profiles can be stored with access rights for each user defined.

    Compare KVMs


  • CatX KVM Receiver for Raloy RNX119 DB-15 VGA KVM

    Integrated CATx extender
    (0-3 Remote Users)

    Raloy Cat6 KVMs can be optionally controlled by one to three users from up to 500ft (150m) away over CATx cable using the integrated CATx extender with the included KVM receiver.

  • Raloy RNX119 DB-15 VGA KVM IP Web Browser Access

    IP Web access to severs
    (0-2 VNC / HTTPS Users)

    Use a VNC Viewer or Java Web Browser to connect to servers remotely from anywhere in the world. This IP based method employs enterprise grade security using AES encryption and RSA public key authentication. VNC over IP sessions support resolutions up to 1920 x 1080p.

  • Raloy RNX119 DB-15 VGA KVM UL Certification

    High-quality Build with Certifications for any application

    This Raloy console has been tested and approved for UL, CE, FCC, RoHS Certifications for IT, manufacturing, SOHO, commercial, military, government, and surveillance applications. For TAA Compliant applications, raloys drawers are assembled and tested in California, USA.


  • Raloy RNX119 DB-15 VGA KVM Built-to last - MTBF 50,000 Hours

    Built-to last - MTBF 50,000 Hours

    Tired of low quality TrippLite and Vertiv consoles that break in months? Raloys console drawers have been designed and tested to be highly reliable. As the oldest rack console manufacturer, Raloy has had millions of hours of real application usage of its console drawers and is commited quality.

  • Raloy RNX119 DB-15 VGA KVM 2nd Generation Efficient Design

    2nd Generation Efficient Design

    A decade of testing rack mount monitors led Raloy to their next generation refined design including:

    • Moulded front handle for easy access and use
    • New streamlined and enhanced aesthetics

Choose your Integrated DB-15 VGA KVM

Raloy RNX119 with Matrix DB-15 VGA KVM
DB-15 VGA KVM
16 Ports8 PortsLocal
Users
IP Web
Users
Extended
Users
RNX119-KVM10016RNX119-KVM10008100
RNX119-KVM10116RNX119-KVM10108110
RNX119-KVM31116--111
RNX119-KVM42116--121
RNX119-KVM41216--112
RNX119-KVM11016RNX119-KVM11008101
RNX119-KVM21016 --101
RNX119-KVM32016--102
RNX119-KVM43016--103

RNX119 with DB-15 Hub KVM Package Contents

Raloy RNX119 Package Contents

  • (1) RNX119 Rack Console
  • (1) 1U, 19" Rack mount kit w/ brackets & screws
  • (8-16) RCB-6 VGA/USB console cable
  • (0-3) KVM receiver for extended console
  • (0-3) RCB-6 VGA/USB console cable - for receiver
  • (1-4) US Power Cord (console + one for each receiver)
  • (1) 24 Month Limited Warranty
    - Extended Warranties available for purchase
  • *Additional parts may be included based on options

Instructional Media

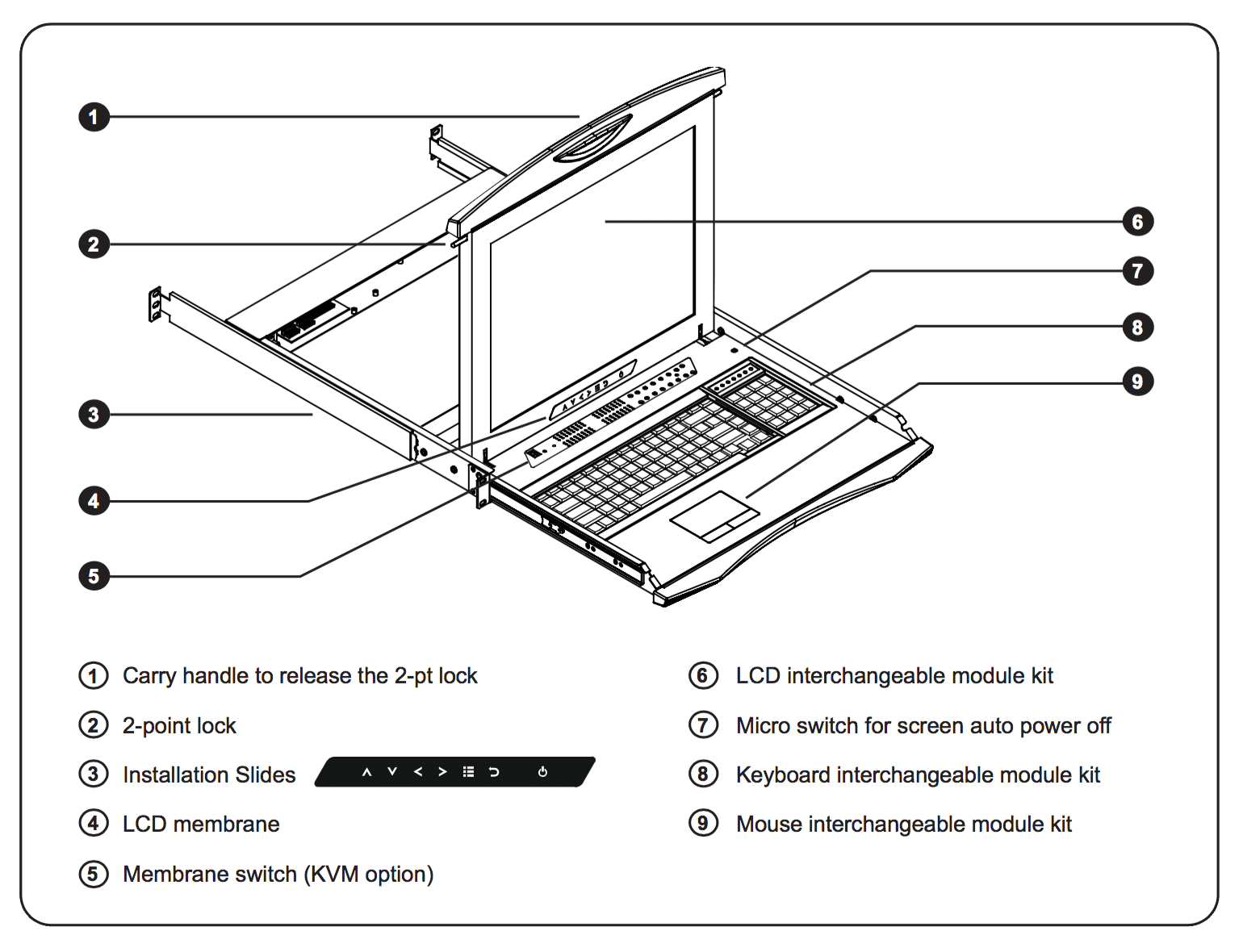

RNX119 Diagram

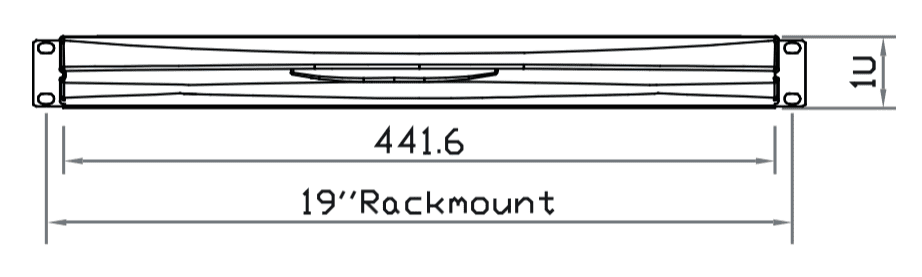

RNX119 Front View

RNX119 DB-15 VGA KVM Multi-User IP Diagram (1 Local, 1 Extended, 1 IP User)

RNX119 DB-15 VGA KVM Multi-User Diagram (1 Local & 1 Extended)

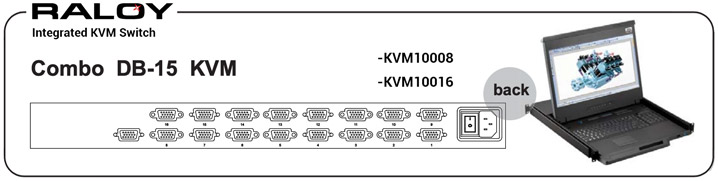

RNX119 Integrated DB-15 VGA Combo KVM

RNX119 Integrated DB-15 VGA Combo IP KVM

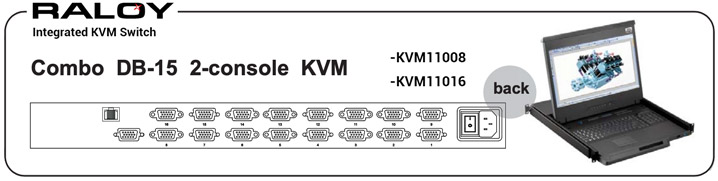

RNX119 Integrated DB-15 VGA Combo KVM with 2 Consoles

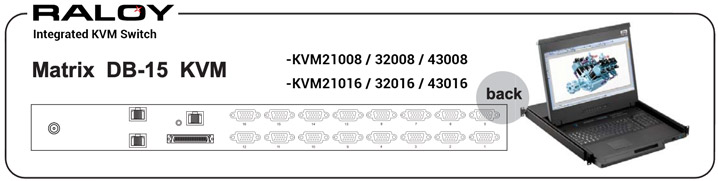

RNX119 Integrated DB-15 VGA Matrix KVM

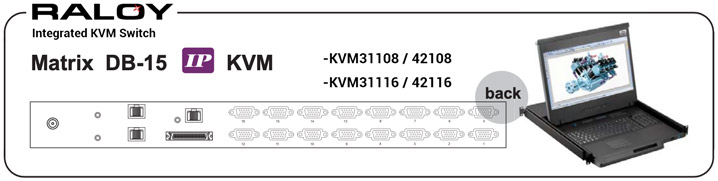

RNX119 Integrated DB-15 VGA Matrix IP KVM

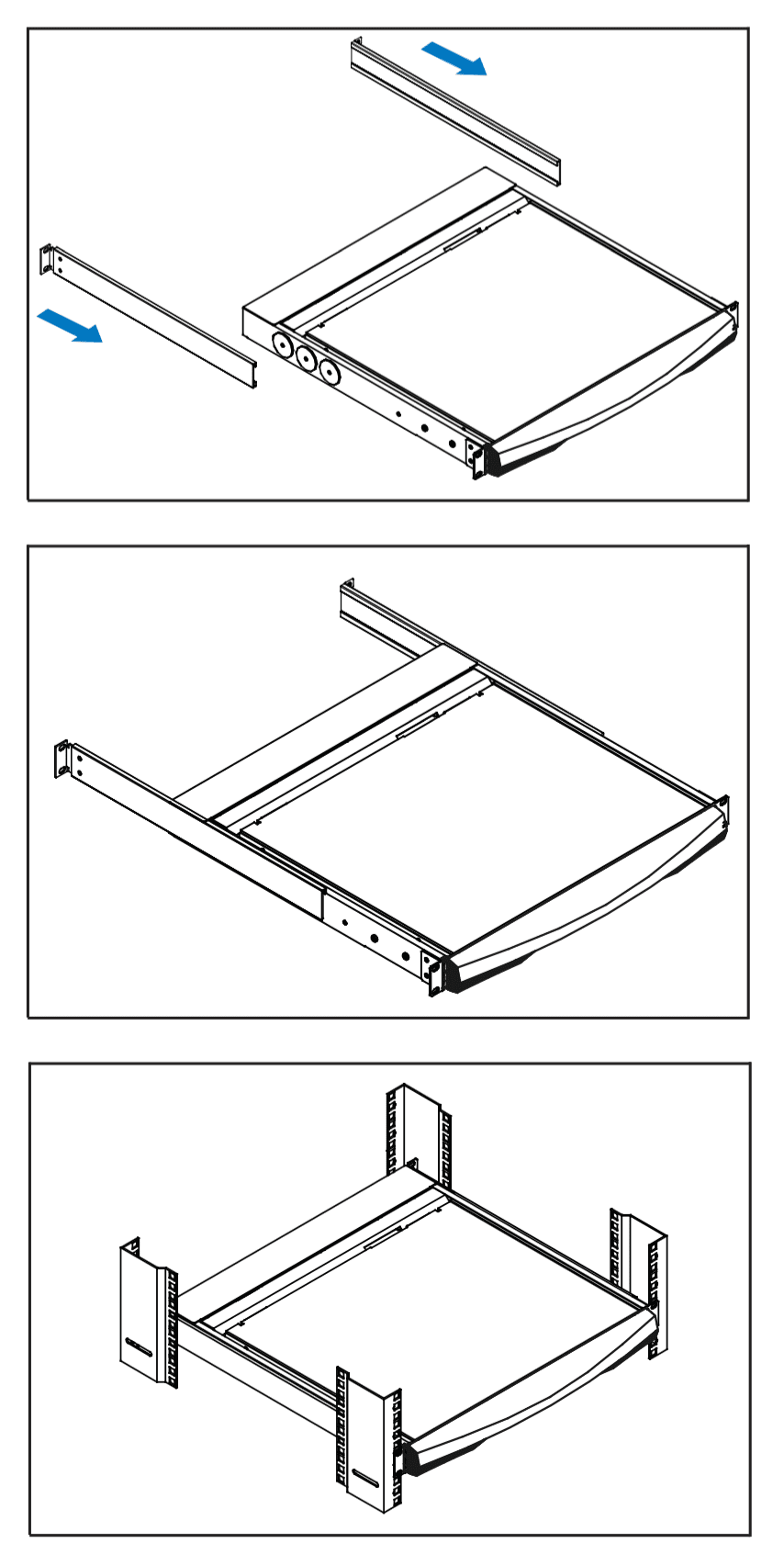

RNX119 Installation Diagram

Raloy RNX119 with DB-15 VGA KVM Specifications

Mechanical
Height 1.73 in. (44 mm.)
Width 17.4 in. (442 mm.)
Depth24.4 in. (620 mm.)
Package Dimensions23.2 x 30.2 x 5.5 in.
(590 x 768 x 140mm)
Mounting Depth25 in. (min) to 36.5 in. (max)
(635 to 927.1 mm)
Form Factor1U rack mounting on slide-out rails
Net Weight29.7 lbs. (13.5 kg.)
Gross Weight40.5 lbs. (18.4 kg.)
Environmental
Operating Temperature32° to 122°F
(0° to 50°C)
Storage Temperature23° to 140°F
(-5° to 65°C)
Relative Humidity5~90%, non-condensing
Shock10G acceleration (11ms duration)
Vibration5~500Hz 1G RMS random vibration
Power
InputAuto-sensing 100 to 240VAC,
50 / 60Hz
ConsumptionMax. 48 Watt, Standby 5 Watt
LCD Display
Diagonal Size19" TFT
Max. Resolution1280 x 1024
Brightness (cd/m2)250
Color Support16.7 Mil.
Contrast Ratio (typ.)1000:1
Viewing Angle (H/V)170° x 160°
Display Area (mm)376 x 301
Response Time (ms)5
VGA Signal InputAnalog RGB, 0.7Vp-p
Sync. TypeSeparate H/V, Composite, SOG
Resolution1280 x 1024 x 60 / 75Hz
1280 x 960 x 60Hz
1280 x 760 x 60 / 75Hz
1152 x 864 x 75Hz
1024 x 768 x 60 / 70 / 75Hz
848 x 480 x 60Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
640 x 400 x 70Hz
640 x 350 x 70Hz
Plug & Play DDCEDID 1.3
Console PortVGA + USB or PS/2, server end
DB15 (VGA, USB KB/MS), console side
CompatibilityMix various PC, SUN, MAC, IBM,
HP & DELL servers
Regulation ApprovalcUL, FCC & CE certified
RoHS2 & REACH compliant
Question: We are documenting the RNX119-KVM10016B+48 KVM and am wondering if the KVM switch has a power switch? if so, what documentation shows this?
Answer: Thank you for your inquiry,

If the model comes with DC power input (RNX119-KVM10016B+48), there is no power switch on the unit.

The RNX119-KVM10016B with standard AC power includes a power button under the LCD panel on next to the On-Screen-Display control buttons. For an illustration of this, please refer to page 7 of the Raloy RNX119 Manual.

Please let us know if there is anything else we can help you with!
