Raloy 1U 19" Dual Rail Rack Console - with Integrated VGA KVM Switch


Save $146.00
Integrated KVM: DB-15 VGA KVM
FREE Shipping on orders over $100

Raloy RD119-KVM rack console features a 19" Dual-Slide LCD and an Integrated VGA KVM (DB-15 connection) single or multi user KVM switch. This state-of-the-art modular rack console offers a space saving, streamlined approach to your rack environment by integrating your LCD monitor, KVM switch, Keyboard, Mouse, and Audio options into one unit taking up only 1U (1.73 in.).

Raloy RD119 Certifications

Overview - Raloy RD119 with VGA KVM

  • Rackmount Console with integrated CATx KVM in only 1U.
  • Dual slide rails: retractable keyboard & independent LCD display
  • 19 in. LCD - 1280 x 1024 Max. Resolution
  • Combo interface: mix PS/2, USB & SUN with Multi-Platform switch capability.
  • Advanced user profiles and configurable OSD hot key combinations.
  • Cascade switches up to 8 levels, 128 servers.
  • UL Approval for LCD Console and DB-15 KVM Switches.
  • 24 Month Limited Warranty - Extended Warranties available for purchase

Features - Raloy RD119 with Integrated VGA KVM

  • Raloy RD119 Dual-Slide 19

    Dual-Slide 19" Display

    The Raloy RD119 features a standard 19" LCD delivering up to 1280 x 1024 resolution. Independent rails for the monitor and keyboard allow the monitor to stay up while the keyboard is stored. DDC2B emulation ensures optimal video settings for the display on the console monitor.

  • Raloy RD119 DB-15 VGA KVM Multi-platform support

    Multi-platform support

    The Raloy RD119 is designed to be driver-free and works with all known software and computer platforms, including Windows (all), Mac (all), DOS, Linux, Unix, BSD, Sun OS (all), NetWare, etc. RD119 supports USB, PS2 and Sun keyboard/mouse interfaces.

  • Raloy RD119 DB-15 VGA KVM Multi-user access & management Diagram

    Multi-user access & management

    One local user and one extended remote user can control 16 multi-platform servers simultaneously. Up to 4 different user profiles can be stored with access rights for each user defined.

    Compare KVMs

  • CatX KVM Receiver for Raloy RD119 DB-15 VGA KVM

    Integrated CATx extender
    (0-3 Remote Users)

    Raloy Cat6 KVMs can be optionally controlled by one to three users from up to 500ft (150m) away over CATx cable using the integrated CATx extender with the included KVM receiver.

  • Raloy RD119 DB-15 VGA KVM IP Web Browser Access

    IP Web access to severs
    (0-2 VNC / HTTPS Users)

    Use a VNC Viewer or Java Web Browser to connect to servers remotely from anywhere in the world. This IP based method employs enterprise grade security using AES encryption and RSA public key authentication. VNC over IP sessions support resolutions up to 1920 x 1080p.

  • Raloy RD119 DB-15 VGA KVM UL Certification

    High-quality Build with Certifications for any application

    This Raloy console has been tested and approved for UL, CE, FCC, RoHS Certifications for IT, manufacturing, SOHO, commercial, military, government, and surveillance applications. For TAA Compliant applications, raloys drawers are assembled and tested in California, USA.

  • Raloy RD119 DB-15 VGA KVM Built-to last - MTBF 50,000 Hours

    Built-to last - MTBF 50,000 Hours

    Tired of low quality TrippLite and Vertiv consoles that break in months? Raloys console drawers have been designed and tested to be highly reliable. As the oldest rack console manufacturer, Raloy has had millions of hours of real application usage of its console drawers and is commited quality.

  • Raloy RD119 DB-15 VGA KVM 2nd Generation Efficient Design

    2nd Generation Efficient Design

    A decade of testing rack mount monitors led Raloy to their next generation refined design including:

    • Moulded front handle for easy access and use
    • New streamlined and enhanced aesthetics

Choose your Integrated DB-15 VGA KVM

Raloy RD119 with Matrix DB-15 VGA KVM
16 Ports8 PortsLocal
IP Web
RD119-KVM21016 --101

RD119 with DB-15 Hub KVM Package Contents

Raloy RD119 Package Contents

  • (1) RD119 Rack Console
  • (1) 1U, 19" Rack mount kit w/ brackets & screws
  • (0-3) KVM receiver for extended console
  • (0-3) RCB-6 VGA/USB console cable - for receiver
  • (1-4) US Power Cord (console + one for each receiver)
  • (1) 24 Month Limited Warranty
    - Extended Warranties available for purchase
  • *Additional parts may be included based on options

Instructional Media

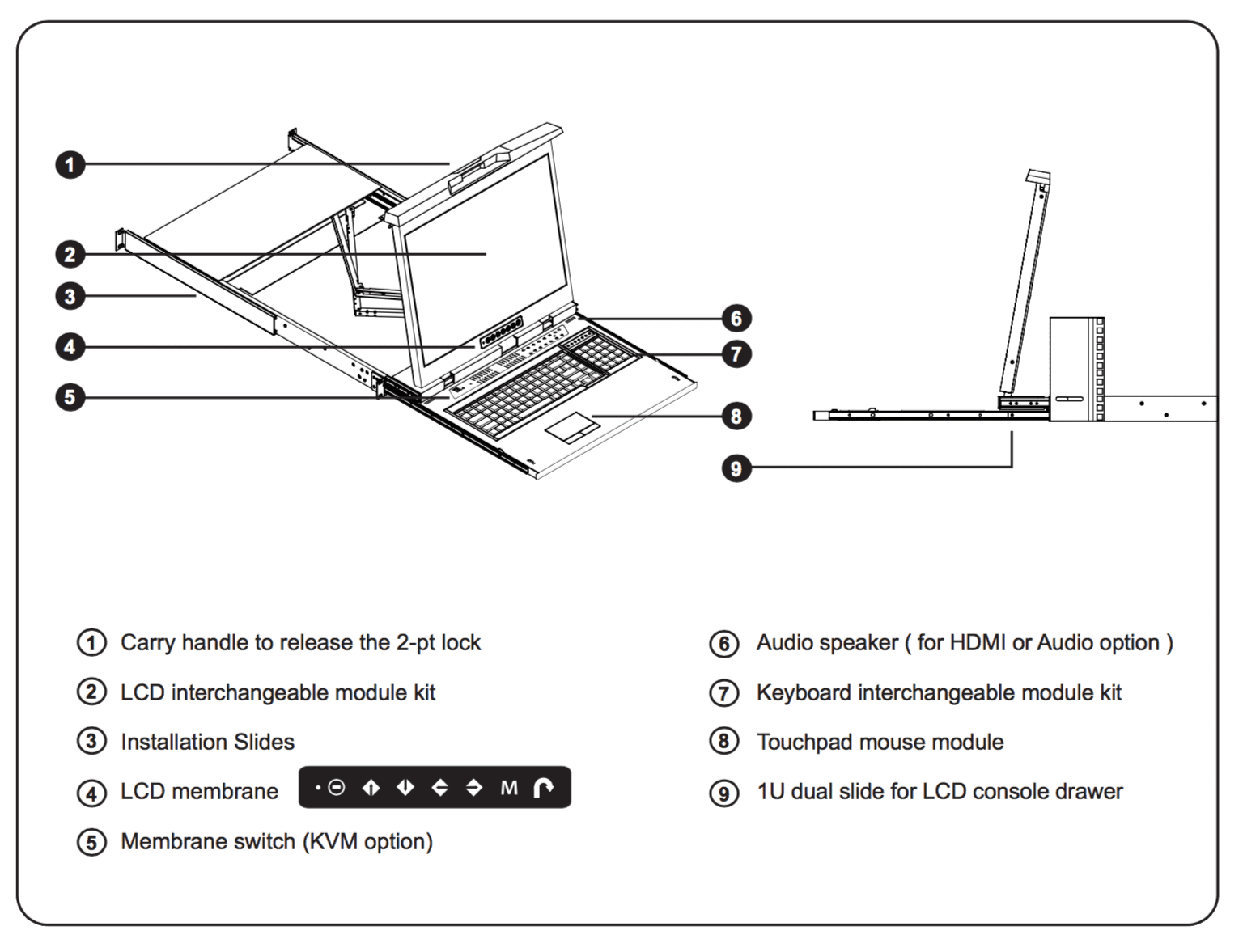

RD119 Diagram

RD119 DB-15 VGA KVM Multi-User IP Diagram (1 Local, 1 Extended, 1 IP User)

RD119 DB-15 VGA KVM Multi-User Diagram (1 Local & 1 Extended)

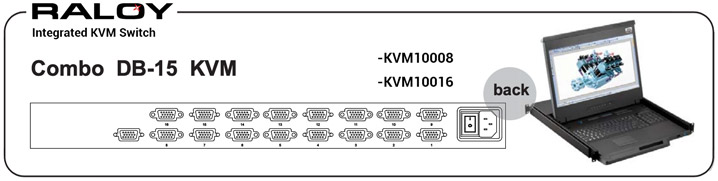

RD119 Integrated DB-15 VGA Combo KVM

RD119 Integrated DB-15 VGA Combo IP KVM

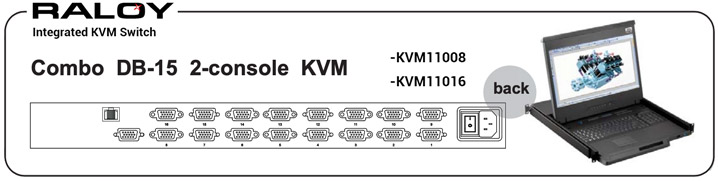

RD119 Integrated DB-15 VGA Combo KVM with 2 Consoles

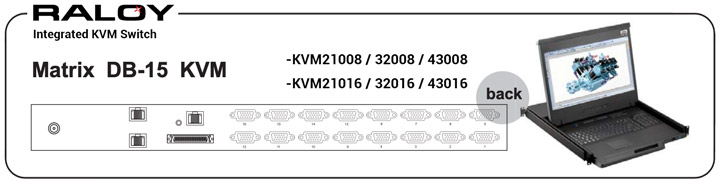

RD119 Integrated DB-15 VGA Matrix KVM

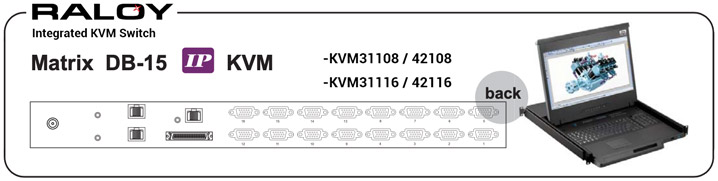

RD119 Integrated DB-15 VGA Matrix IP KVM

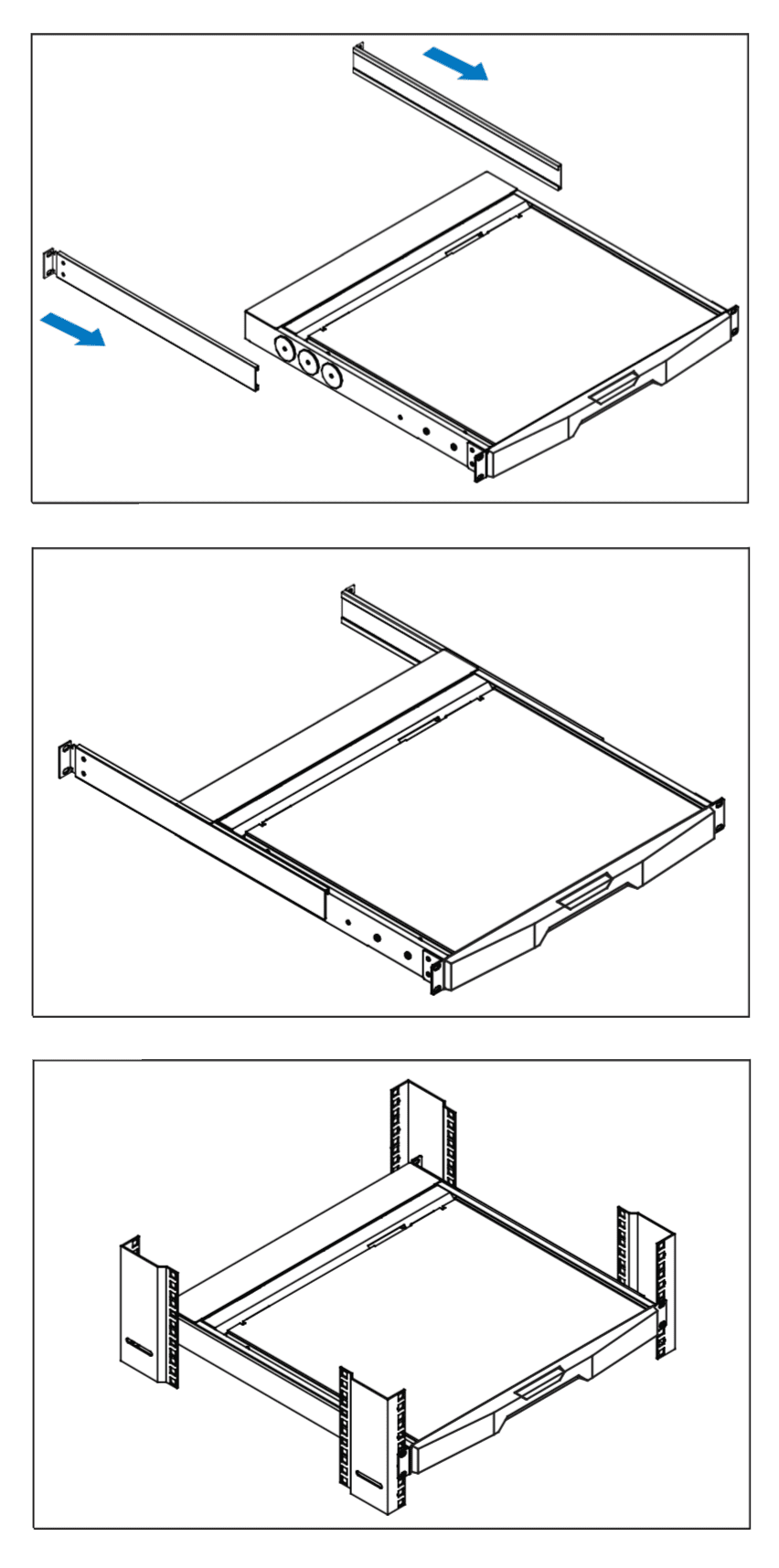

RD119 Installation Diagram

Raloy RD119 with DB-15 VGA KVM Specifications

Height 1.73 in. (44 mm.)
Width 17.4 in. (442 mm.)
Depth25.6 in. (650 mm.)
Package Dimensions23.4 x 33.9 x 5.5 in.
(595 x 860 x 140mm)
Mounting Depth21 in. (min) to 38 in. (max)
(534 to 965 mm)
Form Factor1U rack mounting on dual slide-out rails
Net Weight31.2 lbs. (14.2 kg.)
Gross Weight44.9 lbs. (20.4 kg.)
Operating Temperature32 to 122°F
(0 to 50°C)
Storage Temperature23 to 140°F
(-5 to 60°C)
Relative Humidity5~90%, non-condensing
Shock10G acceleration (11ms duration)
Vibration5~500Hz 1G RMS random vibration
InputAuto-sensing 100 to 240VAC,
50 / 60Hz
ConsumptionMax. 48 Watt, Standby 5 Watt
LCD Display
Diagonal Size19" TFT
Max. Resolution1280 x 1024
Brightness (cd/m2)250
Color Support16.7 Mil.
Contrast Ratio (typ.)1000:1
Viewing Angle (H/V)170° x 160°
Display Area (mm)376 x 301
Response Time (ms)5
VGA Signal InputAnalog RGB, 0.7Vp-p
Sync. TypeSeparate H/V, Composite, SOG
Resolution1280 x 1024 x 60 / 75Hz
1280 x 960 x 60Hz
1280 x 760 x 60 / 75Hz
1152 x 864 x 75Hz
1024 x 768 x 60 / 70 / 75Hz
848 x 480 x 60Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
640 x 400 x 70Hz
640 x 350 x 70Hz
Plug & Play DDCEDID 1.3
Console PortVGA + USB or PS/2, server end
DB15 (VGA, USB KB/MS), console side
CompatibilityMix various PC, SUN, MAC, IBM,
HP & DELL servers
Regulation ApprovalcUL, FCC & CE certified
RoHS2 & REACH compliant
