Raloy 1U 17" HD (1080p) LED Rack Console - with Integrated VGA KVM Switch


Save $141.00
FREE Shipping on orders over $100

Raloy RF117HD-KVM rack console features a 17" 1080p HD LED and an Integrated VGA KVM (DB-15 connection) single or multi user KVM switch. This state-of-the-art modular rack console offers a space saving, streamlined approach to your rack environment by integrating your LCD monitor, KVM switch, Keyboard, Mouse, and Audio options into one unit taking up only 1U (1.73 in.). Please note: For maximum compatibility, Raloy drawers with integrated KVM switches no longer come bundled with cables.

Raloy RF117HD Certifications

Overview - Raloy RF117HD with VGA KVM

  • Rackmount Console with integrated DB-15 VGA KVM in only 1 rackmount unit.
  • 17" Full HD LED LCD with support for resolutions up to 1080p
  • Combo interface: mix PS/2, USB & SUN with Multi-Platform switch capability.
  • Advanced user profiles and configurable OSD hot key combinations.
  • Cascade switches up to 8 levels, 128 servers.
  • UL Approval for LCD Console and DB-15 KVM Switches.
  • 24 Month Limited Warranty - Extended Warranties available for purchase

Features - Raloy RF117HD with Integrated VGA KVM

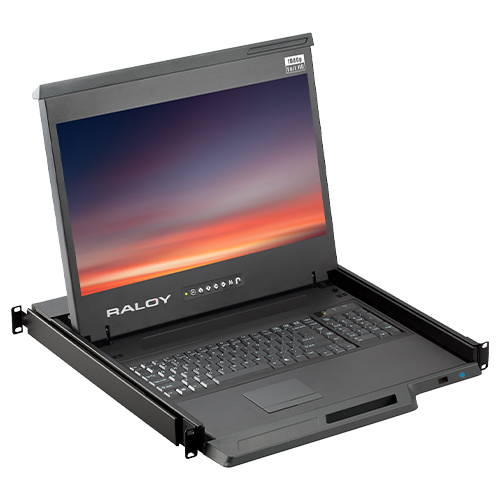

  • Raloy RF117HD Full-HD (1080p) LED Display

    Full-HD (1080p) LED Display

    The Raloy RF117HD features a 17" 1080p LED-backlit LCD delivering up to 1920 x 1080 resolution. DDC2B emulation allows the video settings of the connected computer to be automatically adjusted for optimal display on the console monitor.

  • Raloy RF117HD DB-15 VGA KVM Multi-platform support

    Multi-platform support

    The Raloy RF117HD is designed to be driver-free and works with all known software and computer platforms, including Windows (all), Mac (all), DOS, Linux, Unix, BSD, Sun OS (all), NetWare, etc. RF117HD supports USB, PS2 and Sun keyboard/mouse interfaces.

  • Raloy RF117HD DB-15 VGA KVM Multi-user access & management Diagram

    Multi-user access & management

    One local user and one extended remote user can control 16 multi-platform servers simultaneously. Up to 4 different user profiles can be stored with access rights for each user defined.

    Compare KVMs

  • CatX KVM Receiver for Raloy RF117HD DB-15 VGA KVM

    Integrated CATx extender Options
    (0-3 Remote Users)

    Raloy Cat6 KVMs can be optionally controlled by one to three users from up to 500ft (150m) away over CATx cable using the integrated CATx extender with the included KVM receiver.

  • Raloy RF117HD DB-15 VGA KVM IP Web Browser Access

    IP Web access to severs
    (0-2 VNC / HTTPS Users)

    Use a VNC Viewer or Java Web Browser to connect to servers remotely from anywhere in the world. This IP based method employs enterprise grade security using AES encryption and RSA public key authentication. VNC over IP sessions support resolutions up to 1920 x 1080p.

  • Raloy RF117HD DB-15 VGA KVM UL Certification

    High-quality Build with Certifications for any application

    This Raloy console has been tested and approved for UL, CE, FCC, RoHS Certifications for IT, manufacturing, SOHO, commercial, military, government, and surveillance applications. For TAA Compliant applications, raloys drawers are assembled and tested in California, USA.

  • Raloy RF117HD DB-15 VGA KVM Built-to last - MTBF 50,000 Hours

    Built-to last - MTBF 50,000 Hours

    Tired of low quality TrippLite and Vertiv consoles that break in months? Raloys console drawers have been designed and tested to be highly reliable. As the oldest rack console manufacturer, Raloy has had millions of hours of real application usage of its console drawers and is commited quality.

  • Raloy RF117HD DB-15 VGA KVM 2nd Generation Efficient Design

    2nd Generation Efficient Design

    A decade of testing rack mount monitors led Raloy to their next generation refined design including:

    • Moulded front handle for easy access and use
    • New streamlined and enhanced aesthetics

Choose your Integrated DB-15 VGA KVM

Raloy RF117HD with Matrix DB-15 VGA KVM
16 Ports 8 Ports Local
IP Web
RF117HD-KVM10016 RF117HD-KVM10008 1 0 0
RF117HD-KVM10116 RF117HD-KVM10108 1 1 0
-- -- -- -- --
RF117HD-KVM42116 -- 1 2 1
RF117HD-KVM41216 -- 1 1 2
RF117HD-KVM11016 RF117HD-KVM11008 1 0 1
RF117HD-KVM21016 -- 1 0 1
RF117HD-KVM32016 -- 1 0 2
RF117HD-KVM43016 -- 1 0 3

RF117HD with DB-15 KVM Package Contents

Raloy RF117HD Package Contents

  • (1) RF117HD Rack Console
  • (1) 1U, 19" Rack mount kit w/ brackets & screws
  • (1) US Power Cord
  • (1) 24 Month Limited Warranty
    - Extended Warranties available for purchase
  • *Additional parts may be included based on options

Instructional Media

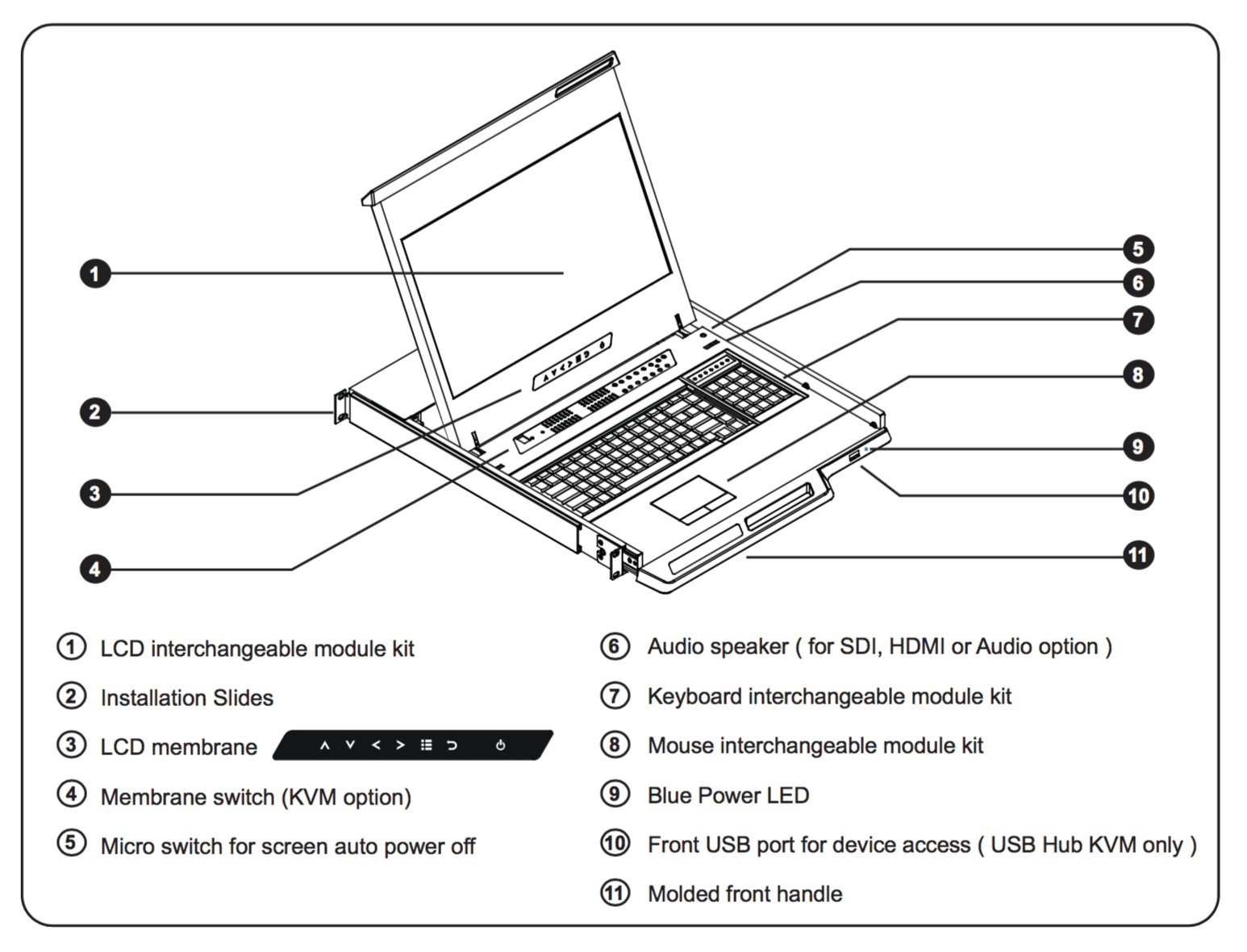

RF117HD Diagram

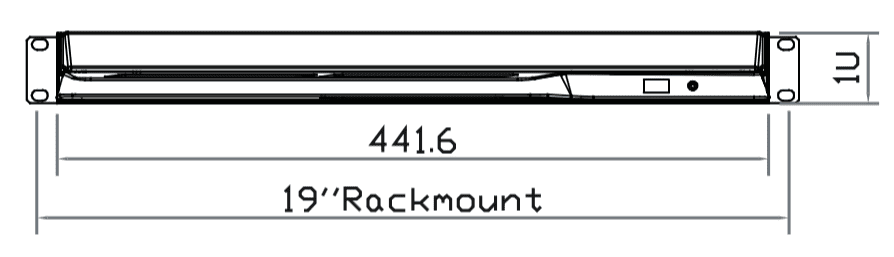

RF117HD Front View

RF117HD DB-15 VGA KVM Multi-User IP Diagram (1 Local, 1 Extended, 1 IP User)

RF117HD DB-15 VGA KVM Multi-User Diagram (1 Local & 1 Extended)

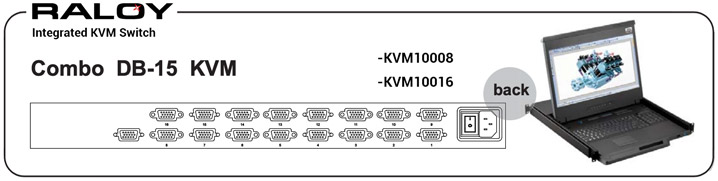

RF117HD Integrated DB-15 VGA Combo KVM

RF117HD Integrated DB-15 VGA Combo IP KVM

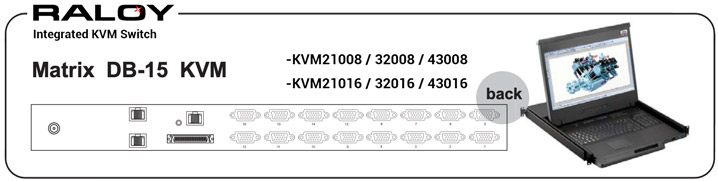

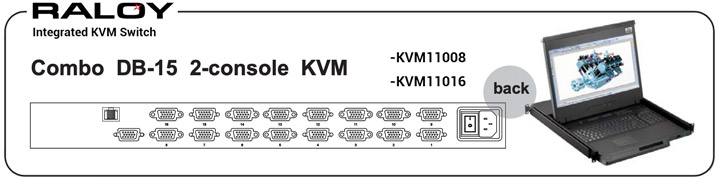

RF117HD Integrated DB-15 VGA Combo KVM with 2 Consoles

RF117HD Integrated DB-15 VGA Matrix KVM

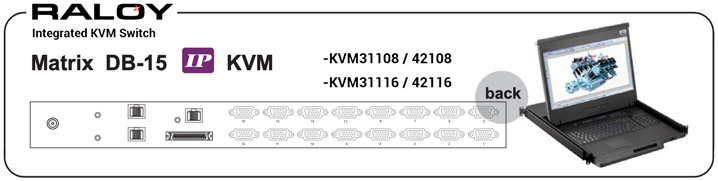

RF117HD Integrated DB-15 VGA Matrix IP KVM

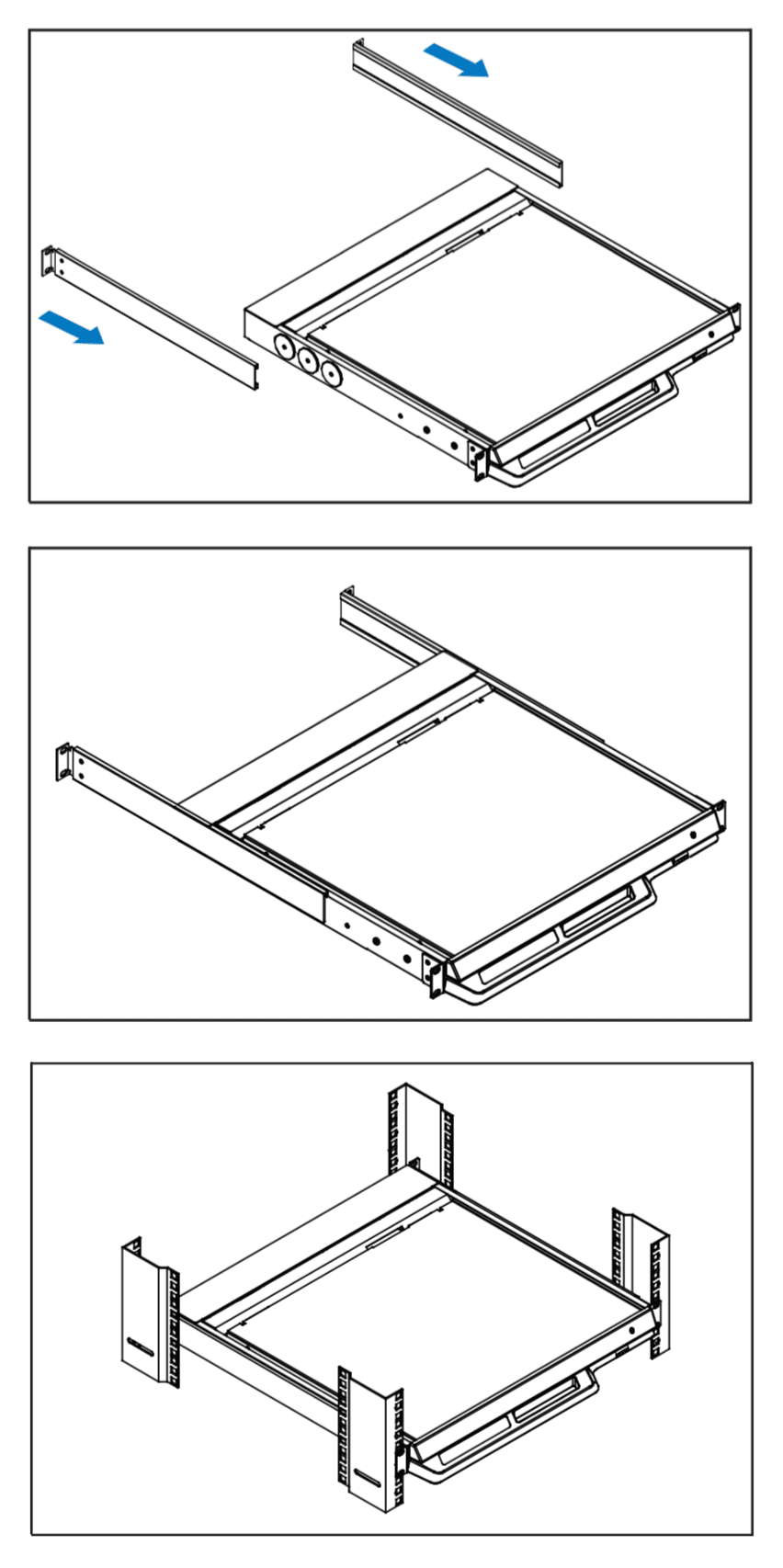

RF117HD Installation Diagram

Raloy RF117HD with DB-15 VGA KVM Specifications

Product Dimensions
Product (W x D x H)
17.4 x 22.8 x 1.73 in. / 441.6 x 580 x 44 mm
Packing (W x D x H)
23.2 x 30.2 x 5.5 in. / 590 x 768 x 140 mm
Net Weight
25.5 lbs / 11.6 kgs
Gross Weight
38.5 lbs / 17.5 kgs
LCD Monitor
Diagonal Size
17.3-inch Widescreen TFT color LCD
Max. Resolution
1920 x 1080
Color Support
1.07 Billion
Contrast Ratio (typical)
Viewing Angle (L/R/U/D)
Display Area (mm)
381.9H x 214.8V
LCD Panel MTBF (hrs)
VGA Signal Input
Analog RGB, 0.7Vp-p
DVI Signal Input DVI-D, TMDS single link
Optional HDMI Signal Input HDMI 1.1, CEA-861-D
Sync. Type
Separate H/V, Composite, SOG
Plug & Play DDC
EDID 1.3
Module Options
104 key notepad keyboard with full numerical pad and multiple keyboard language options.
2 button touchpad or trackball
Other Options
 Broadcast SDI, DC power, and audio input/output options available.
Auto-sensing 100 to 240VAC, 50 / 60Hz
Optional DC
12V/24V/48V DC input
Max. 48 Watt, Standby 5 Watt
Regulatory Approval
32° - 122°F (0° - 50°C)
23° - 140°F (-5° - 60°C)
Relative Humidity
5-90%, non-condensing
10G peak acceleration (11ms, half-sine wave)
5~500Hz 1G RMS random vibration
Package Contains**
1 x RF117HD Rack Console with integrated KVM; 1 x User Manual; 1 x Power Cord; 8 x M6 screws, cage nuts & cup washers
Question: Does the RF117HD-KVM10016B+48 KVM switch have a power switch? if so, what documentation shows this?
Answer: Thank you for your inquiry,

If the model comes with DC power input (RF117HD-KVM10016B+48), there is no power switch on the unit.

The RF117HD-KVM10016B with standard AC power includes a power button under the LCD panel on next to the On-Screen-Display control buttons. For an illustration of this, please refer to page 15 of the Raloy RF117HD Manual.

Please let us know if there is anything else we can help you with!
