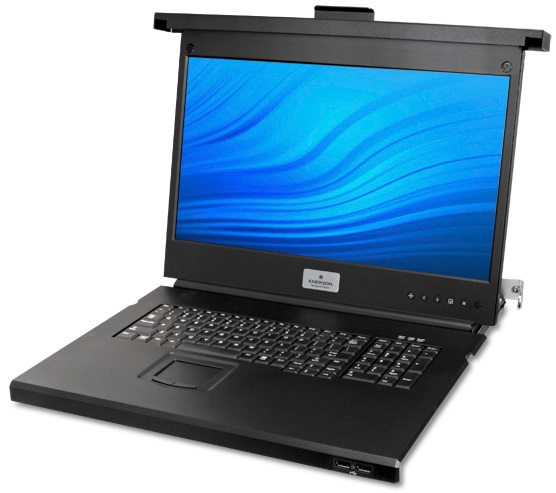

Avocent 18.5" Local Rack Access PS/2 LCD Console with Integrated 16 port IP KVM Switch

LRA185KMM16P-001

$2,270.00

Discontinued
Recommended replacement: Avocent LRA185KMM16D-G01
Alternative options: Contact Us

Interface: PS2 Console + (2) USB Peripheral Pass-Through
Integrated KVM Switch: AV3216 - 16 Port, 2 Local / 1 IP User + VGA/DVI/HDMI/DP Input
Version: Standard

The Avocent PS/2 LRA185KMM16P-001 provides the simplicity, efficiency and ease of use to make it the perfect at the rack access point for your data center, server room or computer closet. The Avocent LRA Console combines the efficiency in power and space consumption needed for an emergency access solution with the convenience and user experience of a workstation solution. With the integrated 8 port KVM Switch, the Avocent LRA185KMM16P-001 enables ease of access to multiple servers making software upgrades, troubleshooting and system monitoring convenient and less time-consuming.

The Avocent LRA Console tray provides field proven access within the data center allowing data center operators immediate access to server, network switches and other IT gear from inside the data center with no need for crash carts or other cumbersome equipment. The tray features standard PS/2 and VGA interfaces providing compatibility to a vast number of servers and devices natively. It is compatible with all recent Avocent¨ data center KVM solutions and can easily be used in conjunction with many of the market-leading Avocent¨ access technologies. The integrated 8 port KVM will fit seamlessly into the same 1U as the LCD tray providing vastly improved utility while preserving valuable data center real estate.

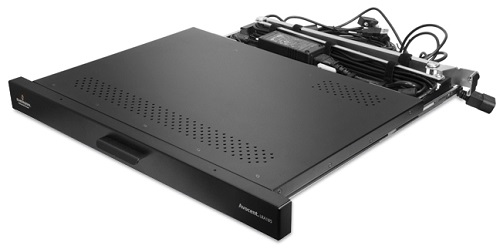

LRA185KMM Closed for storage
Image showing LRA series rack console closed for storage.

  • Large Screen: 16x9 18.5" with variable resolutions for optimal performance
  • Form Factor: Trays are easy to access, yet lock securely in and only 1U preserving rack space
  • KVM Compatibility: LRA Consoles are compatible with all Avocent¨ data center KVM switches
  • On-Screen Display: Easy-to use intuitive design in multiple languages
  • Provides conventional access and control in the data center for emergencies as well as extended use
  • Ease of use: Convenient, full 103-keys keyboard with full number pad
  • Environmentally responsible: Low power usage during operation and standby
  • Global availability: Certifications and keyboard language support
  • Dual USB 2.0 pass-thru for faster data transmission
  • Keyboard available in 11 languages - Call 1-877-586-6654 for availabilit
  • With Integrated 16 port Digital AutoView 3216 KVM Switch





LRA185KMM16P-001 Specifications

Mechanical
Height 1.75 in.
Width 19 in.
Depth

21 in.

Weight 22 lbs
Environmental
Operating Temperature 32° to 120° F
(0° to 50° C)
Storage Temperature -4° to 158° F
(-20° to 70° C)
Power
Operating Voltage Input: 90-264 VAC
Input Consumption 17-20W
Supported Hardware
Keyboard and Mouse Connector PS/2
Video Connector VGA
Hardware Specifications
LCD Resolution 1366 x 768 @60Hz Standard Resolution
1600 x 1200 @60Hz maximum
640 x 400 @60Hz minimum
Refresh range: 55Hz to 85Hz (scaled)
Standards
Approved Agency UL, CE, CCC, BSMI, C-Tick, EAC, VCCI, KCC FCC Class A



UPC / EAN Barcode icon
UPC 636430076706
EAN 0636430076706
