Raloy 1U 19" Dual Rail Rack Console - with Integrated Cat6 KVM Switch

RD119-CATx

$1,565.00$1,296.00
Save $269.00
Integrated KVM: Cat6 KVM (VGA, DVI, HDMI, DisplayPort)
FREE Shipping on orders over $100

Raloy RD119-CATx rack console features a 19" Dual-Slide LCD and an Integrated High Density CATx single or multi user KVM switch. This state-of-the-art modular rack console offers a space saving, streamlined approach to your rack environment by integrating your LCD monitor, KVM switch, Keyboard, Mouse, and Audio options into one unit taking up only 1U (1.73 in.).

Overview - Raloy RD119 with CATx KVM

  • Rackmount Console with integrated CATx KVM in only 1U.
  • Dual slide rails: retractable keyboard & independent LCD display
  • 19 in. LCD - 1280 x 1024 Max. Resolution
  • Supports HDMI, DisplayPort, DVI, VGA-USB & VGA-PS/2 server interface.
  • Up to 130 feet (40 meters) between your server & KVM switch
  • Advanced user profiles and configurable OSD hot key combinations.
  • Cascade switches up to 8 levels, 128 servers.
  • Enhanced Cat6 cable management with remote access over 985ft (300m)
  • UL Approval for LCD Console and CATx KVM Switches.
  • 24 Month Limited Warranty - Extended Warranties available for purchase

Raloy RD119 Certifications

Features - Raloy RD119 with Integrated CATx KVM

  • Raloy RD119 Dual-Slide 19

    Dual-Slide 19" Display

    The Raloy RD119 features a standard 19" LCD delivering up to 1280 x 1024 resolution. Independent rails for the monitor and keyboard allow the monitor to stay up while the keyboard is stored. DDC2B emulation ensures optimal video settings for the display on the console monitor.

  • KVM Dongle for Raloy RD119 Cat6 KVM

    VGA, DVI, HDMI & DisplayPort KVM Dongles

    Raloy Cat6 KVMs support any combination of VGA, DVI, HDMIDisplayPort, USB, and PS/2 sources with optional audio through low-cost KVM dongles. Source computers can be located up to 131 feet (40 m) away via Cat5/6 cable.

    Compare CAMs

  • Raloy RD119 Multi-user access & management Diagram

    Multi-user access & management

    One local user and one extended remote user can control 16 multi-platform servers simultaneously. Up to 4 different user profiles can be stored with access rights for each user defined.

    Compare KVMs


  • CV-S101 CatX KVM Receiver for Raloy RD119 Cat6 KVM

    Integrated CATx extender
    (0-3 Remote Users)

    Raloy Cat6 KVMs can be optionally controlled by one to three users from up to 500ft (150m) away over CATx cable using the integrated CATx extender with the included KVM receiver.

  • Raloy RD119 Cat6 KVM IP Web Browser Access

    IP Web access to severs
    (0-2 HTTPS Users)

    Use Java web browser to connect to servers remotely from anywhere in the world. This IP based method employs enterprise grade security using AES encryption and RSA public key authentication.

  • Raloy RD119 Cat6 KVM Multi-platform support

    Multi-platform support

    The Raloy RD119 is designed to be driver-free and works with all known software and computer platforms, including Windows (all), Mac (all), DOS, Linux, Unix, BSD, Sun OS (all), NetWare, etc. RD119 supports USB, PS2 and Sun keyboard/mouse interfaces.


  • Raloy RD119 Cat6 KVM UL Certification

    High-quality Build with Certifications for any application

    This Raloy console has been tested and approved for UL, CE, FCC, RoHS Certifications for IT, manufacturing, SOHO, commercial, military, government, and surveillance applications. For TAA Compliant applications, raloys drawers are assembled and tested in California, USA.

  • Raloy RD119 Cat6 KVM Built-to last - MTBF 50,000 Hours

    Built-to last - MTBF 50,000 Hours

    Tired of low quality TrippLite and Vertiv consoles that break in months? Raloys console drawers have been designed and tested to be highly reliable. As the oldest rack console manufacturer, Raloy has had millions of hours of real application usage of its console drawers and is commited quality.

  • Raloy RD119 Cat6 KVM 2nd Generation Efficient Design

    2nd Generation Efficient Design

    A decade of testing rack mount monitors led Raloy to their next generation refined design including:

    • Moulded front handle for easy access and use
    • New streamlined and enhanced aesthetics

Choose your Integrated Cat6 KVM

Raloy RD119 with Matrix CAT6 KVM
Matrix CAT6 KVM
32 Ports16 Ports8 PortsLocal
Users
IP Web
Users
Extended
Users
RD119-CATx10032 RD119-CATx10016RD119-CATx10008100
RD119-CATx10132 RD119-CATx10116RD119-CATx10108110
RD119-CATx31132 RD119-CATx31116--111
RD119-CATx42132 RD119-CATx42116--112
RD119-CATx41232 RD119-CATx41216--121
RD119-CATx21032 RD119-CATx21016--101
RD119-CATx32032 RD119-CATx32016--102
RD119-CATx43032 RD119-CATx43016--103

RD119 with DB-15 Hub KVM Package Contents

Raloy RD119 Package Contents

  • (1) RD119 Rack Console
  • (1) 1U, 19" Rack mount kit w/ brackets & screws
  • (0-3) KVM receiver for extended console
  • (0-3) RCB-6 VGA/USB console cable - for receiver
  • (1-4) US Power Cord (console + one for each receiver)
  • (1) 24 Month Limited Warranty
    - Extended Warranties available for purchase
  • *Additional parts may be included based on options

Instructional Media

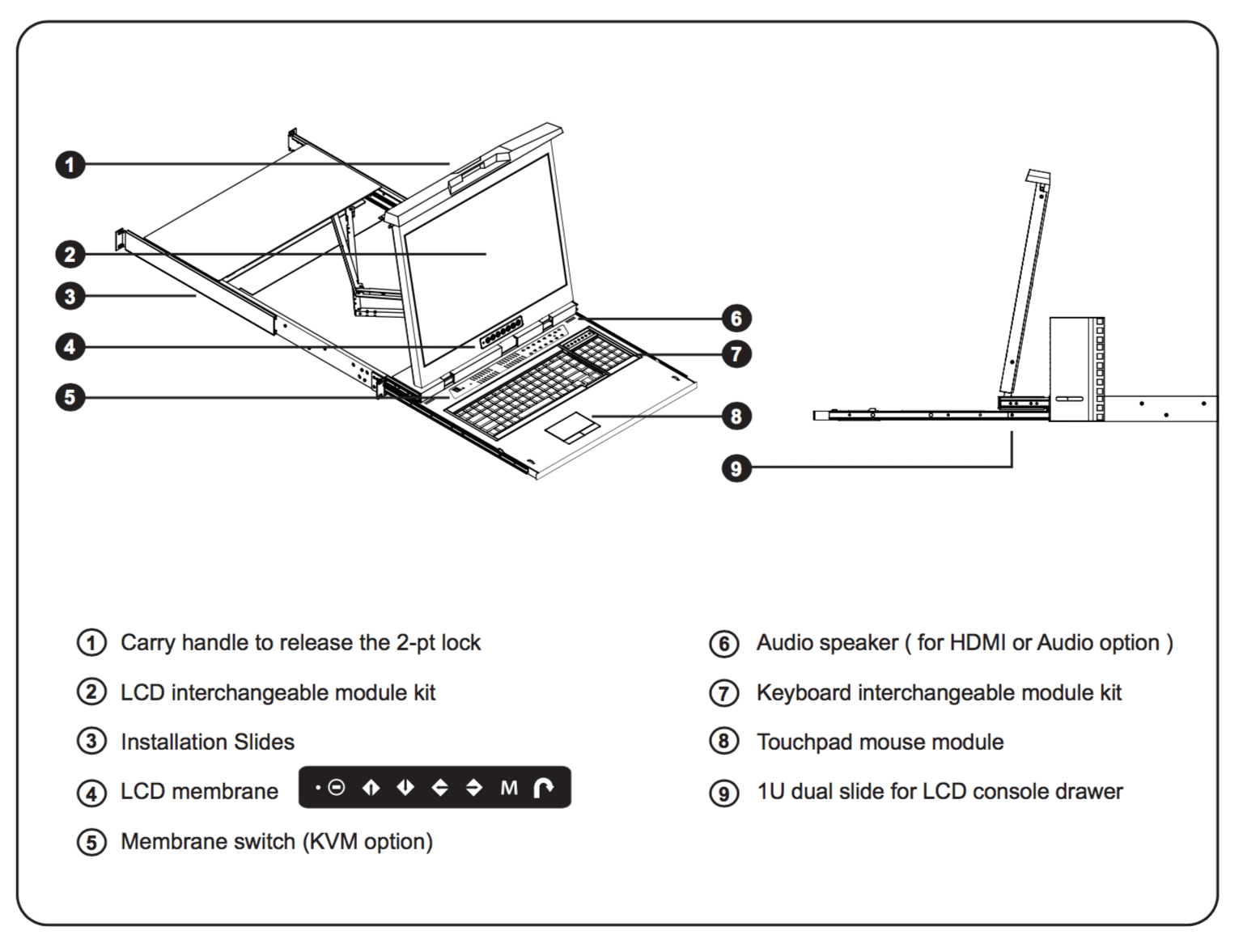

RD119 Diagram

RD119 Cat6 KVM Multi-User IP Diagram (1 Local, 1 Extended, 1 IP User)

RD119 Cat6 KVM Multi-User Diagram (1 Local & 1 Extended)

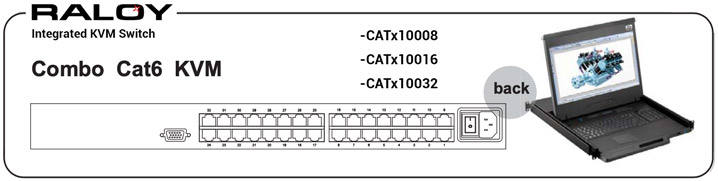

RD119 Integrated Cat6 Combo KVM

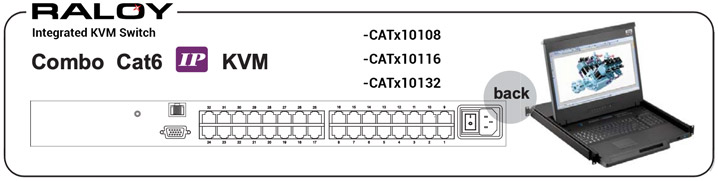

RD119 Integrated Cat6 Combo IP KVM

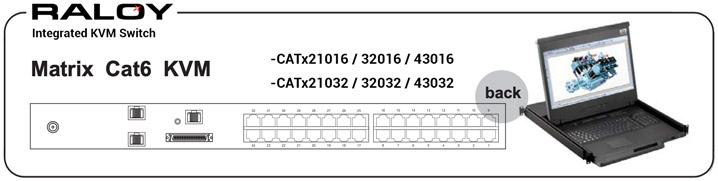

RD119 Integrated Cat6 Combo KVM with 2 Consoles

RD119 Integrated Cat6 Matrix KVM

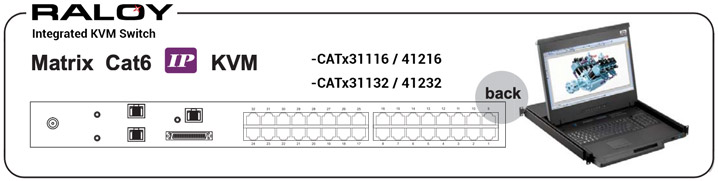

RD119 Integrated Cat6 Matrix IP KVM

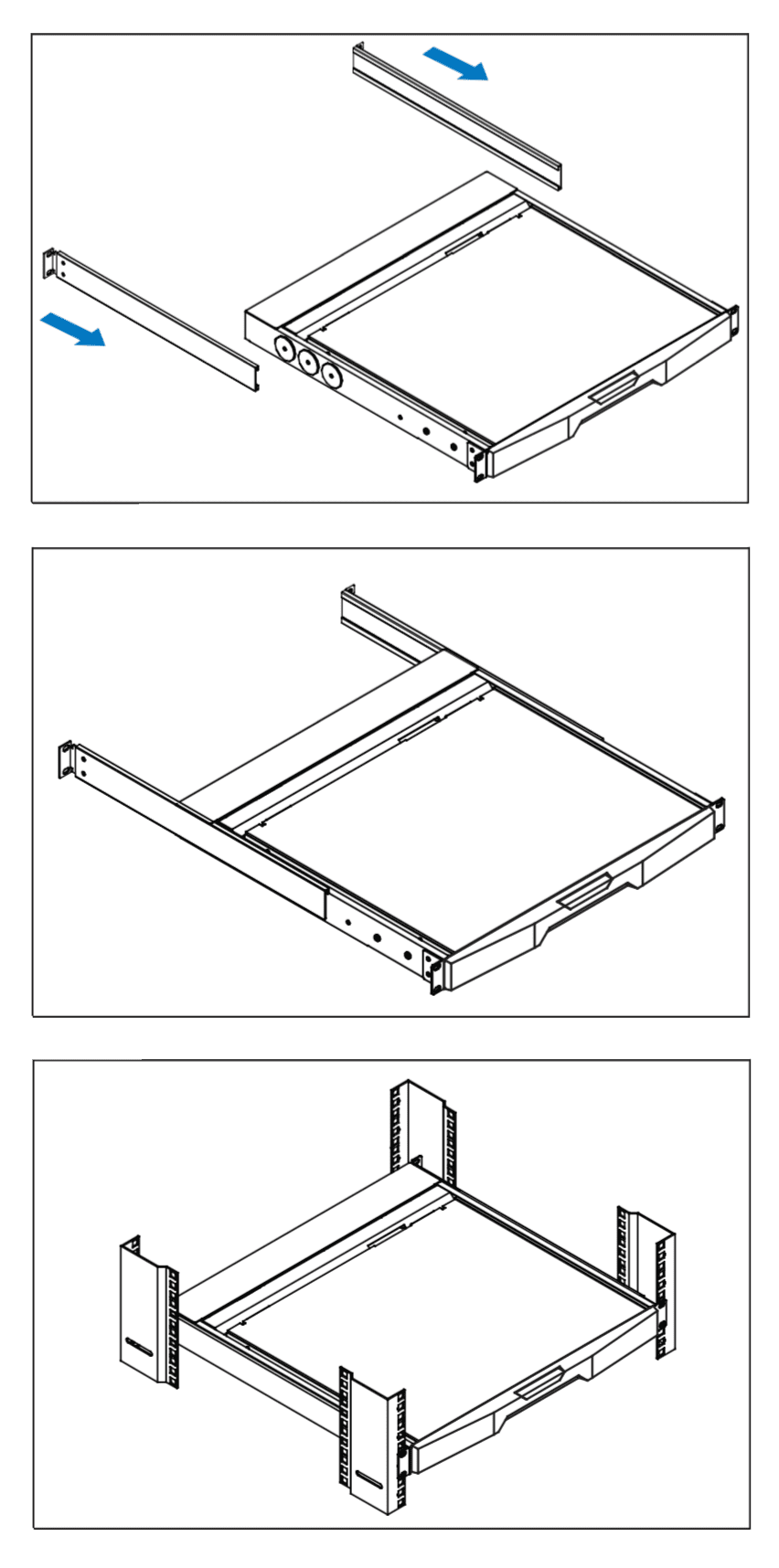

RD119 Installation Diagram

Raloy RD119 with CATx KVM Specifications

Mechanical
Height 1.73 in. (44 mm.)
Width 17.4 in. (442 mm.)
Depth25.6 in. (650 mm.)
Package Dimensions23.4 x 33.9 x 5.5 in.
(595 x 860 x 140mm)
Mounting Depth21 in. (min) to 38 in. (max)
(534 to 965 mm)
Form Factor1U rack mounting on dual slide-out rails
Net Weight31.2 lbs. (14.2 kg.)
Gross Weight44.9 lbs. (20.4 kg.)
Environmental
Operating Temperature32 to 122°F
(0 to 50°C)
Storage Temperature23 to 140°F
(-5 to 60°C)
Relative Humidity5~90%, non-condensing
Shock10G acceleration (11ms duration)
Vibration5~500Hz 1G RMS random vibration
Power
InputAuto-sensing 100 to 240VAC,
50 / 60Hz
ConsumptionMax. 48 Watt, Standby 5 Watt
LCD Display
Diagonal Size19" TFT
Max. Resolution1280 x 1024
Brightness (cd/m2)250
Color Support16.7 Mil.
Contrast Ratio (typ.)1000:1
Viewing Angle (H/V)170° x 160°
Display Area (mm)376 x 301
Response Time (ms)5
VGA Signal InputAnalog RGB, 0.7Vp-p
Sync. TypeSeparate H/V, Composite, SOG
Resolution1280 x 1024 x 60 / 75Hz
1280 x 960 x 60Hz
1280 x 760 x 60 / 75Hz
1152 x 864 x 75Hz
1024 x 768 x 60 / 70 / 75Hz
848 x 480 x 60Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
640 x 400 x 70Hz
640 x 350 x 70Hz
Plug & Play DDCEDID 1.3
Console PortVGA + USB or PS/2, server end
DB15 (VGA, USB KB/MS), console side
CompatibilityMix various PC, SUN, MAC, IBM,
HP & DELL servers
Regulation ApprovalcUL, FCC & CE certified
RoHS2 & REACH compliant
