Raloy 1U 17" HD (1080p) Mac-keyboard Rack Console - with Integrated VGA KVM Switch

RF117HDM-KVM

$1,921.00

Discontinued
Replaced by: Raloy RF117HD with VGA KVM
Alternative options: Contact Us

Integrated KVM: DB-15 VGA KVM

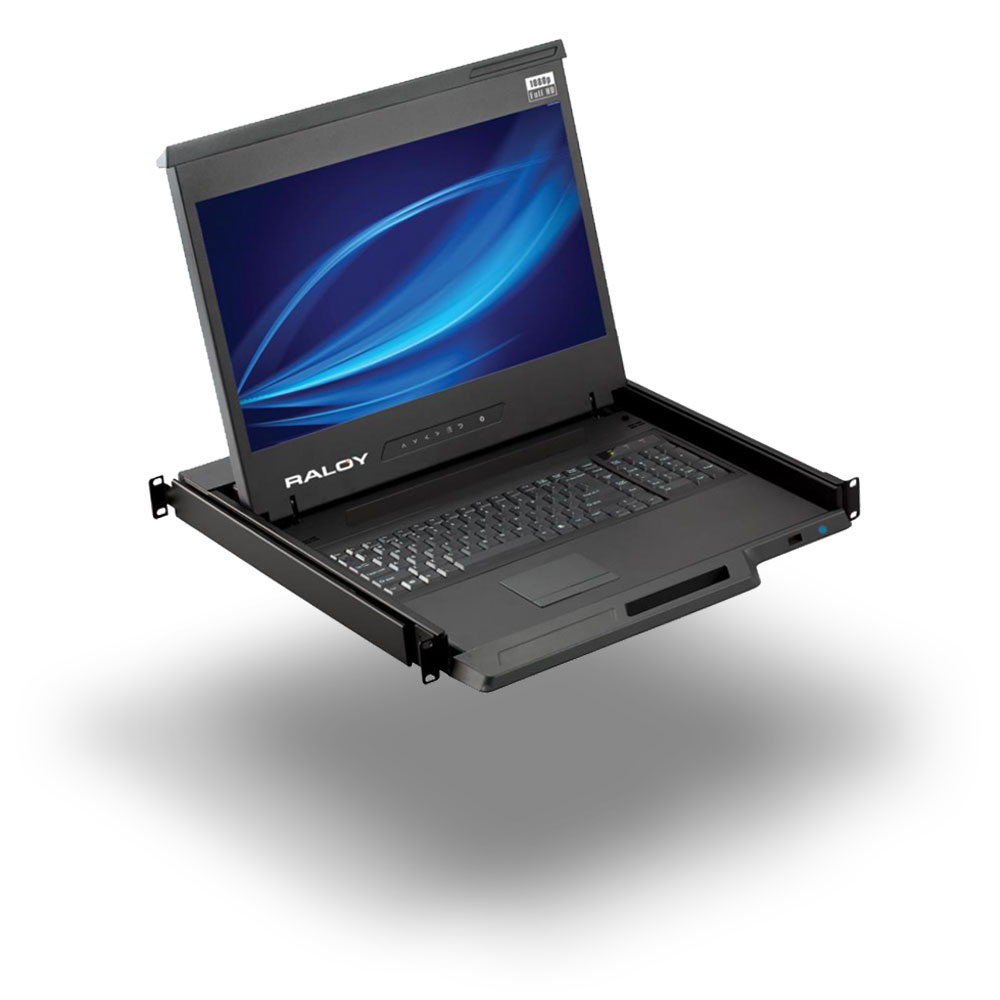

Raloy RF117HDM-KVM rack console features a 17" 1080p HD LED and an Integrated VGA KVM (DB-15 connection) single or multi user KVM switch. This state-of-the-art modular rack console offers a space saving, streamlined approach to your rack environment by integrating your LCD monitor, KVM switch, Keyboard, Mouse, and Audio options into one unit taking up only 1U (1.73 in.).

Raloy RF117HDM Certifications

Overview - Raloy RF117HDM with VGA KVM

  • Rackmount Console with Mac Keyboard & Integrated DB-15 VGA KVM in only 1 rackmount unit.
  • 17" Full HD LED LCD with support for resolutions up to 1080p
  • DB-15 VGA 4-in-1 cables included, with connections for PS2 and USB servers (p/n RCE-6).
  • Combo interface: mix PS/2, USB & SUN with Multi-Platform switch capability.
  • Advanced user profiles and configurable OSD hot key combinations.
  • Cascade switches up to 8 levels, 128 servers.
  • UL Approval for LCD Console and DB-15 KVM Switches.
  • 24 Month Limited Warranty - Extended Warranties available for purchase

Features - Raloy RF117HDM with Integrated VGA KVM

  • Raloy RF117HD Full-HD (1080p) LED Display

    Full-HD (1080p) LED Display

    The Raloy RF117HD features a 17" 1080p LED-backlit LCD delivering up to 1920 x 1080 resolution. DDC2B emulation allows the video settings of the connected computer to be automatically adjusted for optimal display on the console monitor.

  • Raloy RF117HDM DB-15 VGA KVM Multi-platform support

    Multi-platform support

    The Raloy RF117HDM is designed to be driver-free and works with all known software and computer platforms, including Windows (all), Mac (all), DOS, Linux, Unix, BSD, Sun OS (all), NetWare, etc. RF117HDM supports USB, PS2 and Sun keyboard/mouse interfaces.

  • Raloy RF117HDM DB-15 VGA KVM Multi-user access & management Diagram

    Multi-user access & management

    One local user and one extended remote user can control 16 multi-platform servers simultaneously. Up to 4 different user profiles can be stored with access rights for each user defined.

    Compare KVMs


  • CatX KVM Receiver for Raloy RF117HDM DB-15 VGA KVM

    Integrated CATx extender
    (0-3 Remote Users)

    Raloy Cat6 KVMs can be optionally controlled by one to three users from up to 500ft (150m) away over CATx cable using the integrated CATx extender with the included KVM receiver.

  • Raloy RF117HDM DB-15 VGA KVM IP Web Browser Access

    IP Web access to severs
    (0-2 VNC / HTTPS Users)

    Use a VNC Viewer or Java Web Browser to connect to servers remotely from anywhere in the world. This IP based method employs enterprise grade security using AES encryption and RSA public key authentication. VNC over IP sessions support resolutions up to 1920 x 1080p.

  • Raloy RF117HDM DB-15 VGA KVM UL Certification

    High-quality Build with Certifications for any application

    This Raloy console has been tested and approved for UL, CE, FCC, RoHS Certifications for IT, manufacturing, SOHO, commercial, military, government, and surveillance applications. For TAA Compliant applications, raloys drawers are assembled and tested in California, USA.


  • Raloy RF117HDM DB-15 VGA KVM Built-to last - MTBF 50,000 Hours

    Built-to last - MTBF 50,000 Hours

    Tired of low quality TrippLite and Vertiv consoles that break in months? Raloys console drawers have been designed and tested to be highly reliable. As the oldest rack console manufacturer, Raloy has had millions of hours of real application usage of its console drawers and is commited quality.

  • Raloy RF117HDM DB-15 VGA KVM 2nd Generation Efficient Design

    2nd Generation Efficient Design

    A decade of testing rack mount monitors led Raloy to their next generation refined design including:

    • Moulded front handle for easy access and use
    • New streamlined and enhanced aesthetics

Choose your Integrated DB-15 VGA KVM

Raloy RF117HDM with Matrix DB-15 VGA KVM
DB-15 VGA KVM
16 Ports8 PortsLocal
Users
IP Web
Users
Extended
Users
RF117HDM-KVM10016RF117HDM-KVM10008100
RF117HDM-KVM10116RF117HDM-KVM10108110
RF117HDM-KVM31116--111
RF117HDM-KVM42116--121
RF117HDM-KVM41216--112
RF117HDM-KVM11016RF117HDM-KVM11008101
RF117HDM-KVM21016 --101
RF117HDM-KVM32016--102
RF117HDM-KVM43016--103

RF117HDM with DB-15 Hub KVM Package Contents

Raloy RF117HDM Package Contents

  • (1) RF117HDM Rack Console
  • (1) 1U, 19" Rack mount kit w/ brackets & screws
  • (8-16) RCB-6 VGA/USB console cable
  • (0-3) KVM receiver for extended console
  • (0-3) RCB-6 VGA/USB console cable - for receiver
  • (1-4) US Power Cord (console + one for each receiver)
  • (1) 24 Month Limited Warranty
    - Extended Warranties available for purchase
  • *Additional parts may be included based on options

Instructional Media

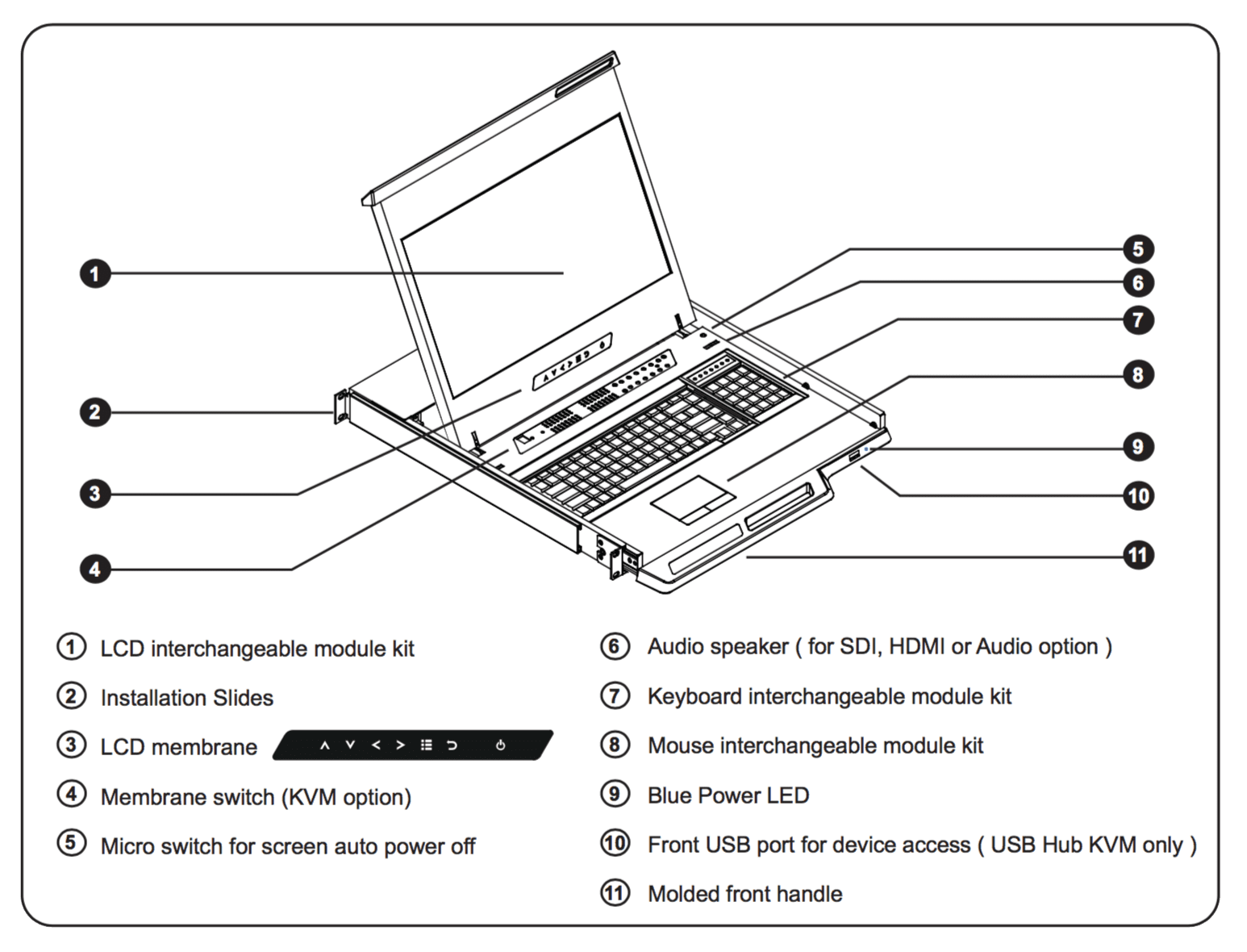

RF117HDM Diagram

RF117HDM Front View

RF117HDM DB-15 VGA KVM Multi-User IP Diagram (1 Local, 1 Extended, 1 IP User)

RF117HDM DB-15 VGA KVM Multi-User Diagram (1 Local & 1 Extended)

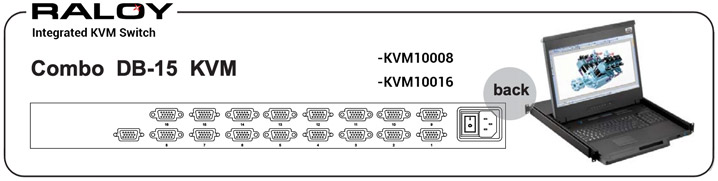

RF117HDM Integrated DB-15 VGA Combo KVM

RF117HDM Integrated DB-15 VGA Combo IP KVM

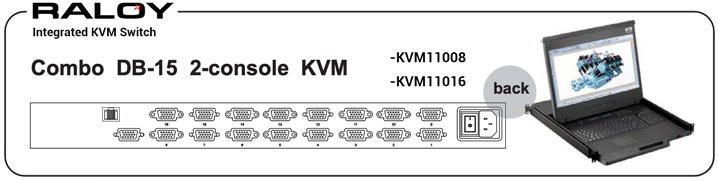

RF117HDM Integrated DB-15 VGA Combo KVM with 2 Consoles

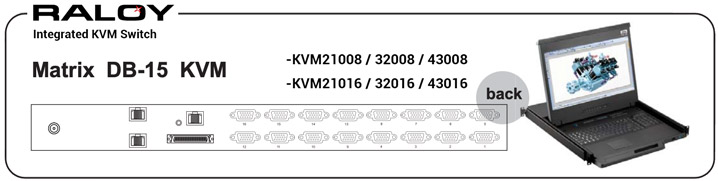

RF117HDM Integrated DB-15 VGA Matrix KVM

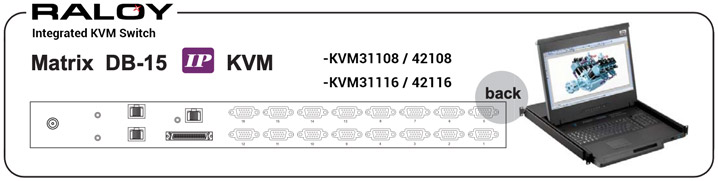

RF117HDM Integrated DB-15 VGA Matrix IP KVM

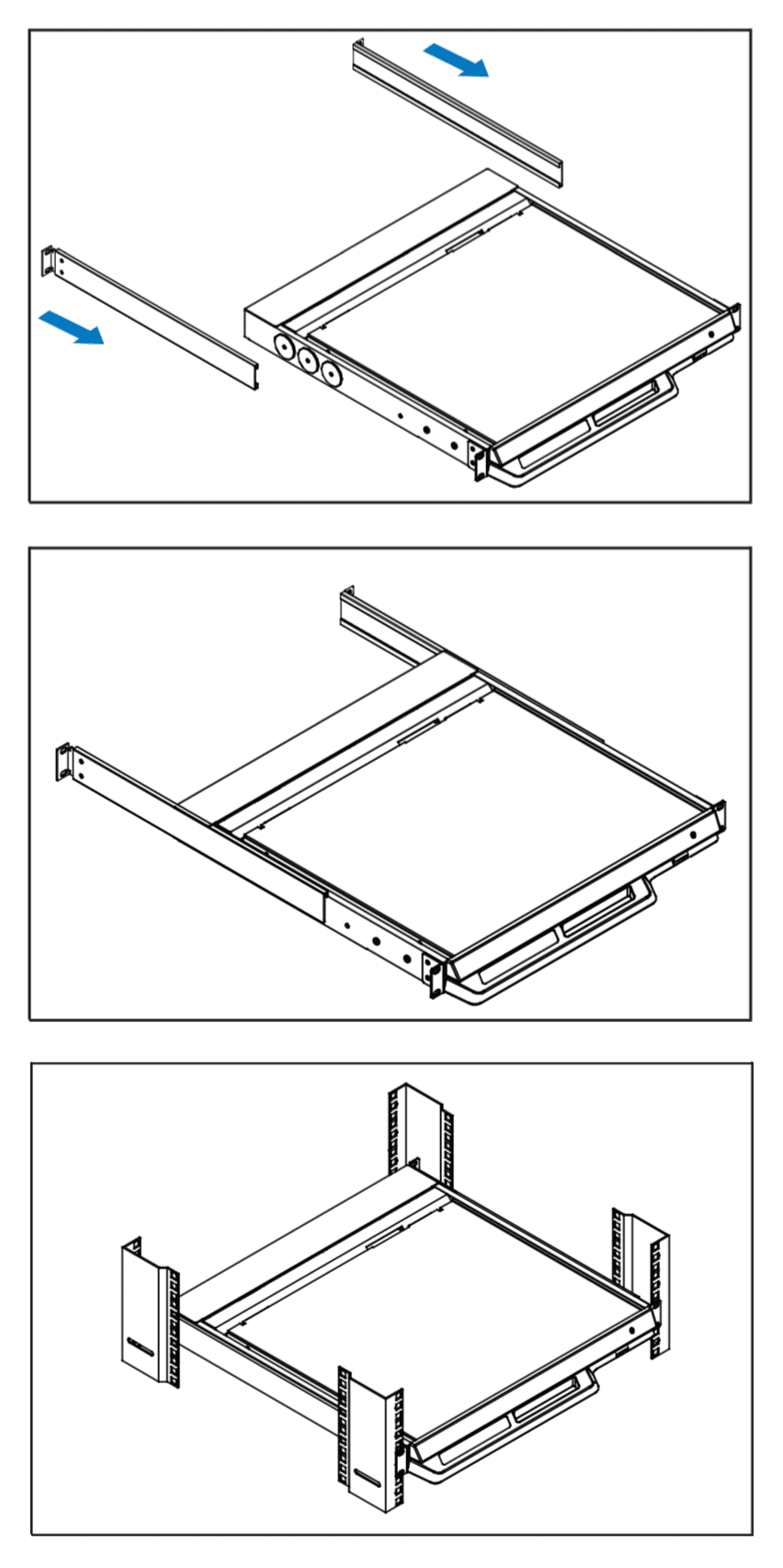

RF117HDM Installation Diagram

Raloy RF117HDM with DB-15 VGA KVM Specifications

Product Dimensions
Product (W x D x H)
17.4 x 22.8 x 1.73 in. / 441.6 x 580 x 44 mm
Packing (W x D x H)
23.2 x 30.2 x 5.5 in. / 590 x 768 x 140 mm
Net Weight
25.5 lbs / 11.6 kgs
Gross Weight
38.5 lbs / 17.5 kgs
LCD Monitor
Diagonal Size
17.3-inch Widescreen TFT color LCD
Max. Resolution
1920 x 1080
Brightness
300
Color Support
1.07 Billion
Contrast Ratio (typical)
600:1
Viewing Angle (L/R/U/D)
89/89/89/89
Display Area (mm)
381.9H x 214.8V
LCD Panel MTBF (hrs)
20,000
VGA Signal Input
Analog RGB, 0.7Vp-p
DVI Signal InputDVI-D, TMDS single link
Optional HDMI Signal InputHDMI 1.1, CEA-861-D
Sync. Type
Separate H/V, Composite, SOG
Plug & Play DDC
EDID 1.3
Module Options
Keyboard
104 key notepad keyboard with full numerical pad and multiple keyboard language options.
Mouse
2 button touchpad or trackball
Other Options
 Broadcast SDI, DC power, and audio input/output options available.
Power
Input
Auto-sensing 100 to 240VAC, 50 / 60Hz
Optional DC
12V/24V/48V DC input
Consumption
Max. 48 Watt, Standby 5 Watt
Regulatory Approval
UL, cUL, FCC, CE
Environmental
Operation
32° - 122°F (0° - 50°C)
Storage
23° - 140°F (-5° - 60°C)
Relative Humidity
5-90%, non-condensing
Shock
10G peak acceleration (11ms, half-sine wave)
Vibration
5~500Hz 1G RMS random vibration
Package Contains**
1 x RF117HD Rack Console; 1 x RCX-6 DVI-D/USB console cable (or RCB-6 VGA/USB cable upon request); 1 x User Manual; 1 x Power Cord; 8 x M6 screws, cage nuts & cup washers

Accessories
