7U rackmount 19" widescreen LCD with DVI-D / VGA input

RP-W719

$553.00
Model: RP-W719
FREE Shipping on orders over $100

The RP-W719 is a 7U 19" rackmount LCD monitor with features such as a built in LCD OSD to provide effective assistance for an administrator to control multiple PCs. The RP series provides a cost effective rackmount monitor solution for your limited IT budget in a space saving, highly customizable package.

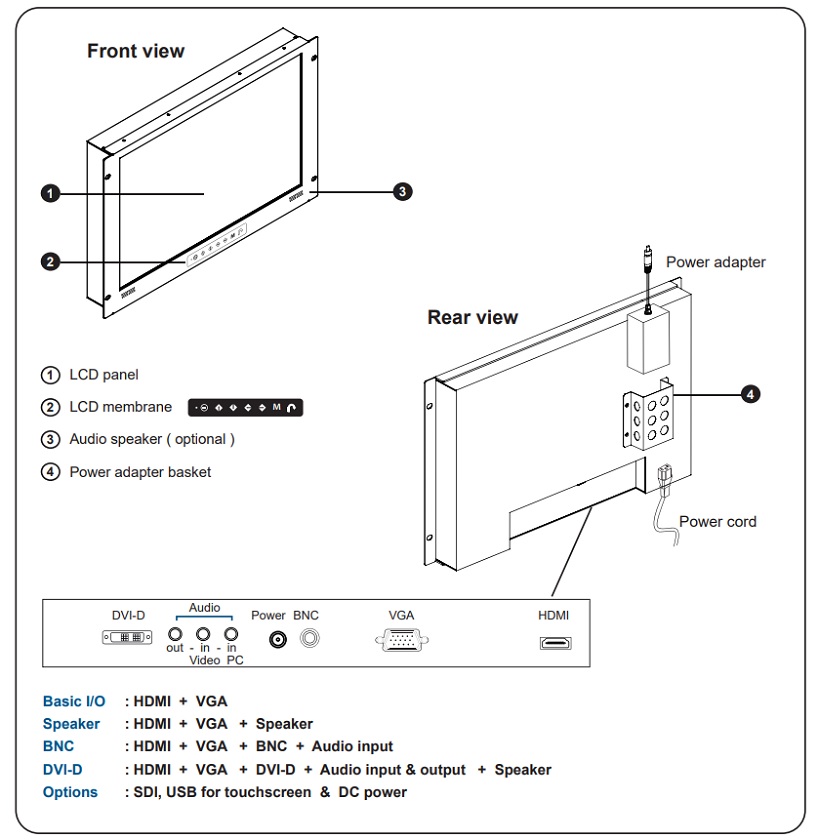

Austin Hughes CyberView RP-W719 Diagram

RP-W719 Features & Benefits

  • 7U 19" widescreen LCD display panel
  • 1440 x 900 native resolution / 16.7M colors / 1000 cd/m2 brightness
  • DVI-D + VGA video input
  • 2-year standard warranty ( upgradable up to 5 years )

Available Upgrades

  • Basic I/O: DVI-D + VGA
  • AV2.2D upgrade: DVI-D + VGA + BNC + S-Video + audio
  • AV2.2H upgrade: HDMI + VGA + BNC + S-Video + audio
  • AV3.0 upgrade: HDMI + DVI-D + VGA + BNC + S-Video + audio
  • Options: USB for touchscreen & DC power
    SDI ( AV3.0 upgrade required)

RP-W719 Rear

RP-W719 Package Contents

CyberView RP-W719 Package Contents
  • (1) RP-W719 Rack LCD Panel
  • (1) 6ft VGA cable
  • (1) Power adapter
  • (1) Power cord
  • (1) 2-year standard warranty ( upgradable up to 5 years )

RP-W719 Specifications

Mechanical
Product Dimensions (H x W x D)12.2 x 18.9 x 2.3 in
( 310 x 480 x 58 mm )
Package Dimensions (H x W x D)17.8 x 20.8 x 4.9 in
( 451 x 529 x 124 mm )
Net Weight12.8 lb ( 5.8 kg )
Gross Weight17.4 lb ( 7.9 kg )
Console Ports
Video InputVGA + DVI-D single link
Video OptionHDMI 1.2 / HDCP 1.1
S-Video ( 4-pin ) - NTSC & PAL
Composite ( BNC ) - NTSC & PAL
LCD Screen
LCD panel size ( diagonal )19"
Backlight typeCCFL
Native resolution1600 x 1200
Brightness (cd/m2)300
Colors16.7 M
Contrast Ratio (typ)1000 : 1
Viewing angle ( L/R/U/D ) 80/80/80/80
Viewing angle (H x V) 160° x 160°
Response time ( ms )5
Dot pitch ( mm )0.2835
Display area ( mm )408.24H x 255.15V
Surface treatmentHaze 25%, Hard-coating
Surface hardness3H
MTBF (hrs)50,000
Audio Option
Speaker2x 2W (Dual Stereo)
Input Connector3.5mm stereo jack
Input Impedance / Power level 30Ω / 750mV
Output Connector3.5mm stereo jack
Output Impedance / Power level 30Ω / 2.8V
Power
Power InputAuto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
Screen onMax. 25W
Power saving modeMax. 4W
Power button onMax. 1W
Environmental
Operating Temperature0 to 55°C Degree
Storage Temperature-20 to 60°C Degree
Operating Humidity20~90%, non-condensing
Relative Humidity5~90%, non-condensing
Operating Altitude16,000 ft
Non-operating Altitude40,000 ft
Shock 10G acceleration (11ms duration)
Vibration10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMCFCC & CE certified
SafetyCE / LVD certified
EnvironmentRoHS2 & REACH compliant
Question: Do you have this unit with a AV 3.0 upgrade available for shipment?
Answer: Thank you for your inquiry. This device with the AV 3.0 upgrade is typically in stock and would ship directly form the manufacturer.

For the most up to date availability, please contact you KVM Switches Online representative directly via our online chat feature or by calling 1-877-586-6654.

Question: is this unit available to ship today? How do I ship 3 day?
Answer: Thank you for your inquiry,

The RP-W719 comes back into stock early next week. Products over $100 include free shipping which gets to most of the country wihin 3-4 days (see

You can also select "3-Day Select Shipping" during checkout to ensure 3 day delivery (see the UPS Time-in-Transit tool to see how long it would take using ground).

For a alternative units ready to ship today based on your application, please feel free to contact your KVM Switches Online sales representative directly.

Question: Does IP65 / NEMA4 Dust & Water Protection option interfere with W19TCB: e-Capacitive touch screen option's functionality? Would the extra 2mm of glass make the touchscreen harder to use or less responsive than without the protection option?
Answer: Thank you for your inquiry,

IP65/NEMA4 option can be applied to the RP-W719-TCB (RP-W719 with W19TCB option), the manufacturer will seal all the area around the display in order to comply with IP65/NEMA4. There will be no 2mm glass on top of the touchscreen.

Please note, IP65/NEMA4 protection cannot be applied to any model with speakers.
