1U Side-mount 23" 4K UHD Rack LCD Drawer

K123

$1,439.00
Model: K123
  • + Compare Family
Version: 4K UHD & 1080p (16:9) Display
FREE Shipping on orders over $100

The newest CyberView K123 4K Rackmount LCD monitor series easily adds side access to your rack environment. With the choice between a left facing monitor or a right facing monitor, as well as the ability to combine this powerful console drawer with an integrated KVM, the CyberView K123 series is sure to handle critical needs in datacenters or limited space server rooms and IT closets. In instances where a rack side is placed against a wall, the K123 allows the user to be positioned facing the wall comfortably rather than snugged up against it.

Austin Hughes CyberView K123 Rack Mounted

K123 Features and Benefits

  • 1U 23" 4K LED LCD console drawer
  • 3840 x 2160 native resolution / 1.07B colors ( 10-bit )
  • 1920 x 1080 & 1920 x 1200 resolution support
  • Display port 1.2 video input / USB KB / MS
  • 104-key keyboard with either touchpad or trackball options
  • Built-in dual stereo speakers
  • Enhanced aesthetics with new molded front panel and 2-point lock
  • 6ft combo cable included
  • Modular for a highly customizable rack console - integrated KVM, peripherals & more
  • Combo interface for PS/2 or USB input

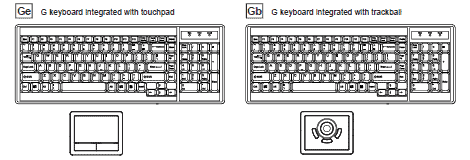

K123 Trackpad or Trackball Options

Optional Configurations (Contact us for availability)

  • Front USB hub port for device access
  • HDMI 2.0 (HDCP 2.2) video input
  • 3G / HD / SD-SDI Broadcast-grade input
  • MAC or SUN Micro keyboard options available
  • DC Power: 12, 24, 48, 125 V DC
  • Multiple Integrated KVM Switch options

K123 Package Contents

CyberView K123 Package Contents
  • (1) K123 Console Drawer
  • (1) EKC-2 6ft DisplayPort USB keyboard mouse cable
  • (1) Power cord
  • (8) M6 screw, cage nut & cup washer
  • (1) 2-year standard warranty ( upgradable up to 5 years )

K123 Resources

CyberView K123 Diagram K123 Brochure (PDF)
K123 Manual (PDF)
K123 Integrated KVM Manuals (Link)

Cyberview K123 Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console1.73 x 17.4 x 25.6 in.
(44 x 442 x 650 mm.)
Console w/ KVM1.73 x 17.4 x 29.5 in.
(44 x 442 x 750 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM
5.5 x 23.4 x 35.8 in.
(140 x 595 x 910 mm.)
Net Weight
Single Console33.7 lbs. (15.3 kg)
Console w/ KVM35.4 lbs. (16.1 kg)
Gross Weight
Single Console42.9 lbs. (19.5 kg)
Console w/ KVM48.4 lbs. (22 kg)
Mounting Distance
Single Console26 ~ 35 inch
(660 ~ 890 mm )
Console w/ KVM26 ~ 38.2 inch
(660 ~ 970 mm )
Console Ports
Video InputDisplay port 1.2
KB / MS USB type B
DP console 6ft cable : CP-6 Drawer end : DP + USB type B ( KB / MS )
Server end : DP + USB type A
LCD Screen
LCD panel size ( diagonal )23.8"
Backlight typeLED
Native resolution3840 x 2160
Brightness (cd/m2)310
Colors1.07 Billion, 10-bit
Contrast Ratio (typ)1000 : 1
Viewing angle ( L/R/U/D 89/89/89/89
Response time ( ms )25
Dot pitch ( mm )0.13725
Display area ( mm )527.04H x 296.46V
Surface treatmentAnti-glare
Surface hardness3H
MTBF (hrs)30,000
Audio Option
Speaker2x 2W (Dual Stereo)
Input Connector3.5mm stereo jack
Input Impedance / Power level 30Ω / 750mV
Output Connector3.5mm stereo jack
Output Impedance / Power level 30Ω / 2.8V
Power
Power InputAuto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen onMax. 45W / Max. 54W
Power saving modeMax. 9W / Max. 18W
Power button onMax. 2W / Nil
Environmental
Operating Temperature0 to 55°C Degree
Storage Temperature-20 to 60°C Degree
Operating Humidity20~90%, non-condensing
Relative Humidity5~90%, non-condensing
Operating Altitude16,000 ft
Non-operating Altitude40,000 ft
Shock 10G acceleration (11ms duration)
Vibration10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMCFCC & CE certified
SafetyCE / LVD certified
EnvironmentRoHS2 & REACH compliant

K123 models with Integrated KVM Switch (Contact us for pricing / availability)

Austin Hughes CyberView K123 with DisplayPort KVM
DisplayPort KVM
Local UserExtendedIP12-Port
100K123-1201P
101K123-IP1202P
110K123-1202P
