1U 19" Widescreen Rack Mount Monitor Keyboard Drawer w/ Touchpad or Trackball

W119

$727.00
Model: W119
  • + Compare Family
FREE Shipping on orders over $100

The W119 is a 1U Rackmount LCD Monitor with 19" LCD. The keyboard is a 104 key notepad keyboard with touchpad or trackball.

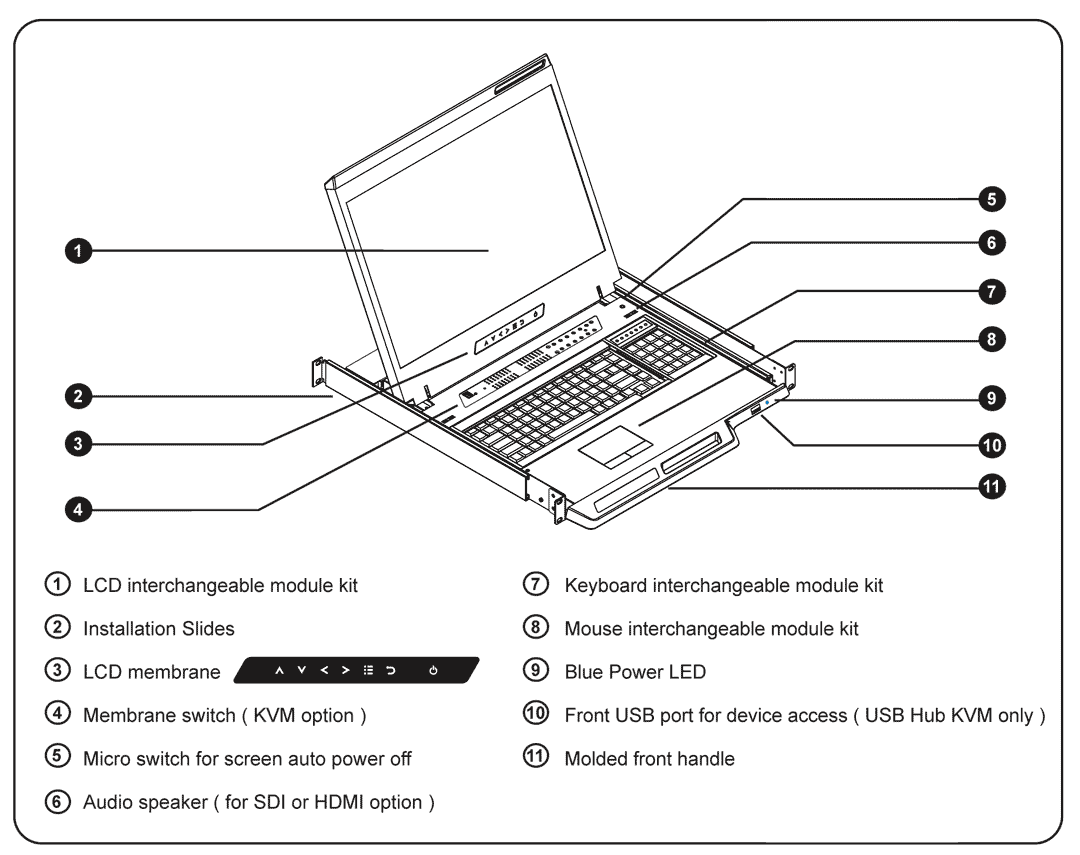

Austin Hughes CyberView W119 Diagram

W119 Features & Benefits:

  • 1U 19" widescreen LCD console drawer up to 1440 x 900
  • 104-key keyboard with either touchpad or trackball
  • New enhanced aesthetics with molded front handle
  • Short depth design of 460mm ( 18.1" ) only
  • Front USB port for device access ( USB Hub KVM only )
  • 2 post rack mounting available

Optional Configurations (Contact us for availability)

  • Front USB hub port for device access
  • HDMI 1.2 video input
  • 3G / HD / SD-SDI Broadcast-grade input
  • S-Video + Composite ( BNC )
  • Audio input & output
  • MAC or SUN Micro keyboard options available
  • DC Power: 12, 24, 48, 125 V DC
  • 2-post rack mounting brackets ( ORB-2.1 )
  • Multiple Integrated KVM Switch Options

W119 Package Contents

CyberView W119 Package Contents
  • (1) W119 Console Drawer
  • (1) CX-6 6ft DVI-D console cable (or optional CB-6 6ft VGA console cable )
  • (1) Power cord
  • (8) M6 screw, cage nut & cup washer
  • (1) 2-year standard warranty ( upgradable up to 5 years )

W119 Resources

CyberView W119 Diagram W119 Brochure (PDF)
W119 Manual (PDF)
W119 Integrated KVM Manuals (Link)

W119 Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console1.73 x 17.4 x 18.1 in.
(44 x 442 x 460 mm.)
Console w/ KVM1.73 x 17.4 x 22.8 in.
(44 x 442 x 580 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM
5.5 x 23.2 x 31.8 in.
(140 x 595 x 808 mm.)
Net Weight
Single Console25.3 lbs. (11.5 kg)
Console w/ KVM28 lbs. (12.5 kg)
Gross Weight
Single Console35.2 lbs. (16 kg)
Console w/ KVM39.8 lbs. (18.1 kg)
Mounting Distance
Single Console18.5 ~ 27.6 inch
(470 ~ 700 mm)
Console w/ KVM18.5 ~ 31.5 inch
(470 ~ 800 mm)
Console Ports
Video InputVGA + DVI-D single link
Video OptionHDMI 1.2 / HDCP 1.1
S-Video ( 4-pin ) - NTSC & PAL
Composite ( BNC ) - NTSC & PAL
KB / MS Combo ( USB or PS2 )
VGA console 6ft cable (CB-6)Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A
LCD Screen
LCD panel size ( diagonal )19"
Backlight typeCCFL
Native resolution1440 x 900
Brightness (cd/m2)300
Colors16.7 M
Contrast Ratio (typ)1000 : 1
Viewing angle ( L/R/U/D ) 80/80/80/80
Viewing angle (H x V) 160° x 160°
Response time ( ms )5
Dot pitch ( mm )0.2835
Display area ( mm )408.24H x 255.15V
Surface treatmentHaze 25%, Hard-coating
Surface hardness3H
MTBF (hrs)50,000
Audio Option
Speaker2x 2W (Dual Stereo)
Input Connector3.5mm stereo jack
Input Impedance / Power level 30Ω / 750mV
Output Connector3.5mm stereo jack
Output Impedance / Power level 30Ω / 2.8V
Power
Power InputAuto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen onMax. 25W / Max. 55W
Power saving modeMax. 4W / Max. 34W
Power button onMax. 1W / Nil
Environmental
Operating Temperature0 to 55°C Degree
Storage Temperature-20 to 60°C Degree
Operating Humidity20~90%, non-condensing
Relative Humidity5~90%, non-condensing
Operating Altitude16,000 ft
Non-operating Altitude40,000 ft
Shock 10G acceleration (11ms duration)
Vibration10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMCFCC & CE certified
Safetyc UL us & CE / LVD certified
EnvironmentRoHS2 & REACH compliant

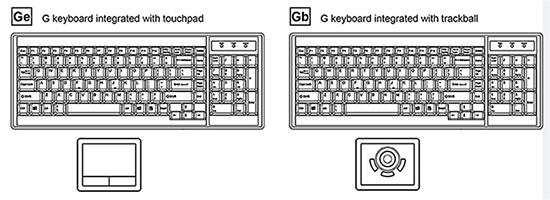

The W119 series is also known as the W-119. The W119e comes with an integrated touchpad, while the W119b comes with an integrated trackball.


W119 models with Integrated KVM Switch (Contact us for pricing / availability)

Austin Hughes CyberView W119 with Matrix CAT6 KVM
Matrix CAT6 KVM
Local UserExtendedIP8-Port16-Port32-Port
111-W119-MUIP1613W119-MUIP3213
121-W119-MUIP1614W119-MUIP3214
112-W119-MUIP1624W119-MUIP3224
110-W119-MU1602W119-MU3202
120-W119-MU1603W119-MU3203
130-W119-MU1604W119-MU3204

Austin Hughes CyberView W119 with Combo CAT6 KVM
CAT6 KVM
Local UserExtendedIP8-Port16-Port32-Port
101W119-UIP802W119-UIP1602W119-UIP3202
110W119-U802W119-U1602W119-U3202
100W119-U801W119-U1601W119-U3201

Austin Hughes CyberView W119 with DVI-D KVM
DVI-D KVM
Local UserExtendedIP12-Port
100W119-1201D

Austin Hughes CyberView W119 with Matrix VGA DB-15 KVM
Matrix VGA DB-15 KVM
Local UserExtendedIP8-Port16-Port32-Port
111W119-MIP813W119-MIP1613-
121W119-MIP814W119-MIP1614-
112W119-MIP824W119-MIP1624-
110W119-M802W119-M1602-
120W119-M803W119-M1603-
130W119-M804W119-M1604-

Austin Hughes CyberView W119 with VGA DB-15 KVM
VGA DB-15 KVM
Local UserExtendedIP8-Port16-Port32-Port
101W119-IP802W119-IP1602-
110W119-802W119-1602-
100W119-S801W119-S1601-

Austin Hughes CyberView W119 with USB HUb VGA DB-15 KVM
VGA DB-15 KVM with USB Hub
Local UserExtendedIP8-Port16-Port32-Port
101W119-IP802HW119-IP1602H-
110W119-802HW119-1602H-
100W119-801HW119-1601H-

Austin Hughes CyberView W119 with PS2 DB-15 KVM
VGA PS/2 KVM
Local UserExtendedIP8-Port16-Port32-Port
100W119-801W119-1601-
Question: Good afternoon, is it possible to have the keyboard also with German and French layout?
Answer: Thank you for your inquiry,

The CyberView W119 console is not modular, but the similar Raloy RWX119 is offered in 13 separate international keyboard layouts (including German and French keyboard layouts).

To order the RWX119 with a German or French keyboard, please feel free to contact your KVM Switches Online sales representative.


Question: Will this work with Blackbox DCX3000-DVR?
Answer: Thank you for your inquiry,

The W119 should indeed be compatible with the BlackBox DCX3000-DVR remote user station using DVI and USB-HID outputs.

To support 3.5mm audio, please make sure to select the [-AU] audio option for the W119 as well.

Question: I have used the W119e, but have ordered a W119e with HDMI option. The spec on website and brochure indicates the Cyberview W119 (single console) has a depth of 460mm. Would you please confirm if the W119 with HDMI option has the same depth (460mm)?
Answer: Thank you for your inquiry,

It's a great question; Unit depth is different, W119 with HDMI is 500mm (19.7").
