1U 19" LCD keyboard drawer with true optical mouse

RKP9

$902.00
Model: 19"
  • 17"
  • 19"
  • + Compare Family
FREE Shipping on orders over $100

The RKP9 is a 1U 19" LCD keyboard drawer with true optical mouse.

Austin Hughes CyberView RKP9 Diagram

RKP9 Features, & Benefits

  • Multi-user Matrix KVM with either 16 or 32 ports in 1U
  • Cost efficient Combo KVM integration
  • "One man" installation slides for easy, quick installation
  • 1280 x 1024 native resolution / 16.7M colors
  • Mix PS/2, USB & SUN with Multi-Platform switch capability
  • Secure remote user access across the world wide web
  • 1U rackmount drawer with either 19" LCD
  • Combo interface either PS/2 or USB input to the LCD drawer
  • Multiple keyboard language selections with a true optical mouse
  • Slide rails with fixed positions to prevent drawer movement when typing
  • Enhanced aesthetics with new molded front panel and two point lock

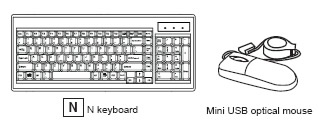

RKP-9 104-key Keyboard & Mini Optical Mouse RKP-9 Dimensions

Optional Configurations (Contact us for availability)

RKP9 Package Contents

CyberView RKP9 Package Contents
  • (1) RKP9 Console Drawer
  • (1) WOM-01 wired mini USB optical mouse
  • (1) CB-6 6ft VGA console cable (or optional for PS/2 KB / MS : CE-6 6ft Combo KVM cable )
  • (1) Power cord
  • (8) M6 screw, cage nut & cup washer
  • (1) 2-year standard warranty ( upgradable up to 5 years )

RKP9 Resources

CyberView RKP9 Diagram RKP9 Brochure (PDF)
RKP9 Manual (PDF)
RKP9 Integrated KVM Manuals (Link)

RKP9 Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console1.73 x 17.4 x 27.6 in.
(44 x 442 x 700 mm.)
Console w/ KVM1.73 x 17.4 x 27.6 in.
(44 x 442 x 700 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM
5.5 x 23.4 x 35.8 in.
(140 x 595 x 910 mm.)
Net Weight
Single Console33.7 lbs. (15.3 kg)
Console w/ KVM44.2 lbs. (20.1 kg)
Gross Weight
Single Console35.9 lbs. (16.3 kg)
Console w/ KVM48.6 lbs. (22.1 kg)
Mounting Distance
Single Console / Console with KVM28 ~ 36.2 inch
(710 ~ 920 mm)
Console Ports
Video InputVGA
Video OptionDVI-D single link
HDMI 1.2 / HDCP 1.1
S-Video ( 4-pin ) - NTSC & PAL
Composite ( BNC ) - NTSC & PAL
KB / MS Combo ( USB or PS2 )
VGA console 6ft cable (CB-6)Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A
LCD Screen
LCD panel size ( diagonal )19"
Backlight typeLED
Native resolution1280 x 1024
Brightness (cd/m2)250
Colors16.7 M
Contrast Ratio (typ)1000 : 1
Viewing angle ( L/R/U/D ) 85/85/80/80
Viewing angle (H x V) 170° x 160°
Response time ( ms )5
Dot pitch ( mm )0.294
Display area ( mm )376.32H x 270.33V
Surface treatmentHaze 25%, Hard-coating
Surface hardness3H
MTBF (hrs)30,000
Audio Option
Speaker2x 2W (Dual Stereo)
Input Connector3.5mm stereo jack
Input Impedance / Power level 30Ω / 750mV
Output Connector3.5mm stereo jack
Output Impedance / Power level 30Ω / 2.8V
Power
Power InputAuto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen onMax. 25W / Max. 55W
Power saving modeMax. 4W / Max. 34W
Power button onMax. 1W / Nil
Environmental
Operating Temperature0 to 55°C Degree
Storage Temperature-20 to 60°C Degree
Operating Humidity20~90%, non-condensing
Relative Humidity5~90%, non-condensing
Operating Altitude16,000 ft
Non-operating Altitude40,000 ft
Shock 10G acceleration (11ms duration)
Vibration10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMCFCC & CE certified
SafetyCE / LVD certified
EnvironmentRoHS2 & REACH compliant

the RKP9 is also known as the RKP-9


RKP9 models with Integrated KVM Switch (Contact us for pricing / availability)

Austin Hughes CyberView RKP9 with Matrix CAT6 KVM
Matrix CAT6 KVM
Local UserExtendedIP8-Port16-Port32-Port
111-RKP9-MUIP1613RKP9-MUIP3213
121-RKP9-MUIP1614RKP9-MUIP3214
112-RKP9-MUIP1624RKP9-MUIP3224
110-RKP9-MU1602RKP9-MU3202
120-RKP9-MU1603RKP9-MU3203
130-RKP9-MU1604RKP9-MU3204

Austin Hughes CyberView RKP9 with Combo CAT6 KVM
CAT6 KVM
Local UserExtendedIP8-Port16-Port32-Port
101RKP9-UIP802RKP9-UIP1602RKP9-UIP3202
110RKP9-U802RKP9-U1602RKP9-U3202
100RKP9-U801RKP9-U1601RKP9-U3201

Austin Hughes CyberView RKP9 with DVI-D KVM
DVI-D KVM
Local UserExtendedIP12-Port
100RKP9-1201D

Austin Hughes CyberView RKP9 with Matrix VGA DB-15 KVM
Matrix VGA DB-15 KVM
Local UserExtendedIP8-Port16-Port32-Port
111RKP9-MIP813RKP9-MIP1613-
121RKP9-MIP814RKP9-MIP1614-
112RKP9-MIP824RKP9-MIP1624-
110RKP9-M802RKP9-M1602-
120RKP9-M803RKP9-M1603-
130RKP9-M804RKP9-M1604-

Austin Hughes CyberView RKP9 with VGA DB-15 KVM
VGA DB-15 KVM
Local UserExtendedIP8-Port16-Port32-Port
101RKP9-IP802RKP9-IP1602-
110RKP9-802RKP9-1602-
100RKP9-S801RKP9-S1601-

Austin Hughes CyberView RKP9 with USB HUb VGA DB-15 KVM
VGA DB-15 KVM with USB Hub
Local UserExtendedIP8-Port16-Port32-Port
101RKP9-IP802HRKP9-IP1602H-
110RKP9-802HRKP9-1602H-
100RKP9-801HRKP9-1601H-

Austin Hughes CyberView RKP9 with PS2 DB-15 KVM
VGA PS/2 KVM
Local UserExtendedIP8-Port16-Port32-Port
100RKP9-801RKP9-1601-
