1U 17" Ultra Short Depth 4K LCD Console Drawer

K1417

$2,412.00$2,114.00
Save $298.00
Model: 4K UHD
FREE Shipping on orders over $100

The new CyberView K1417 is a Ultra Short Depth 1U 17" 4K Rack Mount Monitor Drawer. RKP14 Series is a combination of keyboard, mouse and monitor with KVM switch into a drawer, with features such as flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control multiple PCs.

Austin Hughes CyberView K1417 Rack Mounted

K1417 Features and Benefits

  • 1U 17" 4K LCD console drawer
  • 3840 x 2160 native resolution / 16.7M colors ( 8-bit )
  • 1920 x 1080 & 1920 x 1200 resolution support
  • Display port 1.2 video input / USB KB / MS
  • Ultra Short depth design of 400mm (15.7 in.)
  • Ideal for open rack / short depth rack
  • 104-key keyboard with either touchpad or trackball options
  • One Man installation design
  • Enhanced aesthetics with new molded front panel and 2-point lock
  • 6ft combo cable included
  • Modular for a highly customizable rack console - integrated KVM, peripherals & more

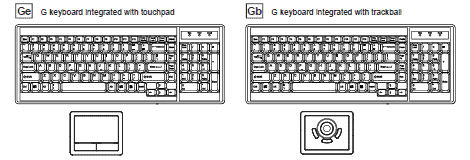

K1417 Trackpad or Trackball Options

Optional Configurations (Call for availability)

  • HDMI 2.0 (HDCP 2.2) video input
  • 3G / HD / SD-SDI Broadcast-grade input
  • DC Power: 12, 24, 48, 110-125 V DC
  • Multiple integrated KVM Switch options
  • MAC or SUN Micro keyboard options available
  • 2-post rack mounting brackets ( ORB-2.1 )
  • Touchscreen: Resistive 1-pt

K1417 Package Contents

CyberView K1417 Package Contents
  • (1) K1417 Console Drawer
  • (1) CP-6 6ft DisplayPort + USB console cable
  • (1) 4A Power adapter & Power cord
  • (8) M6 screw, cage nut & cup washer
  • (1) 2-year standard warranty ( upgradable up to 5 years )

K1417 Resources

CyberView K1417 Diagram K1417 Brochure (PDF)
K1417 Manual (PDF)
K1417 Integrated KVM Manuals (Link)

Cyberview K1417 Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console1.73 x 17.4 x 15.7 in.
(44 x 442 x 400 mm.)
Console w/ KVM1.73 x 17.4 x 18.1 in.
(44 x 442 x 460 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM		5.5 x 23.2 x 24.5 in.
(140 x 590 x 622 mm.)
Net Weight
Single Console19.1 lbs. (8.7 kg)
Console w/ KVM20.9 lbs. (9.5 kg)
Gross Weight
Single Console30.2 lbs. (13.7 kg)
Console w/ KVM33.9 lbs. (15.4 kg)
Mounting Distance
Single Console16.1 ~ 25.2 inch
(410 ~ 640 mm)
Console w/ KVM16.1 ~ 26.8 inch
(410 ~ 680 mm)
Console Ports
Video InputDisplay port 1.2
Video OptionHDMI 2.0 / HDCP 2.2
KB / MS USB type B
DP console 6ft cable : CP-6 Drawer end : DP + USB type B ( KB / MS )
Server end : DP + USB type A
LCD Screen
LCD panel size ( diagonal )17.3"
Backlight typeLED
Native resolution3840 x 2160
Brightness (cd/m2)400
Colors16.7 M, 8-bit
Contrast Ratio (typ)1000 : 1
Viewing angle ( L/R/U/D 89/89/89/89
Response time ( ms )30
Dot pitch ( mm )0.0995
Display area ( mm )382.12H x 214.94V
Surface treatmentAnti-glare
Surface hardness3H
MTBF (hrs)20,000
Audio Option
Speaker2x 2W (Dual Stereo)
Input Connector3.5mm stereo jack
Input Impedance / Power level 30Ω / 750mV
Output Connector3.5mm stereo jack
Output Impedance / Power level 30Ω / 2.8V
Power
Power InputAuto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen onMax. 29W / Max. 38W
Power saving modeMax. 9W / Max. 18W
Power button onMax. 2W / Nil
Environmental
Operating Temperature0 to 55°C Degree
Storage Temperature-20 to 60°C Degree
Operating Humidity20~90%, non-condensing
Relative Humidity5~90%, non-condensing
Operating Altitude16,000 ft
Non-operating Altitude40,000 ft
Shock 10G acceleration (11ms duration)
Vibration10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMCFCC & CE certified
SafetyCE / LVD certified
EnvironmentRoHS2 & REACH compliant
