1U 17" 4K LCD console drawer


Model: K117
  • + Compare Family
FREE Shipping on orders over $100

The new CyberView K117 is a 1U 4K 17" Rack Mount Monitor Drawer. D Series is a combination of keyboard, mouse and monitor with KVM switch into a drawer, with features such as flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control multiple PCs. The Dual Slide technology allows the LCD to be left up/open when the rack door is closed.

Austin Hughes CyberView K117 Rack Mounted

K117 Features and Benefits

  • 1U 17" 4K LCD console drawer
  • 3840 x 2160 native resolution / 16.7M colors ( 8-bit )
  • 1920 x 1080 & 1920 x 1200 resolution support
  • Display port 1.2 video input / USB KB / MS

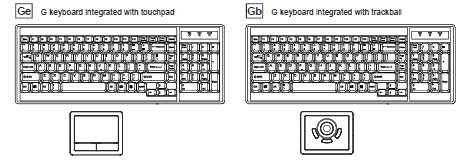

  • 104-key keyboard with either touchpad or trackball options
  • Built-in dual stereo speakers
  • Short depth design of 480mm
  • One Man installation design
  • Enhanced aesthetics with new molded front panel
  • Modular for a highly customizable rack console - integrated KVM, peripherals & more
  • 6ft combo cable included
  • 2-year standard warranty ( upgradable up to 5 years )

Optional Configurations (Contact us for availability)

  • Front USB hub port for device access
  • HDMI 2.0 (HDCP 2.2) video input
  • 3G / HD / SD-SDI Broadcast-grade input
  • MAC or SUN Micro keyboard options available
  • DC Power: 12, 24, 48, 125 V DC
  • Multiple Integrated KVM Switch options
  • Additional languages supported
  • Touchscreen: Resistive 1-pt, Projective 10-pt

K117 Package Contents

CyberView K117 Package Contents
  • (1) K117 Console Drawer
  • (1) CP-6 6ft DisplayPort + USB console cable
  • (1) Power cord
  • (8) M6 screw, cage nut & cup washer
  • (1) 2-year standard warranty ( upgradable up to 5 years )

K117 Resources

CyberView K117 Diagram K117 Brochure (PDF)
K117 Manual (PDF)
K117 Integrated KVM Manuals (Link)

Cyberview K117 Specifications

Product Dimensions (H x W x D)
Single Console1.73 x 17.4 x 25.6 in.
(44 x 442 x 650 mm.)
Console w/ KVM1.73 x 17.4 x 25.6 in.
(44 x 442 x 650 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM
5.5 x 23.4 x 33.9 in.
(140 x 595 x 860 mm.)
Net Weight
Single Console24 lbs. (10.9 kg)
Console w/ KVM26.6 lbs. (12.1 kg)
Gross Weight
Single Console34.8 lbs. (15.8 kg)
Console w/ KVM39.8 lbs. (18.1 kg)
Mounting Distance
Single Console19.3 ~ 28.3 inch
(490 ~ 720 mm)
Console w/ KVM19.3 ~ 31.5 inch
(490 ~ 800 mm)
Console Ports
Video InputDisplay port 1.2
Video OptionHDMI 2.0 / HDCP 2.2
KB / MS USB type B
DP console 6ft cable : CP-6 Drawer end : DP + USB type B ( KB / MS )
Server end : DP + USB type A
LCD Screen
LCD panel size ( diagonal )17.3"
Backlight typeLED
Native resolution3840 x 2160
Brightness (cd/m2)310
Colors16.7 M, 8-bit
Contrast Ratio (typ)1000 : 1
Viewing angle ( L/R/U/D )89/89/89/89
Response time ( ms )30
Dot pitch ( mm )0.0.0995
Display area ( mm )382.12H x 214.94V
Surface treatmentAnti-glare
Surface hardness3H
MTBF (hrs)20,000
Audio Option
Speaker2x 2W (Dual Stereo)
Input Connector3.5mm stereo jack
Input Impedance / Power level 30Ω / 750mV
Output Connector3.5mm stereo jack
Output Impedance / Power level 30Ω / 2.8V
Power InputAuto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen onMax. 29W / Max. 38W
Power saving modeMax. 9W / Max. 18W
Power button onMax. 2W / Nil
Operating Temperature0 to 55°C Degree
Storage Temperature-20 to 60°C Degree
Operating Humidity20~90%, non-condensing
Relative Humidity5~90%, non-condensing
Operating Altitude16,000 ft
Non-operating Altitude40,000 ft
Shock 10G acceleration (11ms duration)
Vibration10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMCFCC & CE certified
SafetyCE / LVD certified
EnvironmentRoHS2 & REACH compliant

K117 models with Integrated KVM Switch (Contact us for pricing / availability)

Austin Hughes CyberView K117 with DisplayPort KVM
DisplayPort KVM
Local UserExtendedIP12-Port
100K117-1201P - Coming Soon
101K117-IP1202P - Coming Soon
110K117-1202P - Coming Soon
Question: What is the ECCN and applicable license exception for exports of the K117 LCD console drawer?
Answer: Thank you for your inquiry,

Export Control Classification Number (ECCN) for the CyberView K117 is 4A994, and the HS code is 8528.51.1000.

Question: What are the Export Contro Classification Number and applicable license exception according to US EAR for exports of the K117 LCD console drawer?
Answer: Thank you for your inquiry,

Export Control Classification Number (ECCN) for the CyberView K117 is 4A994.

Question: Does this support UHD @60Hz?
Answer: Thank you for your inquiry,

It does; The K117 supports up to 3840 x 2160 (4K UHD) @ 60Hz.

Please let us know if there is anything else we can help you with!
