Adder AdderLink INFINITY Dual Extender Receiver

ALIF2000R-US

$1,550.00$1,472.50
Save $77.50

Discontinued
For upgrade or replacement options: Contact Us

Series: INFINITY Dual
For Government Pricing
Contact Us

ADDERLink Infinity ALIF2000R is a high performance Dual-link or Dual-monitor DVI, USB and Audio Receiver for the Adder Infinity Digital KVM Extension / Matrix solution. ALIF2000R receiver requires at least one ALIF2002T transmitter to operate.

Part of the ADDERLink INFINITY series, the ADDERLink Infinity Dual is a high performance KVM solution that enables you to locate your critical computing hardware in a secure and temperature controlled environment, isolated from the user work station. Configurable as a dual link or dual head, this extender supports either two single link DVI-D resolutions to a maximum of 1920 x 1200 at 60Hz or one dual link to a maximum of 2560x1600 @ 60Hz, up to 6.21mi (10km) via interchangeable CatX and Fiber SFP modules. This KVM extender can be used as a point-to-point extender, or integrated into a wider matrix system when combined with the ADDERLink INFINITY Manager (A.I.M.).

With intelligent video encoding this product has the capability to process full screen moving video in real time. You can configure your network topology to best suit your needs by extending one computer to one user by connecting your receiver and transmitter via CATx cable or fiber. Distance can be unlimited with the use of daisy chaining standard network cables and switches that will deliver IP traffic up to 330 feet (100 meters) away each. Because of the efficient manner in which ALIF 2002T constructs data for IP transmission you can make use of standard wireless routing to connect these receiver and transmitter units to your network.

ALIF2000R Receiver
ALIF2000R Receiver

See Detailed Layout

  • Dual-Link (2K resolution) or Dual-head (Dual-monitor) DVI configuration
  • 2560 x 1600 @ 60Hz (24 bits per color) maximum resolution with minimal lag
  • Flexible solution: from point-to-point extender to an infinitely extensible matrix used for IT administration or broadcast
  • Unlimited extension via swappable SFP Modules:
    • 330ft (100m) extension distance on single CATx
    • 1,640ft (500m) to 6.21mi (10km) extension over fiber
    • Unlimited extension via IP network or by chaining units
  • USB 2.0 with Emulation and class control: for faster keyboard and mouse switching plus support for USB mass storage, tablet, touch and more
  • Delivers uncompressed spatially-lossless video & digital stereo audio with option to compress video to minimize bandwidth usage
  • Built-in security measures: compliant with universal enterprise grade security standards (AES 256 bit encryption and RSA 2048 bit public key authentication)

Adder ALIF2000R Features

  • Adder ALIF2000R Use Case

    Infinite Flexibility

    With the addition of AdderLink Infinity management system (A.I.M.), you can turn multiple point-to-point extenders into a truly scalable digital KVM matrix system that allows any workstation to link with any computer connected to the network.

    • Point-to-point extension (local / over-IP)
    • AV / KVM Switch multi-point matrix (over-IP)
    • Sharing a single target (over-IP)
    • Multicasting to many receivers (over-IP)

    Learn more

  • Adder ALIF2000R  Perfect digital IP video broadcast, real time control

    Perfect digital video, real time control

    Uncompressed video extension and pixel perfect digital video up to 24 bits per color at a maximum of 1920x1200 over 60hz with real time control. Using a spatially-lossless encoding system, with 1:1 pixel mapping, AdderLink Infinity provides pixel perfect and color accurate video with no artefacts. The digital video you receive is the same as the digital video leaving the remote computer.


  • Adder Multimode SFP Module

    Single CATx or Fiber cable with immunity from interference

    The AdderLink Infinity units were designed from the outset around a highly robust signaling method. This vital core asset is what gives you the freedom to use the full variety of cable links that you typically find within an average structured cabling system. The result is that you can achieve reliable links, regardless of whether the cables are CAT5e, CAT6 or CAT7. The AdderLink Infinity dual also offers the option of up to 6.21mi (10km) distances with fiber.

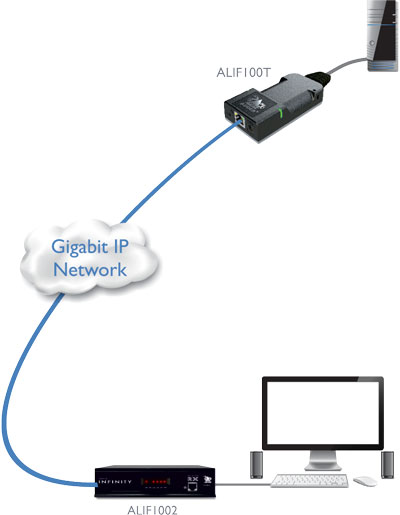

  • Adder ALIF2000R Extension Over IP Diagram

    Unlimited extension distances

    Extension distance is not limited to a single 330 foot (100 meter) cable length - If you need to extend further, simply add a 1GbE network device to achieve an additional 330 feet (100 meters). This can be repeated many times. The units are also fitted with SFP cages to accept fiber optic transceivers which enable much greater extension distances.


  • Adder ALIF2000R USB 2.0 with emulation and class control

    USB 2.0 with emulation and class control

    Enables connection of USB devices from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers, alongside mass storage devices. True USB Emulation Technology allows for faster keyboard and mouse switching. For applications where security is of high importance, the system has the ability to disable the use of non-HID devices, meaning there is no need to physically block USB ports to prevent the use of mass storage devices.


  • Adder ALIF2000R Enterprise-grade security

    Enterprise-grade security

    Adder Infinity units have built-in security measures compliant with universal enterprise grade security standards inlcuding AES 256 bit encryption and RSA 2048 bit public key authentication.

  • Adder ALIF2000R EDID Management - Ensure Perfect Match Between Source & Display

    Intelligent EDID management

    Intelligent EDID management allows the true characteristics of the monitor to be passed back to the computer. This ensures perfect video display without the additional configuration.

  • Adder ALIF2000R Redundant network

    Redundant network operation

    The units are able to detect whether the network is in operation and can automatically change to its second network port if it detects a failure


  • Adder ALIF2000R - Mac + Dithered Video Support

    Support for MacPro (Dithered Video)

    Some graphics cards use a technique called dithering to give the appearance of a deeper color depth than is actually the case. As a result, dithering can significantly increase the normal video data rates. ALIF2002T (transmitter) has a feature called Magic Eye which supports dithering without allowing it to degrade overall link performance.

  • Adder ALIF2000R Plug and Play

    Plug and Play

    AdderLink Infinity extender devices are delivered in a zero configuration state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.

  • Adder ALIF2000R Mounting

    Flexible mounting options

    Adder Infinity Dual units can be rack mounted (1 unit in 1U with RMK4S, or 2 units side-by-side in 1U with RMK4D-R2), left on a desktop, wall mounted (RMKV4), or attached to the back of your monitor using a VESA mounting carriage (RMKV4).


ALIF2000R Package Contents

Adder ALIF2000R Package Contents

  1. (1) ALIF2000R Receiver
  2. (1) Power adapter (20W) and country-specific power cord
  3. (4) Self-adhesive rubber feet
  4. (1) Quick start guide and Safety document
  5. (1) 2-Year Limited Warranty & Lifetime World Class Support


Adder ALIF2000R Specifications

Mechanical
Height
1.76 in. (44 mm.)
Width
7.92 in. (198 mm.)
Depth
6 in. (150 mm.)
Weight
2.7 lbs. (1.1 kg.)
Environmental
Operating Temperature
0° to 40° / 32° to 104°
Power
Operating Voltage
5VDC 12.5W output from power adapter
Power Frequency
100-240VAC 50/60Hz
Input
2.5mm DC jack (power adapter included) 0.4A, input to power adapter
Supported Hardware
Computers
DVI (incl. dual head and dual link)
Peripherals
USB, Audio, RS232 - requirement dependent
Standards
Approved Agency
CE, FCC
Connections
Rx Connections
Video: DVI-D x 2, Audio 3.5mm in, Audio 3.5mm out, USB type A x 4, RS232 9 pin D-Type

This part is also known as Adder ALIF2000R-US, ALIF 2000R, ALIF-2000R, and ALIF2002R.
