ADDERLink Dual Link / Dual Head DVI, USB, Audio Extender with VNC

ALIF2112T-US

$1,925.00$1,828.75
Save $96.25
Series: INFINITY Dual 2112T
Unit: ALIF2112T Transmitter with VNC Viewer Access
Video: Dual-monitor DVI up to 1080p, or Dual-link DVI up to 2K
FREE Shipping on orders over $100
For Government Pricing
Contact Us

The ADDERLink INFINITY Dual 2112T Extender Transmitter (ALIF2112T) is a high performance KVM server that can be accessed remotely via IP with a VNC viewer and/or simultaneously with an ADDERLink INFINITY receiver. The INFINITY 2112T includes Dual head or Dual Link DVI, USB and audio which transmits over Gigabit ethernet or Fiber. View pixel-perfect video with a Real VNC viewer, delivered at up to 24 bits per color and at a maximum one monitor resolution of 2560 x 1600 or two monitor resolution of 1920 x 1200.

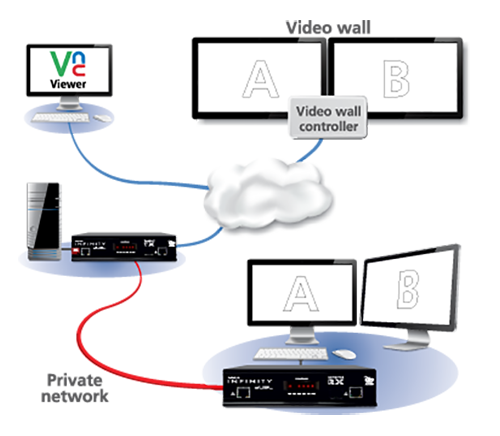

ADDER ALIF2112T Diagram
ADDERLink INFINITY ALIF2112T Diagram

See Detailed Layout

Adder ALIF2112T Features

ALIF2112T base feature set is the same as the AdderLink Infinity dual (ALIF2002T) with the addition of:

  • Integrated remote access: monitor, control and maintain your computers remotely, utilizing RealVNC technology
  • Dual-link (2K resolution) or Dual-head (dual-monitor) DVI configuration
  • View 2560x 1600 or two 1920x 1200 sessions
  • Real VNC server with RFP 3.3 support
  • Up to 256bit AES and RSA 2048 encryption
  • VM support and RS232 for power control
  • Supports 16 users simultaneously
  • Out of band Bios level access
  • USB and Virtual Media Support
  • Ideal for control rooms
  • Compatible with AdderLink Infinity Matrix

Adder ALIF2112T Features

  • Adder ALIF2112T Infinity Flexibility - KVM Extender / Switch / Matrix / Splitter

    Infinite Flexibility

    With the addition of AdderLink Infinity management system (A.I.M.), you can turn multiple point-to-point extenders into a truly scalable digital KVM matrix system that allows any workstation to link with any computer connected to the network.

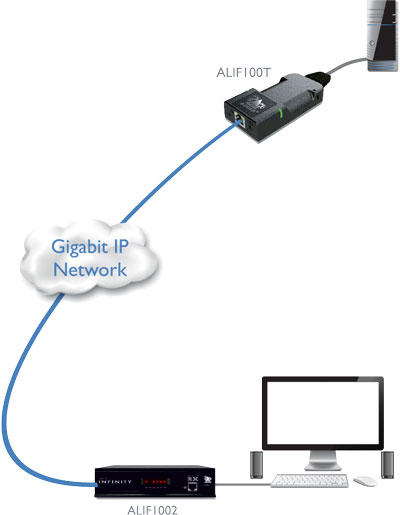

    • Point-to-point extension (local / over-IP)
    • AV / KVM Switch multi-point matrix (over-IP)

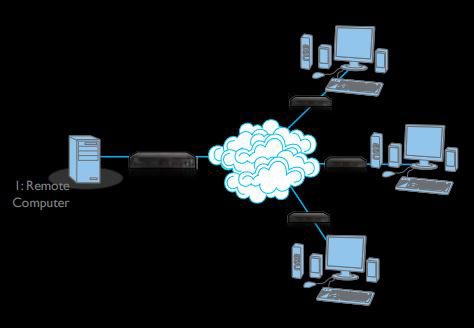

    • Sharing a single target (over-IP)

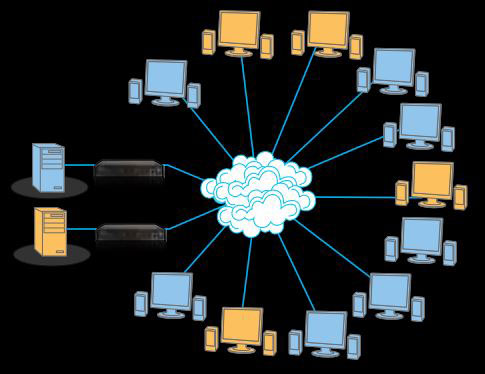

    • Multicasting to many receivers (over-IP)

    Learn more

  • ADDER ALIF2112T RealVNC Diagram

    High video performance over VNC

    The VNC server can be accessed by a standard web browser, but for superior graphical performance, a Real VNC Viewer should be used. Free of the limitations of HTTPS, Real VNC greatly enhances video performance. The unit serves pixel perfect video up to 24bit color at a maximum of 2560x1600 or two at 1920x1200. RFB 4.0, as well as RFB 3.x (3.8, 3.7, & 3.3), are supported for RealVNC or open source VNC viewers.


  • Adder ALIF2112T Remote monitoring, remote control, remote maintenance

    Remote monitoring, remote control, remote maintenance

    View and access your computers remotely, out of band without the need to install software over IP or utilizing VNC technology, provided by one of our technical partners, RealVNC.

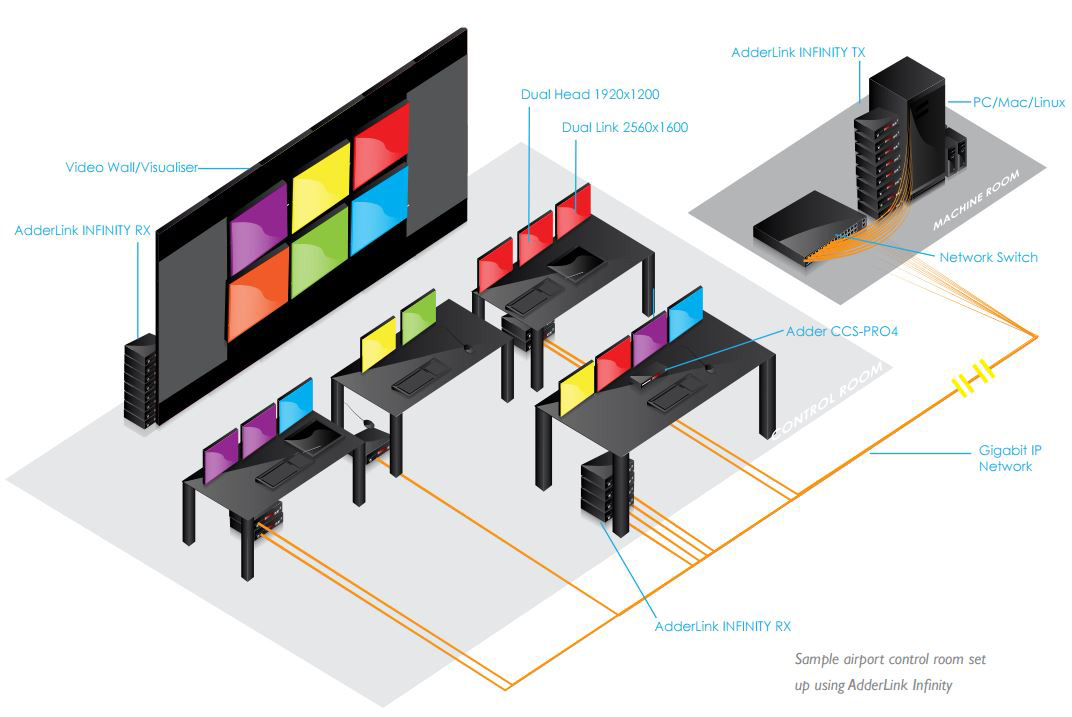

  • Adder ALIF2112T Control Room Diagram

    Ideal for control rooms

    The unit can simultaneously serve a VNC equipped video wall processor and an AdderLink Infinity equipped user station reducing the complexity of control room infrastructure.


  • Adder ALIF2112T Enterprise-grade security

    Enterprise-grade security

    Employing enterprise grade security (using AES 256bit encryption and RSA 2048bit public key authentication) as standard, the unit is further enhanced by the use of Real VNC that allows for the creation of ciphered user communications.


  • Adder ALIF2112T USB & Virtual Media Support

    USB and Virtual Media support

    To transfer files from remote users to controlled computers, the system has been engineered to act as a conduit through which data can be passed. Files can be transferred via IP onto the AdderLink Infinity dual and onto the target computer by means of a USB Virtual Media port.

  • Adder ALIF2112T

    Power control through RS232 serial interface

    The unit has an RS232 port to allow communication to devices like power switches, allowing remote re-booting of the target computer.

  • Adder ALIF2112T User Rights management

    User management

    On the VNC server, you can create up to 16 user profiles with defined access rights. The unit can be accessed by up to 16 users at any one time

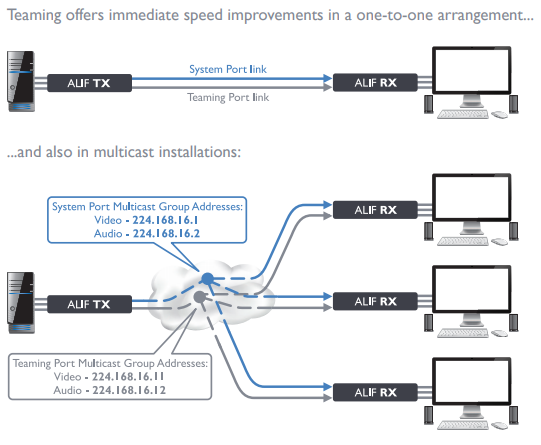

  • Adder ALIF2112T Redundant network

    Redundant network operation

    The units are able to detect whether the network is in operation and can automatically change to its second network port if it detects a failure

  • Adder ALIF2112T Mounting

    Flexible mounting options

    Adder Infinity units can be rack mounted (1 unit in 1U with RMK4S, or 2 units side-by-side in 1U with RMK4D-R2), left on a desktop, wall mounted (RMKV4), or attached to the back of your monitor using a VESA mounting carriage (RMKV4).


ALIF2112T Package Contents

Adder ALIF2112T Package Contents

  1. (1) ALIF2112T Transmitter
  2. (1) 6ft Single link DVI-D to DVI-D video cable
  3. (1) 6ft Combined DVI-D and USB cable
  4. (2) 6.6ft Audio cable (3.5mm stereo jacks)
  5. (1) 6.6ft Serial Null Modem Cable
  6. (1) Power adapter (20W) and country-specific power cord
  7. (4) Self-adhesive rubber feet
  8. (1) Quick start guide and Safety document
  9. (1) 2-Year Limited Warranty & Lifetime World Class Support


Adder ALIF2112T Specifications

Mechanical
Height
1.76 in. (44 mm.)
Width
7.92 in. (198 mm.)
Depth
5.7 in. (145 mm.)
Weight
2.44 lbs. (1.11 kg.)
Environmental
Operating Temperature
0° to 40° / 32° to 104°
Power
Operating Voltage
5VDC 20W output from power adapter
Power Frequency
100-240VAC 50/60Hz, 0.8A
Input
2.5mm DC jack (power adapter included) 0.8A, input to power adapter
Supported Hardware
Computers
DVI (incl. dual head and dual link)
Peripherals
USB, Audio, RS232 - requirement dependent
Standards
Approved Agency
CE, FCC
Connections
Tx Connections
DVI-D x 2, Audio 3.5mm in, Audio 3.5mm out, USB type B, RS232 9 pin D-Type

This part is also known as Adder ALIF2112T-US, ALIF 2112T, and ALIF-2112T.

Question: "RFB 3.3 is supported for open source VNC viewers." does it mean that only RFB 3.3 is supported or can i also use RFB 3.7 or 3.8?
Answer: Thank you for your inquiry,

Adder VNC devices like this ALIF2112T currently use RFB 4.0, which is not open source, but they are also compatible with open source RFB 3.x protocol versions.

The only VNC viewer that is officially supported by Adder is the RealVNC viewer (RVNC). Other open source viewers may work but some features (e.g. single or absolute mouse mode) may not be supported.

Please let us know if there is anything else we can ever help you with!
